MikroTik CubeG-5ac60ay-SA Pro 60GHz Sector Antenna

MikroTik CubeG-5ac60ay-SA Pro 60GHz Sector Antenna

CubeG-5ac60ay-SA

$454.25

Tax included.

8 items available
Select quantity
Description

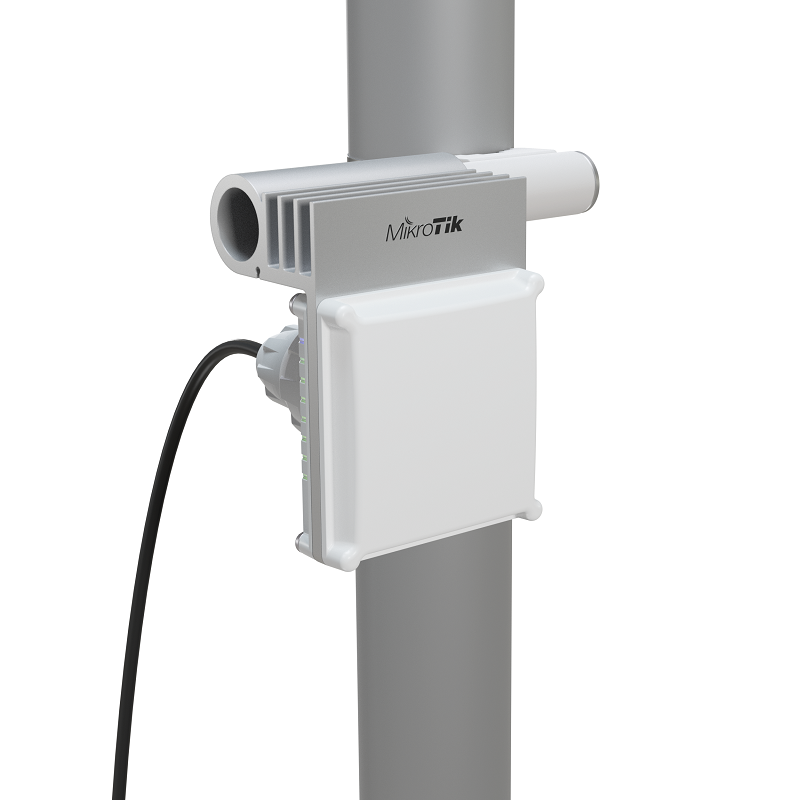

MikroTik CubeG-5ac60ay-SA Pro 60GHz 802.11ay with built in 60 Degree Sector Antenna
MikroTik CubeG-5ac60ay-SA Pro 60GHz Sector Antenna. The Cube 60Pro product line is taking the advantages of 60 GHz networking to the next level – with the 802.11ay standard for even higher distances, stability, speed, and convenience.

If you need to connect multiple devices – take a look at the CubeSA 60Pro ac sector antenna. Reaching distances around 600 meters in point-to-multipoint mode, this device can be very helpful for all kinds of event management: from live shows, festivals, and workshops to construction sites, pop-up vaccination clinics, and so on. No need for complex wired installations in every location – the portable and handy CubeSA 60Pro ac has got you covered! Depending on your setup, the distance can be even greater. For example, with devices like MikroTik nRAY, you can reach up to 800 meters.

The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. But it can sometimes struggle during bad weather conditions. That’s why both Cube 60Pro devices feature an automatic 5 GHz failover. We have added a powerful directional antenna so that the 5 GHz range can keep up with the 60 GHz.

We have upgraded the enclosure to feature a strong metal base – for better mounting and cooling options. The Cube form-factor emerges from pure practicality: it is durable, unobtrusive, and compact.

Features
  • Gigabit Ethernet
  • Powerful quad-core CPU
  • 5 GHz failover
  • Reach greater distance than ever with channel 5 support
  • Improved design and mounting options
  • 60 GHz 802.11ay, backwards compatible with previous 802.11ad products
Details
Product code CubeG-5ac60ay-SA
Wireless 60 GHz standards 802.11ay
Antenna beam width at 60 GHz 60 deg (CubeG-5ac60ay-SA)
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 11.5dBi
10/100/1000 Ethernet ports 1
GNSS standards GPS
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 115 x 211 x 90 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 64 MB
Storage type FLASH
Number of DC inputs 1 (PoE-IN)
Max power consumption 13 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-48 V
IP IP54
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Certification CE, FCC, IC
Details
Power Supply 24V 1.2A DC Power adaptor and RBGPOE Injector included
Pole Mount Included
Warranty

1 Year

Brand

MikroTik

Restock ETA (if applicable)

Product Details
