Name: EH-MK-1ft - Siklu EtherHaul Mounting Kit for 70/80GHz 1 foot Dish Antenna
Brand: Siklu
SKU: EH-MK-1ft
Price: 86.25 NZD
Availability: InStock

EH-MK-1ft - Siklu EtherHaul Mounting Kit for 70/80GHz 1 foot Dish Antenna

EH-MK-1ft

$86.25

Tax included.

2 items available

Select quantity

Description

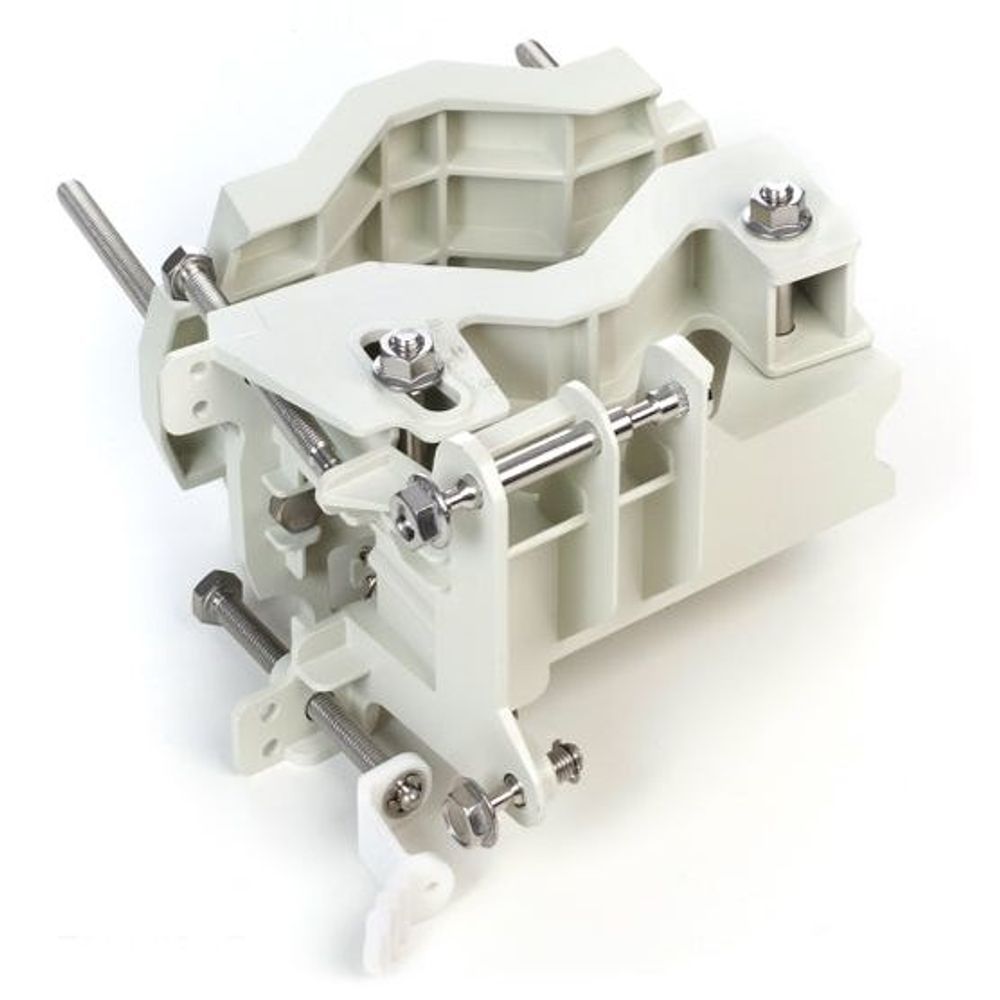

The EH-MK-1ft is Siklu's mounting hardware designed to attach a Siklu 1 foot antenna to a pole. The EH-MK-1ft is easy to deploy, reliable mounting kit designed for installation of Siklu’s E-band ODU while connected to Siklu’s 1 foot antennas.

Features

Works with EH-ANT-1ft-B antenna

Specifications

Details
Product Code	EH-MK-1ft
Mounting Type	Pole mount (center mount)
Pole Diameter	5 cm – 11 cm ( 2inch – 4½inch)
Azimuth Fine Alignment	±8 deg
Elevation Fine Alignment	±16 deg
Azimuth Resolution Step	Continuous
Tilt Resolution Step	Continuous
Weight	1.4 Kg (3 lbs.)
Temperature	-45°C + 55°C (-49°F + 131°F)
Humidity	0-100%
Ice Loading	30 mm (1.18 inch) radial
Salt Fog	IEC 68-2-11 Ka 96 hr
Wind Speed	Survival: 200 km/hr (125 mph), Operational: 160 km/hr (100 mph)
Regulatory Compliance	RoHS , CE
Compatible products	EtherHaul series with 1ft. antennas
