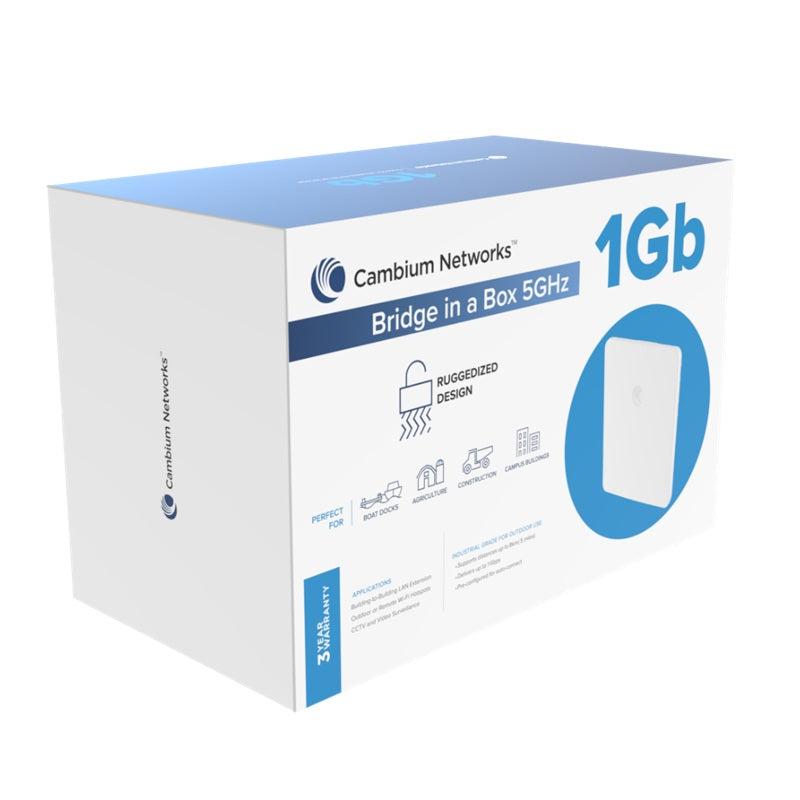

Name: Cambium ePMP Force 4518 5 GHz 1Gbps Wireless Bridge in a Box
Brand: Cambium Networks
SKU: C050940B831
Price: 711.85 NZD
Availability: InStock

Cambium ePMP Force 4518 5 GHz 1Gbps Wireless Bridge in a Box

C050940B831

$711.85

Tax included.

13 items available

Select quantity

Description

Cambium ePMP Bridge in a Box Force 4518 5 GHz (ROW) (ANZ cord)

The Cambium ePMP Force 4518 5 GHz Wireless Bridge in a Box is a pre-paired plug-n-play PTP link designed for easy installation.

Thousands of small businesses and residential customers are using Bridge-in-a-Box to wirelessly extend their networks by simply connecting point A to point B. Each Bridge-in-a-Box comes with 2 wireless radio modules and power over Ethernet (PoE) supplies that can be used to extend your network from wherever you have an Ethernet port to wherever you need one–from 50 feet to 5 miles away (20 meters to 8 kilometers). The modules are easy to deploy as they come preconfigured and pre-paired to connect.

How Are People Using Bridge-in-a-Box?
- Extending internet connectivity
- Connecting remote Wi-Fi hotspots
- Remote camera or CCTV video needs

Features

Pre-paired plug-n-play link for easy installation
Includes 2 wireless radio modules (Force 4518) and power over Ethernet (PoE) supplies
Up to 1Gbps throughput in unlicensed spectrum
Range up to 8 km
Outdoor IP55 Rated

Details
Product Code	C050940B831A
Wireless Standard	ePTP proprietary protocol; supports lower latencies, longer ranges, higher reliability
Radio Power	Up to 28 dBm EIRP
Antenna Gain	18 dBi
Environmental	IP55
Operating Temperature	-30ºC to 55ºC
Mounting	Included pole mount, supporting 2.5 cm to 4.1 cm
Security	128-bit AES encryption, WEP, password-protected HTTPS
Frequency Range	5150–5920 MHz (Exact frequencies as allowed by local regulations)
Channel Spacing	Configurable in 5 MHz increments
Channel Bandwidth Options	MHz 20 / 40 / 80 MHz
Ethernet Interface	10/100/1000 BaseT, compatible with Cambium PoE & standard PoE pinouts
Protocols Used	IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SS
Network Management	IPv4/IPv6, HTTPs, SNMPv2c, SSH, cnMaestro
VLAN	802.1Q with 802.1p priority
ARQ	Yes
Modulation Levels (Adaptive)	MCS-0 (BPSK) to MCS-11 (1024 QAM-5/6)
Surge Suppression	2KV
Weight	2.76 kg with mounting bracket
Wind Survival	180 km/h (112 mph)
Dimensions (Dia x Depth)	Without mounting bracket: 180 x 210 x 39 mm
Power Consumption	13W

Details
Power Supply	3 Pin Clover Lead
Power Injector	Included
Mounting Hardware	Pole mount kit included

Warranty

3 Years

Brand

Cambium Networks
