Name: ANT-188 - 5GHz 20dBi ARC Flat Panel Directional Antenna
Brand: Hana Wireless
SKU: ANT-188
Price: 90.85 NZD
Availability: InStock

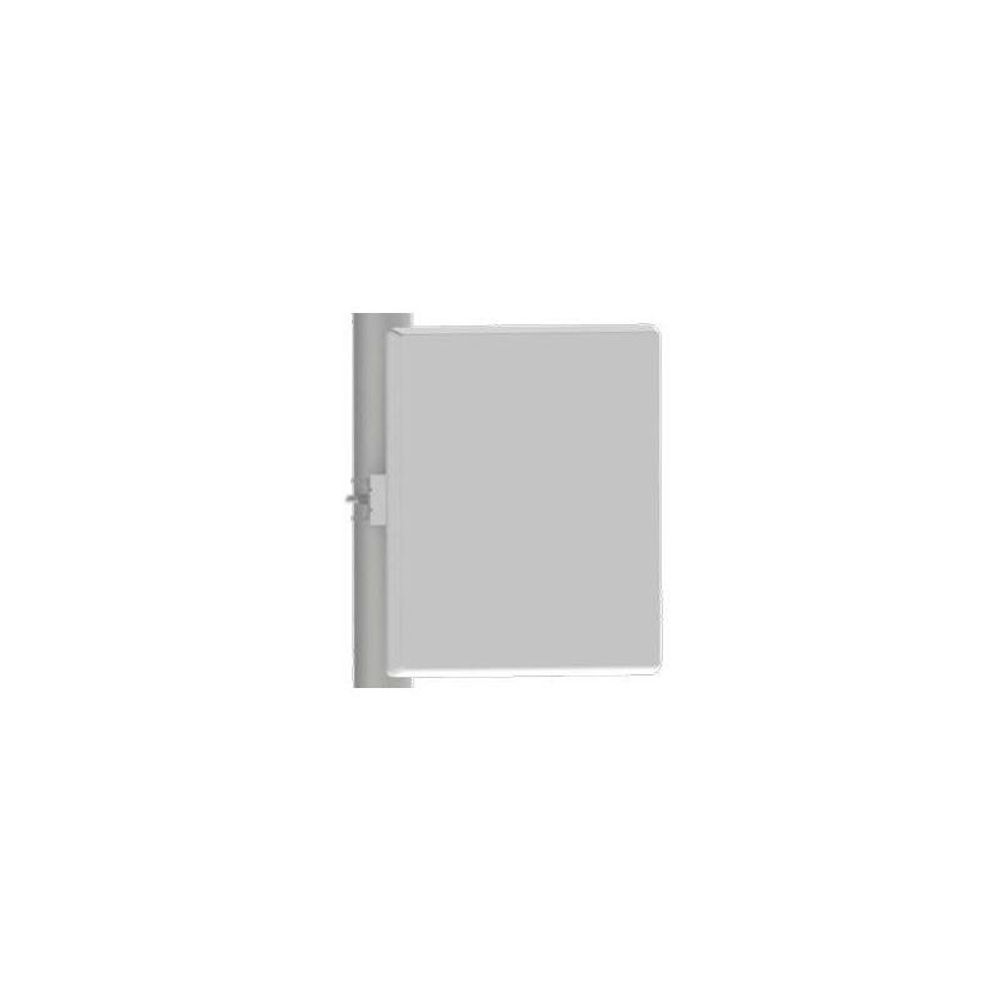

ANT-188 - 5GHz 20dBi ARC Flat Panel Directional Antenna

ANT-188

$90.85

Tax included.

7 items available

Select quantity

Description

5GHz 20dBi ARC Flat Panel Antenna. Introducing the 5GHz 20dBi ARC Panel Antenna (ARC-PA5820B01) from ARC Wireless Solutions. Heavy duty professional construction antenna with a versatile mounting bracket for pole or wall use. This antenna is great for mid-range high speed 802.11 wireless backhaul links.

Features

High gain, cost effective patented circuit design
Low profile and rugged design for outdoor use
US Engineered
Manufactured under strict US quality control procedures
Articulating wall/pole bracket (BRA-A-1699-02) included

Details
Manufacturer's Product Code	ARC-PA5820B01
Frequency Range	5.15-5.875GHz
Gain	20dBi
Polarisation	Single Linear – Vertical or Horizontal
Vertical Beamwidth	14deg
Horizontal Beamwidth	11deg
Connector Type	1x N-Type Female
Dimensions	Antenna: 26.4 x 26.4 x 1.2cm
Pole Mount Diameter	19mm to 51mm

Details
Pole Mount	Included
Wall Mount	Included
Warranty	Standard 12 Month RTB

Specifications

Details
Manufacturer's Product Code	ARC-PA5820B01
Frequency Range	5.15-5.875GHz
Gain	20dBi
Polarisation	Single Linear – Vertical or Horizontal
Vertical Beamwidth	14deg
Horizontal Beamwidth	11deg
Connector Type	1x N-Type Female
Dimensions	Antenna: 26.4 x 26.4 x 1.2cm
Pole Mount Diameter	19mm to 51mm

Warranty

Brand

Hana Wireless

Restock ETA (if applicable)

Product Details

Specifications

Hana Wireless
HeadingANT-188 - 5GHz 20dBi ARC Flat Panel Directional Antenna

Description

Features

High gain, cost effective patented circuit design
Low profile and rugged design for outdoor use
US Engineered
Manufactured under strict US quality control procedures
Articulating wall/pole bracket (BRA-A-1699-02) included

Details
Manufacturer's Product Code	ARC-PA5820B01
Frequency Range	5.15-5.875GHz
Gain	20dBi
Polarisation	Single Linear – Vertical or Horizontal
Vertical Beamwidth	14deg
Horizontal Beamwidth	11deg
Connector Type	1x N-Type Female
Dimensions	Antenna: 26.4 x 26.4 x 1.2cm
Pole Mount Diameter	19mm to 51mm

Details
Pole Mount	Included
Wall Mount	Included
Warranty	Standard 12 Month RTB

Specifications

Details
Manufacturer's Product Code	ARC-PA5820B01
Frequency Range	5.15-5.875GHz
Gain	20dBi
Polarisation	Single Linear – Vertical or Horizontal
Vertical Beamwidth	14deg
Horizontal Beamwidth	11deg
Connector Type	1x N-Type Female
Dimensions	Antenna: 26.4 x 26.4 x 1.2cm
Pole Mount Diameter	19mm to 51mm
