High wall air conditioning - commonly called a heat pump in New Zealand - is one of the most efficient ways to heat and cool your home year-round. Whether you're fitting out a new build, replacing an ageing unit, or adding climate control to a room that's always too hot in summer and too cold in winter, this guide covers everything you need to know: how high wall systems work, how to choose the right size, what to look for in a unit, and which brands are worth considering.

---

What Is a High Wall Air Conditioner?

A high wall air conditioner is a split-system heat pump consisting of two components: a wall-mounted indoor head unit installed high on an interior wall, and an outdoor compressor unit mounted outside the building. Refrigerant lines connect the two units through a small penetration in the wall.

Unlike portable or window units, high wall systems are permanently installed and require a registered electrician and certified refrigeration technician to fit. In return, they deliver significantly better efficiency, quieter operation, and more precise temperature control than any portable alternative.

In New Zealand, the terms "heat pump" and "high wall air conditioner" are used interchangeably. Both refer to the same split-system technology - a heat pump simply describes the mechanism: the unit moves heat rather than generating it, making it far more energy-efficient than a resistive heater.

---

How to Choose the Right Size

Capacity is measured in kilowatts (kW) and refers to the unit's heating or cooling output. Choosing the correct size is critical - an undersized unit will run continuously without reaching the target temperature, while an oversized unit will short-cycle and fail to dehumidify effectively.

As a general guide for well-insulated NZ homes:

• 2.5kW - bedrooms and small rooms up to approximately 15-20 sqm
• 3.5kW - medium rooms and open-plan areas up to approximately 25-30 sqm
• 5kW - larger living areas and open-plan kitchens up to approximately 40-45 sqm
• 7kW - large open-plan spaces, high-stud rooms, and commercial applications from approximately 50 sqm

These figures are a starting point only. Ceiling height, insulation quality, window area, sun exposure, and the number of occupants all affect the final sizing requirement. A registered heat pump installer can perform a heat load assessment for your specific space - this is the most reliable way to confirm the correct capacity before purchase.

---

Key Features to Look For

Inverter Technology

All modern high wall units sold in New Zealand use inverter compressors. Unlike older fixed-speed compressors that switch fully on or off, an inverter compressor varies its speed continuously to maintain the target temperature with minimal energy waste. Look for a high Energy Efficiency Ratio (EER) and Coefficient of Performance (COP) rating - the higher the number, the less electricity the unit uses per kW of heating or cooling delivered.

Heating and Cooling Modes

Confirm the unit operates in both heating and cooling modes. Most residential heat pumps sold in NZ are reverse-cycle, meaning they can heat in winter and cool in summer. Some entry-level units are cooling-only - these are not suitable as a primary climate control solution for NZ conditions.

Noise Levels

Indoor unit noise is measured in decibels (dB). For bedrooms, look for units rated at 19-22 dB on their lowest fan setting. Living area units can tolerate slightly higher ratings. Outdoor unit noise matters too, particularly if the compressor is located near a neighbour's boundary or a bedroom window.

Wi-Fi and Smart Control

Built-in Wi-Fi allows control via a manufacturer's smartphone app - useful for pre-heating or pre-cooling a room before you arrive home, setting schedules, and monitoring energy use. The Samsung WindFree range includes built-in Wi-Fi and integrates with the Samsung SmartThings app for remote control, scheduling, and energy monitoring.

Self-Cleaning and Air Filtration

Self-cleaning functions automatically dry the internal heat exchanger after use, inhibiting mould and bacteria growth inside the unit. This is a worthwhile feature in humid NZ climates. Some units also include ionisation or HEPA-grade filtration - useful for households with allergy sufferers.

---

Indoor Units, Outdoor Units, or Complete Kits?

High wall systems are available as complete indoor/outdoor kits, or as separate indoor and outdoor units. For most residential installations, a matched kit is the simplest and most cost-effective option - the units are pre-matched for optimal performance and the installation quote is straightforward.

Purchasing units separately makes sense when replacing only one component of an existing system, or when your installer is sourcing one component independently. Always confirm compatibility with your installer before purchasing components separately.

---

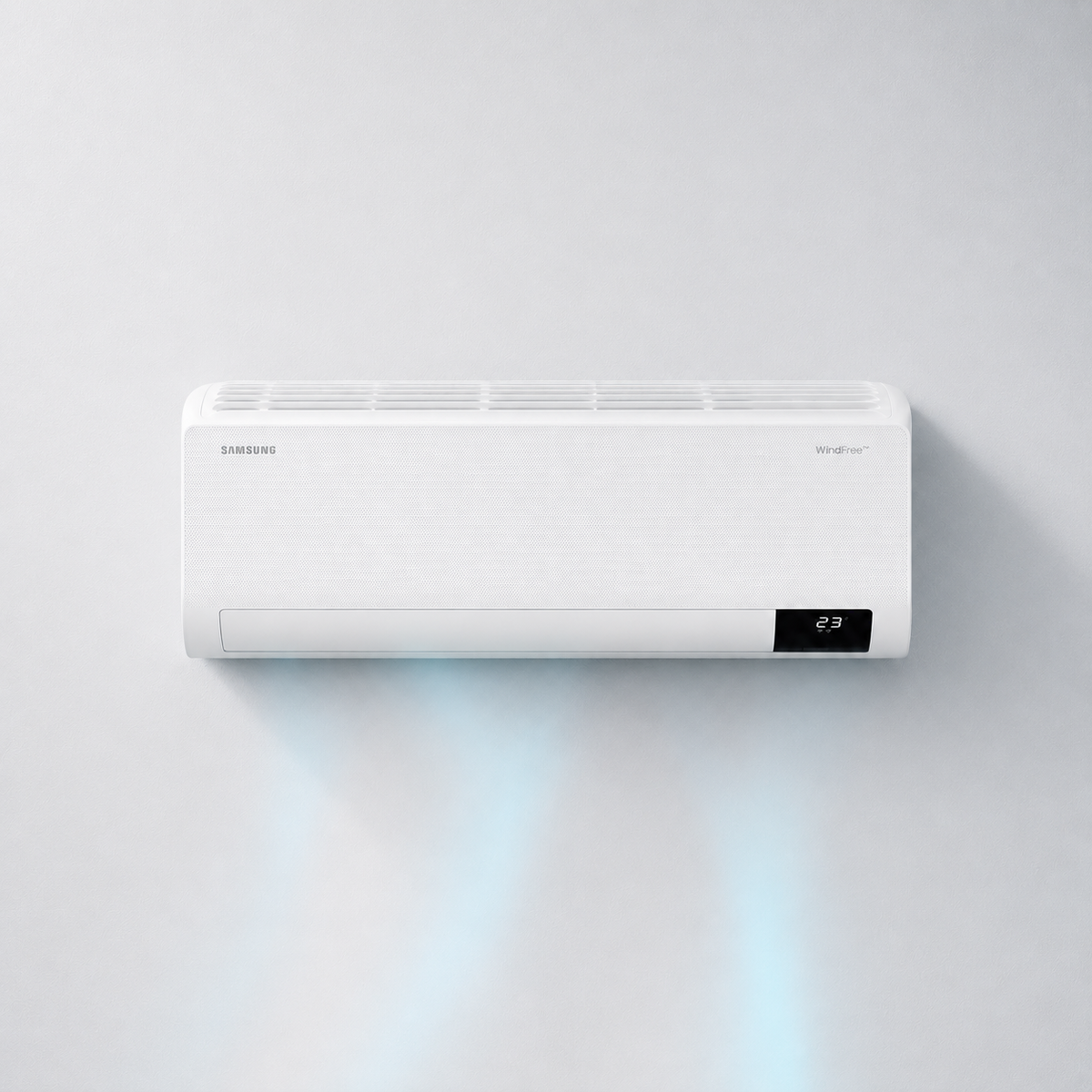

Featured Range: Samsung AI Smart Airise WindFree

The Samsung AI Smart Airise WindFree is Samsung's flagship residential heat pump range for the New Zealand market, available in 2.5kW, 3.5kW, 5kW, and 7kW configurations.

WindFree Cooling

The defining feature of the WindFree range is its cooling mode: rather than directing a cold airstream into the room, the unit disperses cool air through 23,000 micro air holes across the front panel. The result is even, draught-free cooling - a significant comfort improvement over conventional units that create a direct cold blast.

AI Auto Mode

The AI Auto mode learns your usage patterns over time and adjusts temperature, fan speed, and airflow direction automatically. In practice, this means the unit maintains comfort with less manual adjustment and lower energy consumption than a unit running on fixed settings.

SmartThings Integration

Built-in Wi-Fi connects to the Samsung SmartThings app for remote control, scheduling, and energy monitoring. If you already use SmartThings for other Samsung devices in your home, the WindFree integrates natively into your existing setup.

Self-Cleaning

The Samsung WindFree automatically dries the internal heat exchanger after each use, inhibiting mould and bacteria growth and keeping the unit fresh between services.

Shop the Samsung WindFree Range

Complete Indoor and Outdoor Kits

• Samsung WindFree 2.5kW Indoor and Outdoor Kit - ideal for bedrooms and small rooms up to approximately 20 sqm
• Samsung WindFree 3.5kW Indoor and Outdoor Kit - suited to medium rooms and open-plan areas up to approximately 30 sqm
• Samsung WindFree 5kW Indoor and Outdoor Kit - recommended for larger living areas up to approximately 45 sqm
• Samsung WindFree 7kW Indoor and Outdoor Kit - designed for large open-plan spaces and commercial applications

Indoor Units Only

• Samsung WindFree 2.5kW Indoor Unit
• Samsung WindFree 3.5kW Indoor Unit
• Samsung WindFree 5kW Indoor Unit
• Samsung WindFree 7kW Indoor Unit

Outdoor Units Only

• Samsung WindFree 2.5kW Outdoor Unit
• Samsung WindFree 3.5kW Outdoor Unit
• Samsung WindFree 5kW Outdoor Unit
• Samsung WindFree 7kW Outdoor Unit

---

Installation Requirements in New Zealand

High wall heat pump installation in New Zealand must be carried out by a registered electrician and a certified refrigeration technician. DIY installation of refrigerant lines is not permitted under NZ regulations - handling refrigerant requires an approved handler certificate under the Ozone Layer Protection Act.

When obtaining installation quotes, confirm that the installer will issue a Certificate of Compliance (CoC) for the electrical work on completion. This document is required for insurance purposes and may be requested if you sell the property. Always use a registered professional and retain all compliance documentation.

---

FAQ

What is the difference between a heat pump and an air conditioner?

In New Zealand, the terms are used interchangeably. A heat pump is a type of air conditioner that can both heat and cool. It moves heat rather than generating it, making it significantly more energy-efficient than a resistive heater such as a panel heater or electric bar heater.

Do I need consent to install a high wall heat pump?

In most cases, a building consent is not required for a standard residential heat pump installation in New Zealand, provided the installation meets the requirements of the Building Code. However, electrical work always requires a Certificate of Compliance. Check with your local council if you are unsure about your specific situation.

Can I control my Samsung heat pump with my phone?

Yes - the Samsung WindFree range includes built-in Wi-Fi and connects to the Samsung SmartThings app for remote control, scheduling, and energy monitoring from your smartphone.

How long does a high wall heat pump last?

A well-maintained high wall heat pump typically lasts 15-20 years. Annual servicing - cleaning filters, checking refrigerant levels, and inspecting the outdoor unit - extends the unit's lifespan and maintains efficiency.

---

Top Brands in High Wall Air Conditioning

• Samsung - AI Smart Airise WindFree range in 2.5kW, 3.5kW, 5kW, and 7kW

---

Browse the full range of High Wall Air Conditioning at Tech Supply Shed NZ, or explore our Home Appliances collection for related products.
