Description
Features

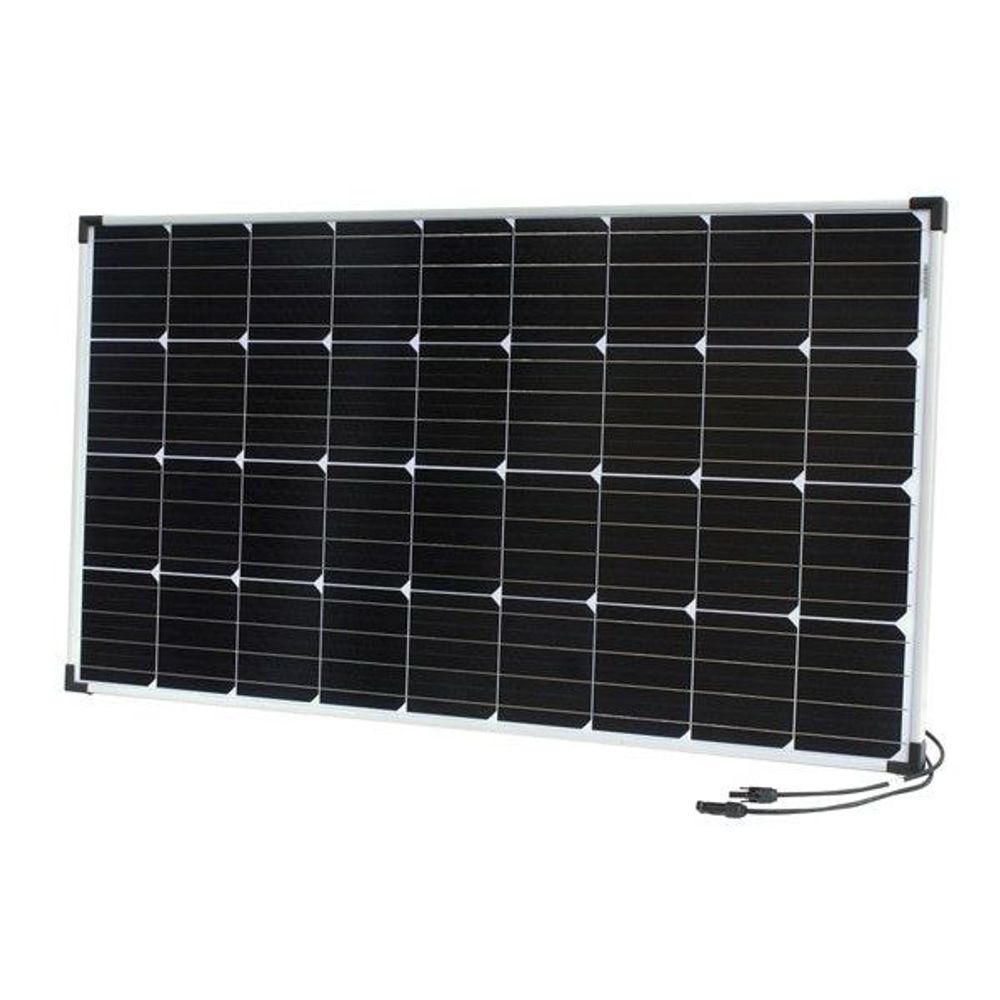

ZM9065 This high quality panel has a much higher efficiency and power output compared to previous models with the same physical size. This means you can get more power without having to add more panels, brackets, and hardware. The manufacturing process for this range uses 36 A-grade solar cells cut into defined sizes with 5 grid lines. This provides excellent performance under low light environments, producing 2-3% more power and higher kWh/kW ratio compared to older monocrystalline designs. The durable anodised aluminium frame holds the tempered glass panel, which features anti-reflective and a self-cleaning glass surface to reduce power loss from dirt and dust. The junction box and bypass diodes stop the panel from overheating and suffering from the “hot spot effect”. PV connectors on 900mm leads make them easy to install. A fantastic panel with minimal ongoing maintenance and compatible with industry standard inverters and mounting systems. 25 year limited warranty All Powertech monocrystalline solar panels are covered by a 25 year limited warranty. This warranty covers the panels for defects in construction and manufacturing for a period of 5 years, and warrants that the electrical output will remain above 80% of its original rated output for a period of 25 years.
Specifications
Specifications
| Packaged Volume : 52.27l |
| Packaged Weight : 11.89kg |
| Packaged Length : 151.5cm |
| Packaged Width : 69cm |
| Packaged Height : 5cm |
| Length : 1480mm |
| Width : 680mm |
| Height : 35mm |
| Weight : 10.6kg |
| DC Voltage : 12V |
| Continuous Power : 170W |
| Power tolerance : 3% |
| Solar panel type : Monocrystalline |
| Cover Material : tempered glass |
| Open Circuit Voltage : 22.62V |
| Short Circuit Current : 9.47A |
| Voltage at Power Max : 18.85V |
| Current at Power Max : 9.02A |
| Power Connector : 4mm PV Connector (MC4 Style) |
| Bypass Diode Included : true |
| Availability : Stocked item |
