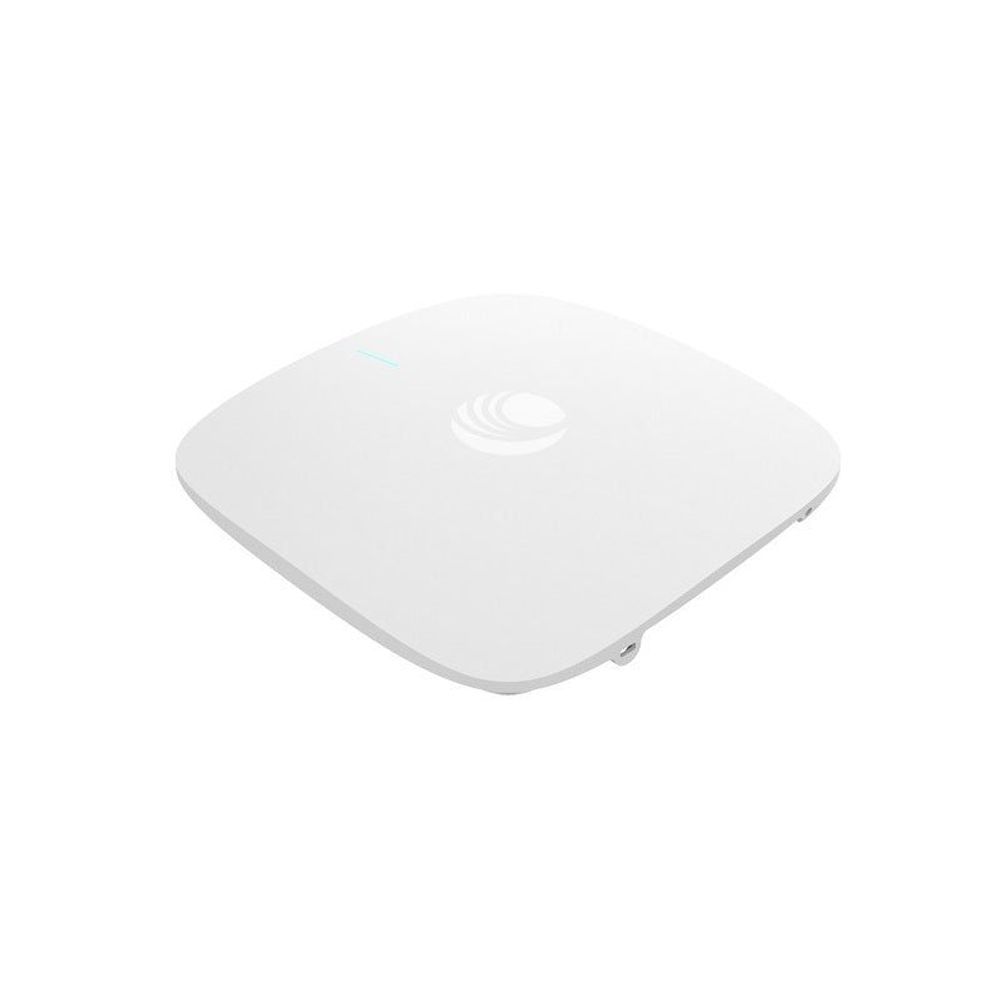

XE3-4 - Cambium XE3-4 Indoor Tri-band WiFi 6e 2.4GHz, 5GHz and 6GHz Software-Defined Access Point

Cambium NetworksSKU: XE3-4

Price:
Sale price$1,636.45 NZD

Tax included

Stock:
In stock

Description

Cambium XE3-4 Indoor Tri-band 802.11ax Wi-Fi 6e (2.4GHz, 5GHz and 6GHz bands) AP with SDR (Software Defined Radio) 4x4 and 2.5GbE.

The XE3-4 is a tri-radio Wi-Fi 6/6E 4×4/2×2 access point (AP) designed to deliver future-proof performance and value for building next generation networks. Wi-Fi 6 delivers faster and more efficient wireless network connections than previous generation Wi-Fi technologies.

Designed for High Density and Edge Services
Wi-Fi 6E extends the capacity of Wi-Fi into the 6 GHz band, more than tripling the wireless spectrum available. With a high speed software-defined radio, the XE3-4 Wi-Fi 6E access point enables seamless transition to Wi-Fi 6E with the ability to easily change from dual-band to tri-band (2.4 GHz, 5 GHz, 6 GHz) mode when sufficient 6 GHz clients are available.

The XE3-4 is fully backward compatible with existing Wi-Fi technology, enabling simultaneous support of new high speed clients, legacy clients, low-bitrate IoT devices, and more in a single wireless infrastructure.

Cloud and On-Premises Management
XE3-4 operates with either Cambium Networks’ XMS or cnMaestro management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.
Features
  • Compatible with Cambium Networks XMS or cnMaestro management system
  • Tri-Radio/Tri-Band Wi-Fi 6 and WiFi6E
  • Tri-Band WiFi6E supports 2.4GHz, 5GHz and 6GHz bands
  • 6.6 Gbps aggregate data rate
  • 2.5 GbE and 1 GbE uplink ports
  • EasyPass with Microsoft Azure and Google G Suite integration (requires XMS Cloud or Enterprise)
  • 5 Year limited lifetime warranty
Details
Product Code XE3-4X00B06-RW
Radios 1x 5 GHz/6 GHz: 802.11a/n/ac/ax 4x4 SW configurable, 1x 5 GHz: 802.11 a/n/ac Wave 2/ax 2x2, 1x 2.4 GHz: 802.11 b/g/n/ax 2x2, 1x BLE 4.1
Wi-Fi 802.11a/b/g/n/ac Wave 2/ax
SSID Security WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open
Antenna 6 GHz: 6.29 dBi, Omni, 5 GHz: 6.12 dBi, Omni, 2.4 GHz: 4.85 dBi, Omni
Max EIRP 6 GHz: 30 dBm, 5 GHz: 31 dBm, 2.4 GHz: 29 dBm
WLAN 1,500 clients, 16 SSIDs
Authentication Encryption Hotspot 2.0 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS, MAC authentication to local database or external RADIUS
Subscriber QoS WMM
Fast Roaming 802.11r, OKC, assisted roaming
Ports 1 x IEEE 10/100/1000/2500 Mbps Ethernet, 1 x IEEE 10/100/1000 Mbps Ethernet, 1 x USB 2.0
Power 32W 802.3bt powered device, 25.5W (802.3at) with USB, BT disabled, Typical 22W (USB disabled)
Dimensions 215 mm x 215 x 42 (without bracket)
Weight 900 g
Security Kensington lock slot
Ambient Operating Temperature 0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature -40ºC to 70ºC (-40ºF to 158ºF)
Humidity 95% RH non-condensing
MTBF 668,759 hours 25ºC, 314,145 hours at 50ºC
Mount Options Wall or ceiling, T-bar with included locking bracket, ceiling tile plate
Certifications (Compliance) FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical EMC, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway EMC, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS
Details
Power Supply Sold Separately
Mounting Hardware Included





Specifications





Details
Product Code XE3-4X00B06-RW
Radios 1x 5 GHz/6 GHz: 802.11a/n/ac/ax 4x4 SW configurable, 1x 5 GHz: 802.11 a/n/ac Wave 2/ax 2x2, 1x 2.4 GHz: 802.11 b/g/n/ax 2x2, 1x BLE 4.1
Wi-Fi 802.11a/b/g/n/ac Wave 2/ax
SSID Security WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open
Antenna 6 GHz: 6.29 dBi, Omni, 5 GHz: 6.12 dBi, Omni, 2.4 GHz: 4.85 dBi, Omni
Max EIRP 6 GHz: 30 dBm, 5 GHz: 31 dBm, 2.4 GHz: 29 dBm
WLAN 1,500 clients, 16 SSIDs
Authentication Encryption Hotspot 2.0 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS, MAC authentication to local database or external RADIUS
Subscriber QoS WMM
Fast Roaming 802.11r, OKC, assisted roaming
Ports 1 x IEEE 10/100/1000/2500 Mbps Ethernet, 1 x IEEE 10/100/1000 Mbps Ethernet, 1 x USB 2.0
Power 32W 802.3bt powered device, 25.5W (802.3at) with USB, BT disabled, Typical 22W (USB disabled)
Dimensions 215 mm x 215 x 42 (without bracket)
Weight 900 g
Security Kensington lock slot
Ambient Operating Temperature 0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature -40ºC to 70ºC (-40ºF to 158ºF)
Humidity 95% RH non-condensing
MTBF 668,759 hours 25ºC, 314,145 hours at 50ºC
Mount Options Wall or ceiling, T-bar with included locking bracket, ceiling tile plate
Certifications (Compliance) FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical EMC, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway EMC, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS
