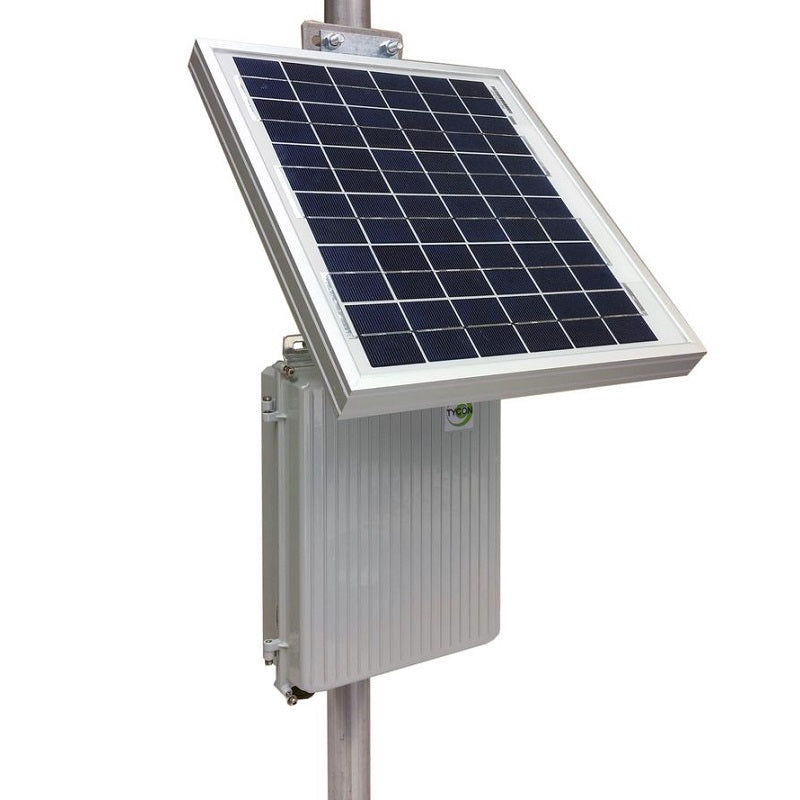

Name: Tycon Solar RemotePro2.5W 12V DC Remote Power System
Brand: Tycon Power
SKU: RPDC12-9-15
Price: 730.25 NZD
Availability: InStock

Tycon Solar RemotePro2.5W 12V DC Remote Power System

RPDC12-9-15

$730.25

Tax included.

2 items available

Select quantity

Description

Tycon Solar RemotePro2.5W,9Ah Batt,15W Sol,12V PWM

Tycon Solar RemotePro2.5W Remote Power System. 9Ah Battery. 15W Solar. 12V 20A PWM Controller. Die Cast Aluminum Enclosure.

The RPDC RemotePro® series outdoor power systems are designed for applications that require a primary off-grid power source to run various electronics.

The die cast aluminum enclosures are hinged and gasket sealed. They can be mounted to a pole or wall with the included mounting bracket system.

The high quality solar panels have a 25year power output guarantee. They can be mounted to a pole or to a wall with the included bracket kit.

Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. Enclosures are vented to prevent residual buildup of hydrogen gas.

Batteries are an Absorbed Glass Matt (AGM) type which have good all temperature performance.

Features

Complete Remote Power Solution for Off-Grid operation
Weatherproof, UV resistant, outdoor enclosures
Enclosures can be Wall or Pole Mounted
High Performance Valve Regulated Sealed Lead Acid Batteries
Advanced battery charge controller protects against overcharge and over discharge

Details
Manufacturer's Product Code	RPDC12-9-15
Rated Power Generation (6hrs peak sun)	2.5W
Reserve Time @ Rated Power	21hrs
POE Output Voltage (DC)	No POE Out
Secondary Volts Out (DC)	12V 20A
Battery Capacity (Amp Hrs)	8.5Ah
Battery Voltage (DC)	12V
Battery Type	Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
Battery Life	5 Years
Controller Type	PWM
Overcharge Protection	14.4V
Over-discharge protection	11.0V
Over-discharge recovery volts	12.0V
Controller Self Consumption	<0.3W
Enclosure Type	Die Cast Aluminum
Enclosure External Size	11 x 8.5 x 3.5” (279x216x89mm)
Enclosure Internal Size	10 x 7.75 x 3” (254x197x76mm)
Space available for Customer Electronics	7.75 x 5 x 1.25” (197x127x32mm)
Solar Panel Dims	14”X12” (355 x 305mm)
Operating Temperature	-30°C to +60°C (-22°F to 140°F)
System Weight (no batteries)	10lb (4.5kg)
Battery Weight	5.5lb (2.5kg)
Wind Speed Rating	110MPH (49m/s)

support

Details
Battery	9AH Battery
Solar	15W Solar Panel
Controller	12V 20A PWM Controller
Enclosure	Die Cast Aluminum Enclosure

Warranty

3 Years

Brand

Tycon Power
