KEY FEATURES
802.11ac for up to 867Mbps on the 5GHz wireless data rate(1)
Ideal for long-range wireless transmission up to 5 km(2)
3x Gigabit Ethernet ports for more high-speed IP camera connections Wireless Bridge 5GHz 867Mbps long-range indoor/outdoor access point

Omada solution
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralised cloud management. Omada creates a highly scalable network—all controlled from a single interface.

Key Features

802.11ac for up to 867Mbps on the 5GHz wireless data rate.1

Ideal for long-range wireless transmission up to 5 km.2

Auto-pairing and agile LEDs for efficient deployment.

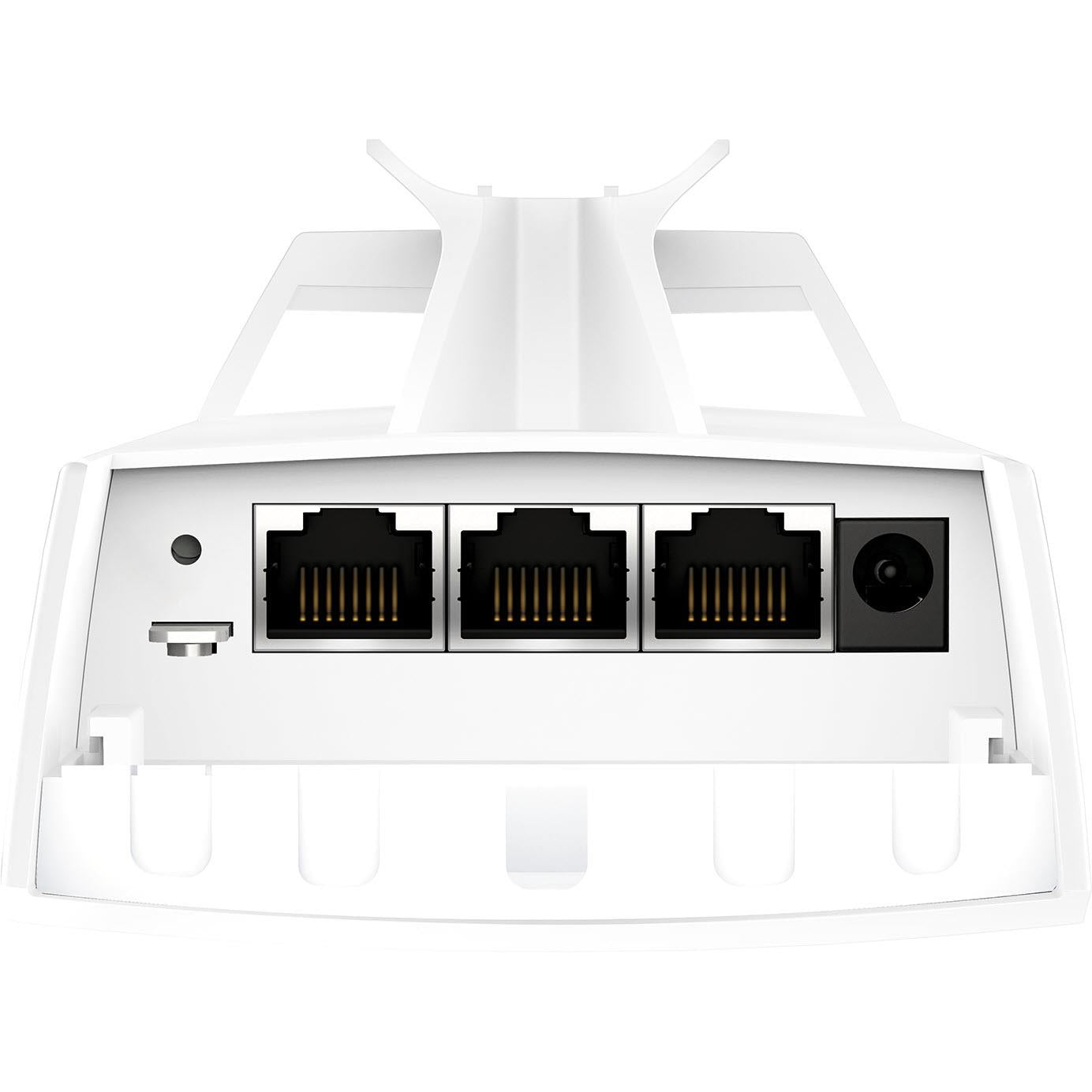

3x Gigabit Ethernet ports for more high-speed IP camera connections.

Supports Omada SDN for remote and centralized management.

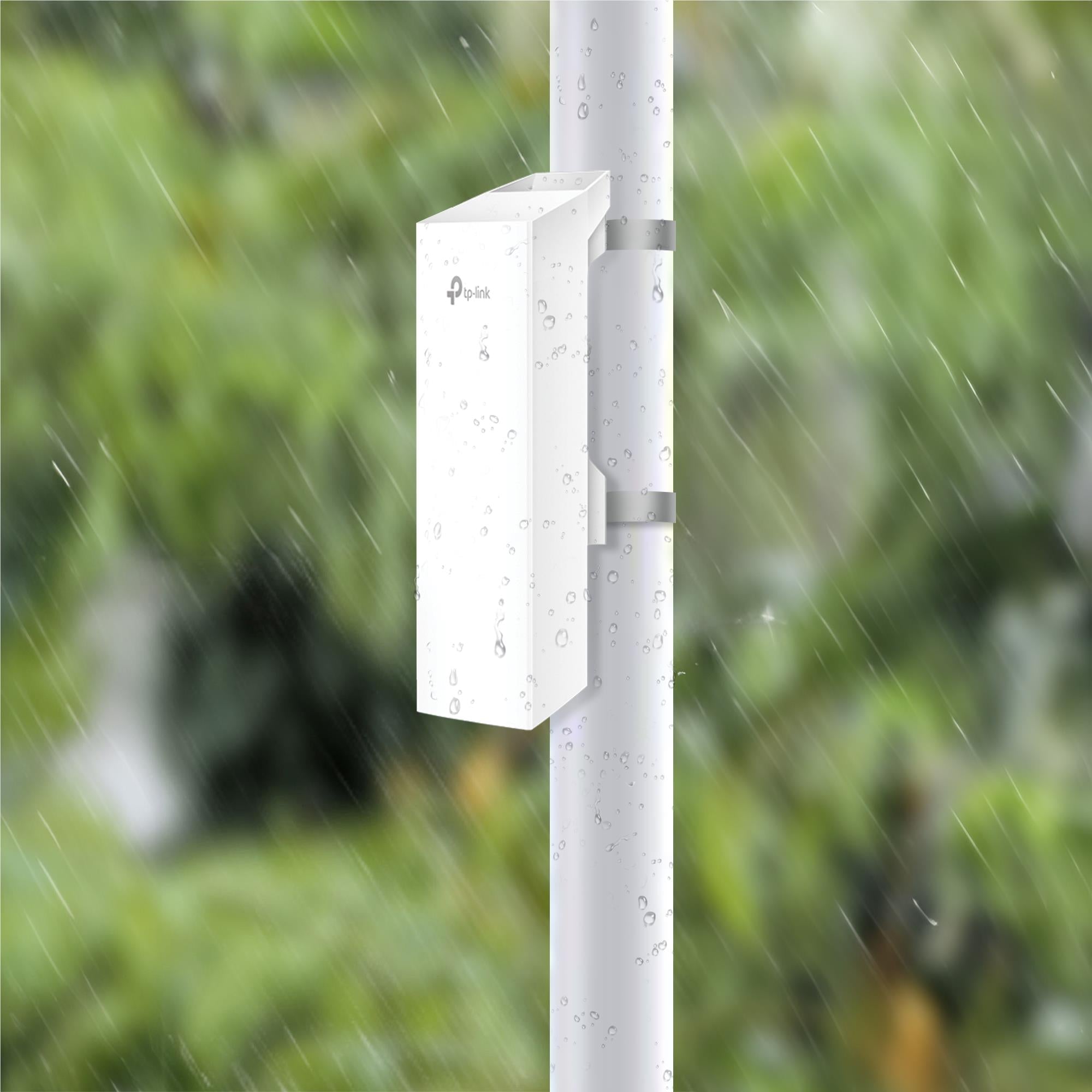

IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.3

Supports Passive PoE for flexible deployment (adapter included).

1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications, along with the number of connected devices, were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.
2. All products are tested in real outdoor environments. Actual range and throughput depend on the transmission power and environmental factors such as wireless interference, obstacles, weather, etc.
3. Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
4.These functions require the use of an Omada SDN controller. Network device type
Range extender
Data speed (Mbps)
Up to 867 Mbps
Frequency band
5.0GHz
Wireless Range
Up to 5km
Beamforming
Yes
Ethernet / LAN ports
3
Wi-Fi
Wi-Fi 5 (802.11 ac)
Manufacturer's warranty
3 Years

3 Years

TP-Link.
