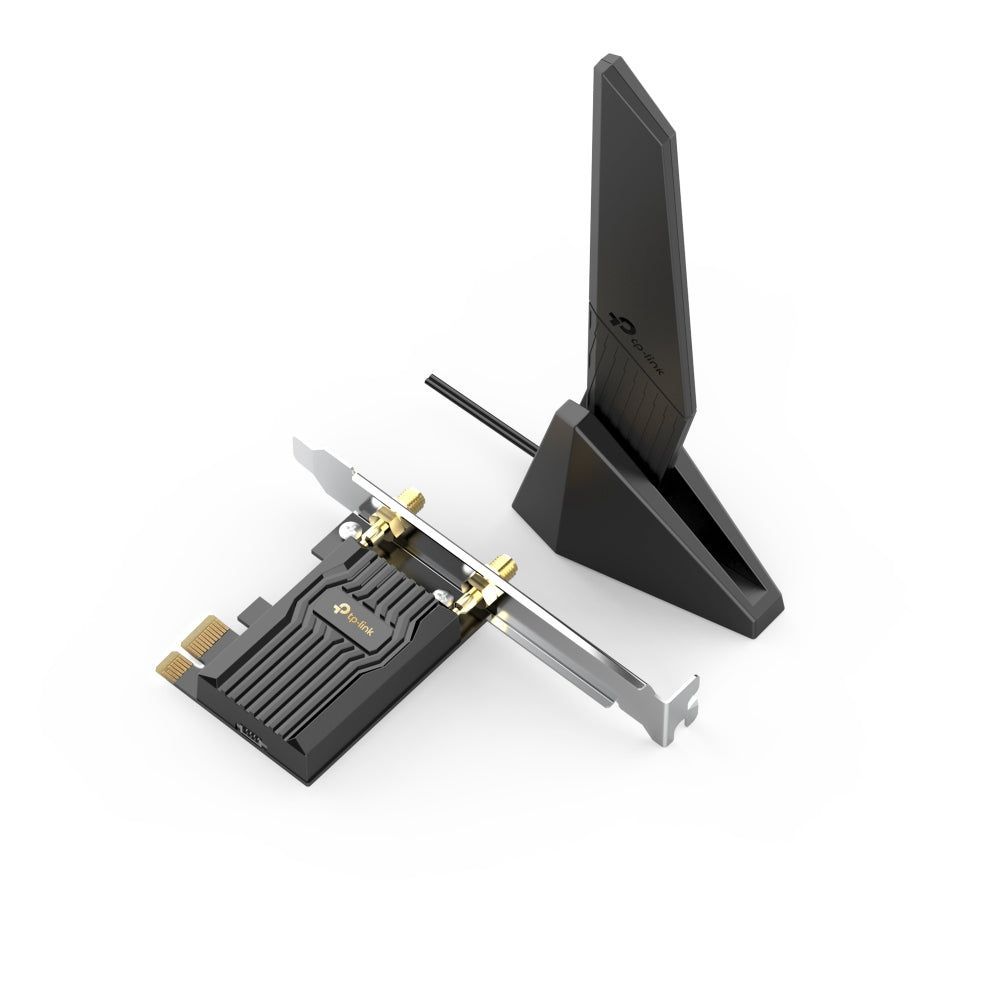

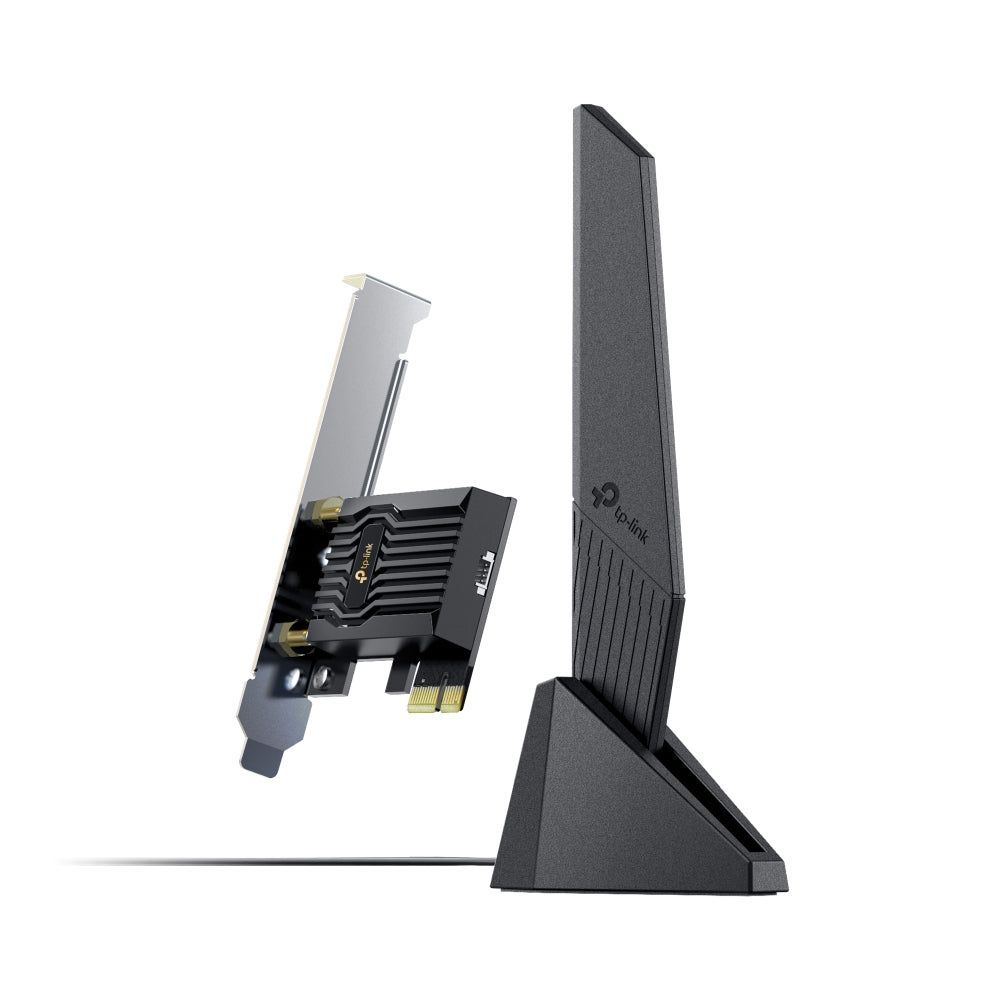

AXE5400 Wi-Fi 6E Bluetooth PCIe Adapter

Unparalleled Tri-Band Speed: Boost your overall speeds with up to 2402 Mbps (6 GHz), 2402 Mbps (5 GHz), and 574 Mbps (2.4 GHz).^†

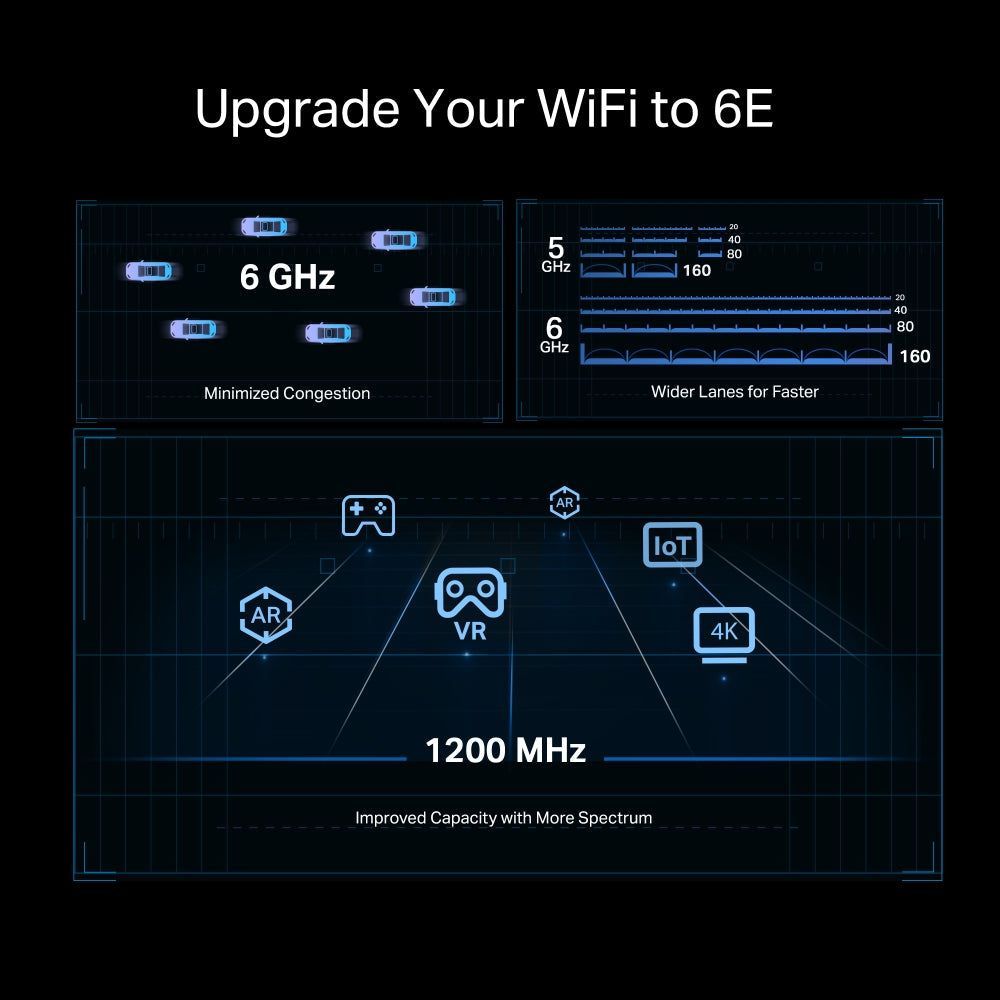

Wi-Fi 6E Standard: Expand to the clearer, broader 6 GHz band for more bandwidth and faster speeds. Currently 6 GHz Band only supported on Windows 11.‡

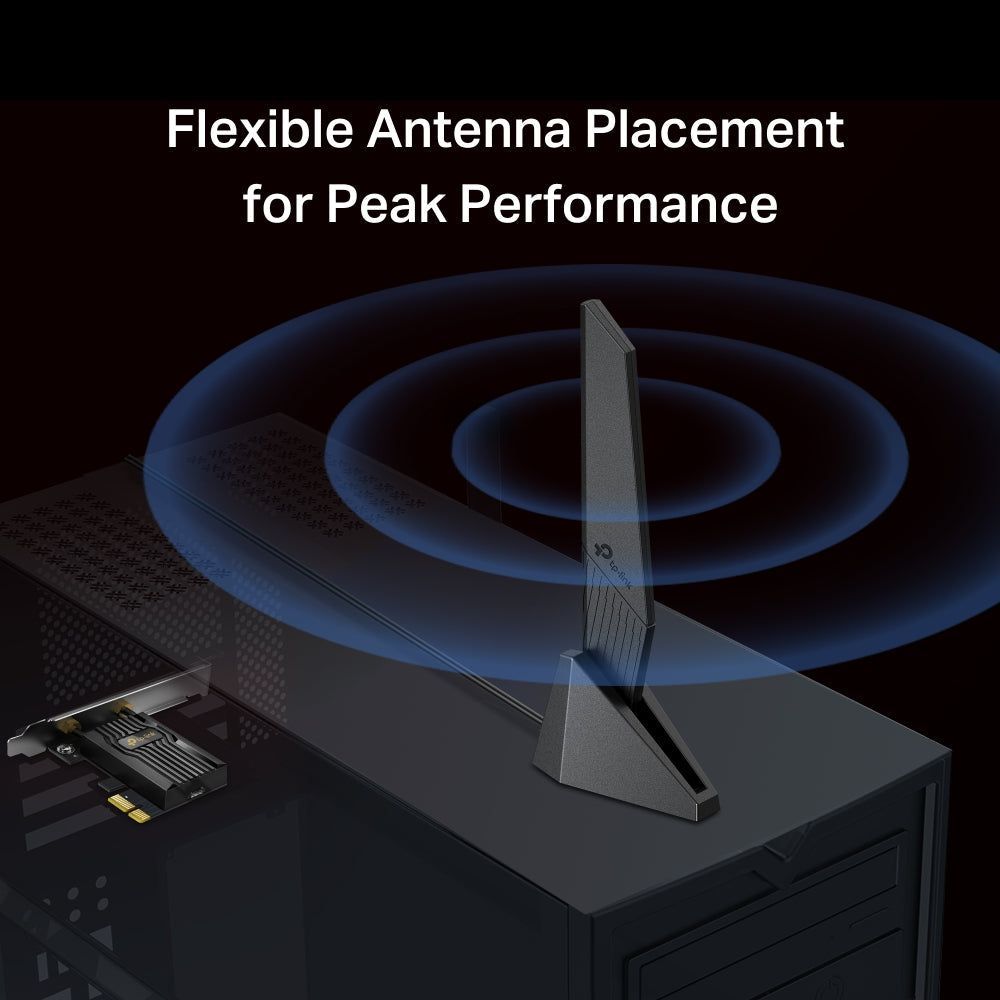

Boosted Wi-Fi Reception: Multi-directional antennas with a magnetised base ensure optimal signal reception.
Bluetooth 5.3: Security and reliability improvement than last-gen high-speed Bluetooth 5.0.△
Improved Security: The latest security enhancement, WPA3, provides enhanced protection for personal password safety.☆
Backward Compatibility: Full support for 802.11ax/ac/a/b/g/n standards.

HARDWARE FEATURES
Dimensions ( W x D x H )	3.09 × 4.8 × 0.85 in (78.5 × 120.8 × 21.5 mm)
Antenna	1 × High–Gain Tri-Band Antenna (2T2R)

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/b/g/n/ac/ax
WLAN Signal Rate	6 GHz: 11ax: Up t0 2402Mbps(dynamic) 5 GHz: 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity	6 GHz: 11ax HE20 MCS0: -93dBm 11ax HE160 MCS11: -54dBm 5 GHz: 11ac VHT20 MCS0: -94dBm 11ax HE160 MCS11: -55dBm 2.4 GHz: 11n HT20 MCS0: -93dBm 11ax HE40 MCS11: -60dBm
WLAN Transmit Power	6 GHz: 14dBm(FCC) /18dBm(CE) (EIRP) 5 GHz: 23dBm(FCC) /18dBm(CE) (EIRP) 2.4 GHz: 23dBm(FCC) /18dBm(CE) (EIRP)
WLAN Modes	Infrastructure mode
Wireless Security	WEP, WPA/WPA2/WPA3(Personal/Enterprise), WPA-PSK/WPA2-PSK

OTHERS
Certification	FCC, CE, RoHS
Package Content	Archer TXE73E Magnetized Antenna Base with 0.8m RF Cable Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD
System Requirements	Supported operating systems include Windows 10, 11(64-bit).
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Accessories Specifications	Extension Cable Length: 0.8 m Bluetooth Header Cable Length: 0.3 m

For additional version information, please go to the support page.

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

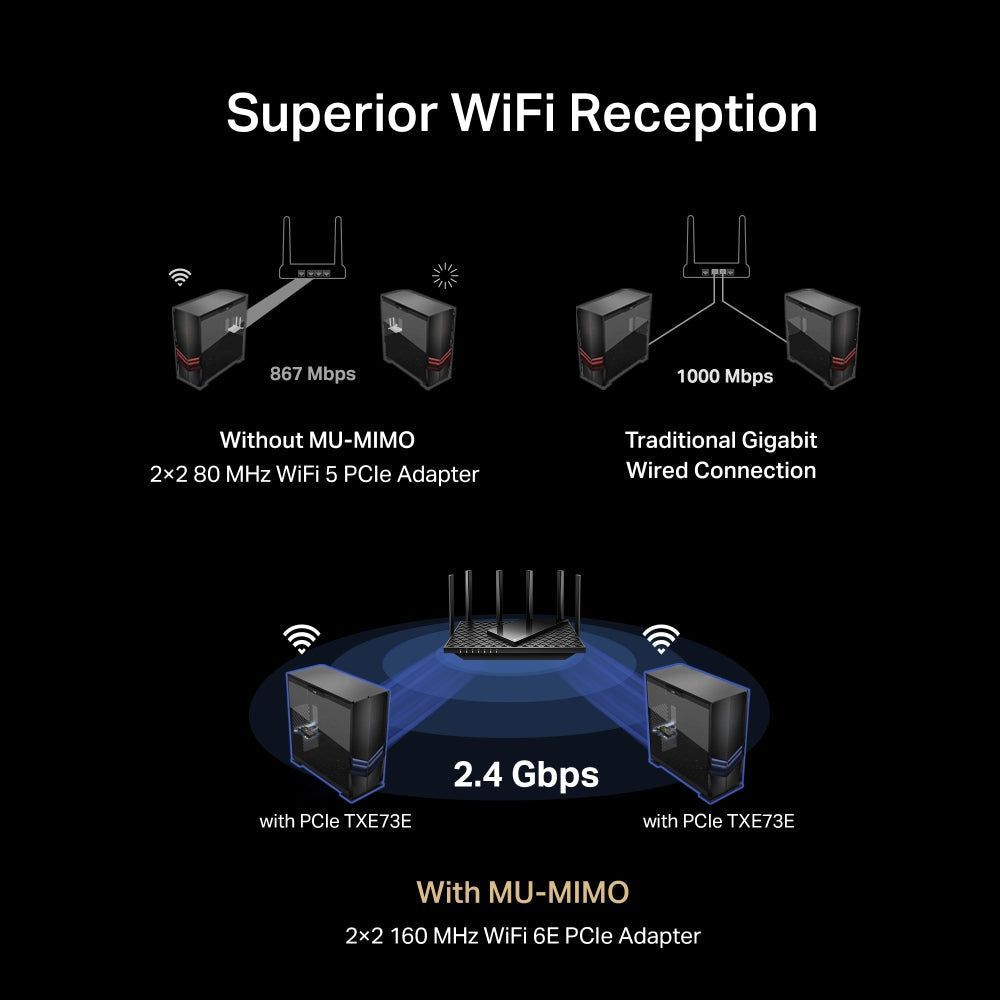

‡Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E, and features including OFDMA, MU-MIMO, 1024-QAM, or HE160 require APs to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions.

§“Up to 75% lower latency" is based on Intel's simulation data comparing 802.11ax performance with and without OFDMA, using a network of 9 clients. Without OFDMA, the average latency is 36ms, but with OFDMA, it drops dramatically to just 7.6ms. To experience this latency improvement, both the router (AP) and all connected devices (clients) must support OFDMA technology.

△Certain features of Archer TXE73E, such as Bluetooth 5.3, may be restricted on some computing systems and platforms. Please try to update the device's driver for feature compatibility.

☆Use of WPAЗ requires APs to also support the corresponding feature.

※To ensure compatibility, you may need to update the adapter’s drivers after an OS update.

Warranty

Brand

TP-LINK

Restock ETA (if applicable)

Product Details

Specifications

TP-LINK
HeadingTP-Link Archer TXE73E AXE5400 Wi-Fi 6E Bluetooth PCIe Adapter

Description

AXE5400 Wi-Fi 6E Bluetooth PCIe Adapter

Unparalleled Tri-Band Speed: Boost your overall speeds with up to 2402 Mbps (6 GHz), 2402 Mbps (5 GHz), and 574 Mbps (2.4 GHz).^†
Wi-Fi 6E Standard: Expand to the clearer, broader 6 GHz band for more bandwidth and faster speeds. Currently 6 GHz Band only supported on Windows 11.‡
Boosted Wi-Fi Reception: Multi-directional antennas with a magnetised base ensure optimal signal reception.
Bluetooth 5.3: Security and reliability improvement than last-gen high-speed Bluetooth 5.0.△
Improved Security: The latest security enhancement, WPA3, provides enhanced protection for personal password safety.☆
Backward Compatibility: Full support for 802.11ax/ac/a/b/g/n standards.

HARDWARE FEATURES
Dimensions ( W x D x H )	3.09 × 4.8 × 0.85 in (78.5 × 120.8 × 21.5 mm)
Antenna	1 × High–Gain Tri-Band Antenna (2T2R)

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/b/g/n/ac/ax
WLAN Signal Rate	6 GHz: 11ax: Up t0 2402Mbps(dynamic) 5 GHz: 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity	6 GHz: 11ax HE20 MCS0: -93dBm 11ax HE160 MCS11: -54dBm 5 GHz: 11ac VHT20 MCS0: -94dBm 11ax HE160 MCS11: -55dBm 2.4 GHz: 11n HT20 MCS0: -93dBm 11ax HE40 MCS11: -60dBm
WLAN Transmit Power	6 GHz: 14dBm(FCC) /18dBm(CE) (EIRP) 5 GHz: 23dBm(FCC) /18dBm(CE) (EIRP) 2.4 GHz: 23dBm(FCC) /18dBm(CE) (EIRP)
WLAN Modes	Infrastructure mode
Wireless Security	WEP, WPA/WPA2/WPA3(Personal/Enterprise), WPA-PSK/WPA2-PSK

OTHERS
Certification	FCC, CE, RoHS
Package Content	Archer TXE73E Magnetized Antenna Base with 0.8m RF Cable Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD
System Requirements	Supported operating systems include Windows 10, 11(64-bit).
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Accessories Specifications	Extension Cable Length: 0.8 m Bluetooth Header Cable Length: 0.3 m

For additional version information, please go to the support page.

△Certain features of Archer TXE73E, such as Bluetooth 5.3, may be restricted on some computing systems and platforms. Please try to update the device's driver for feature compatibility.

☆Use of WPAЗ requires APs to also support the corresponding feature.

※To ensure compatibility, you may need to update the adapter’s drivers after an OS update.
