Description

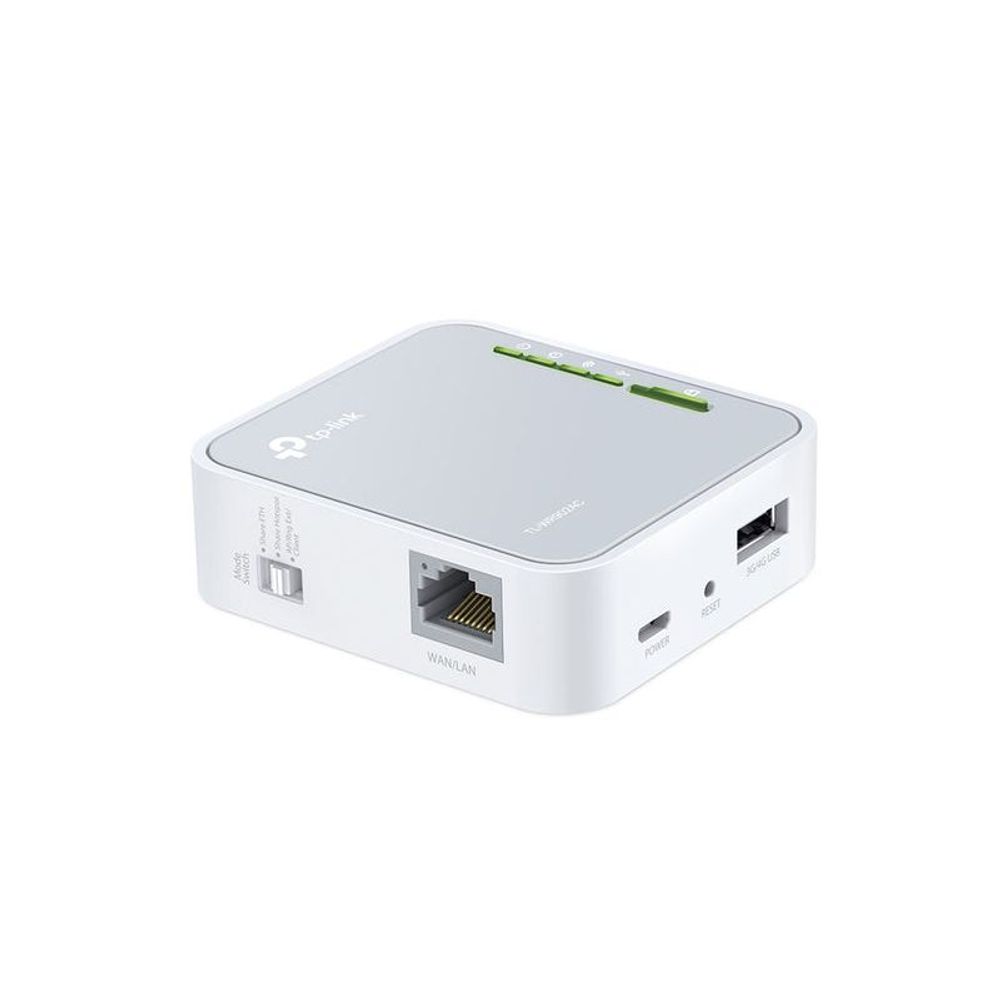

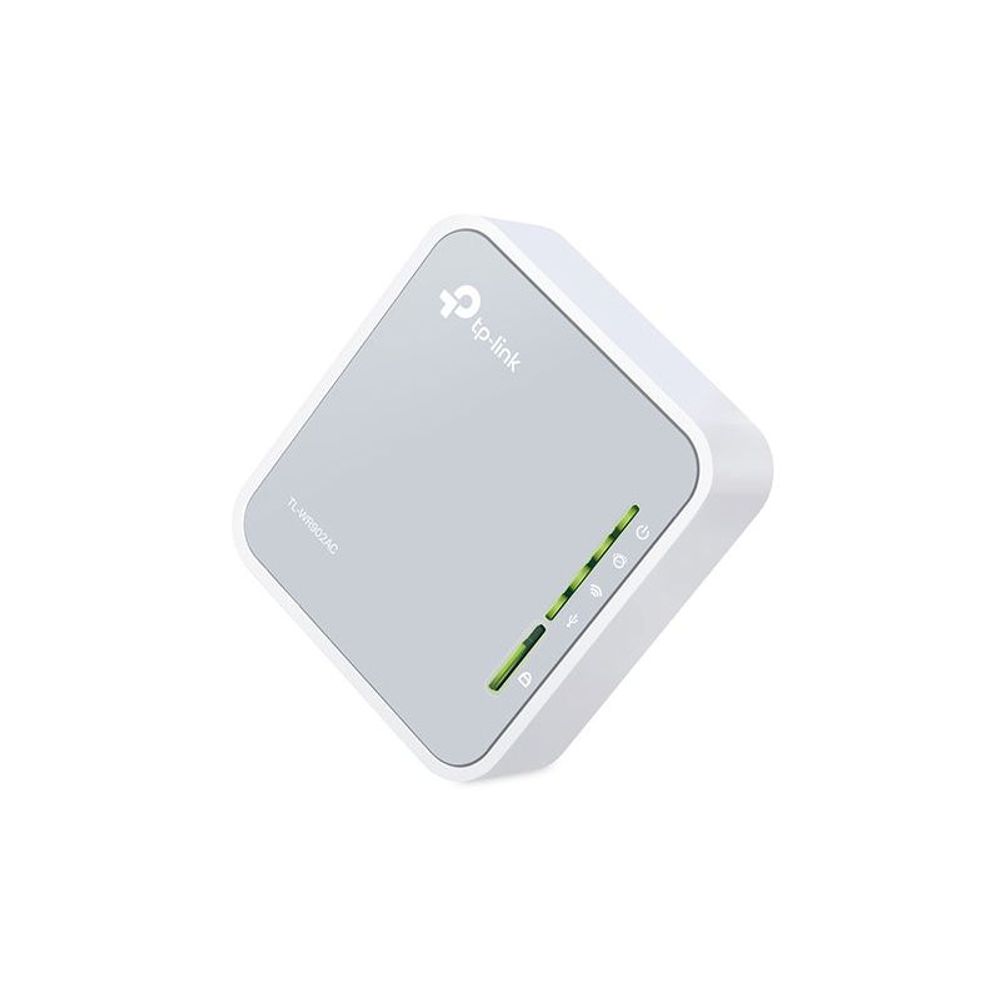

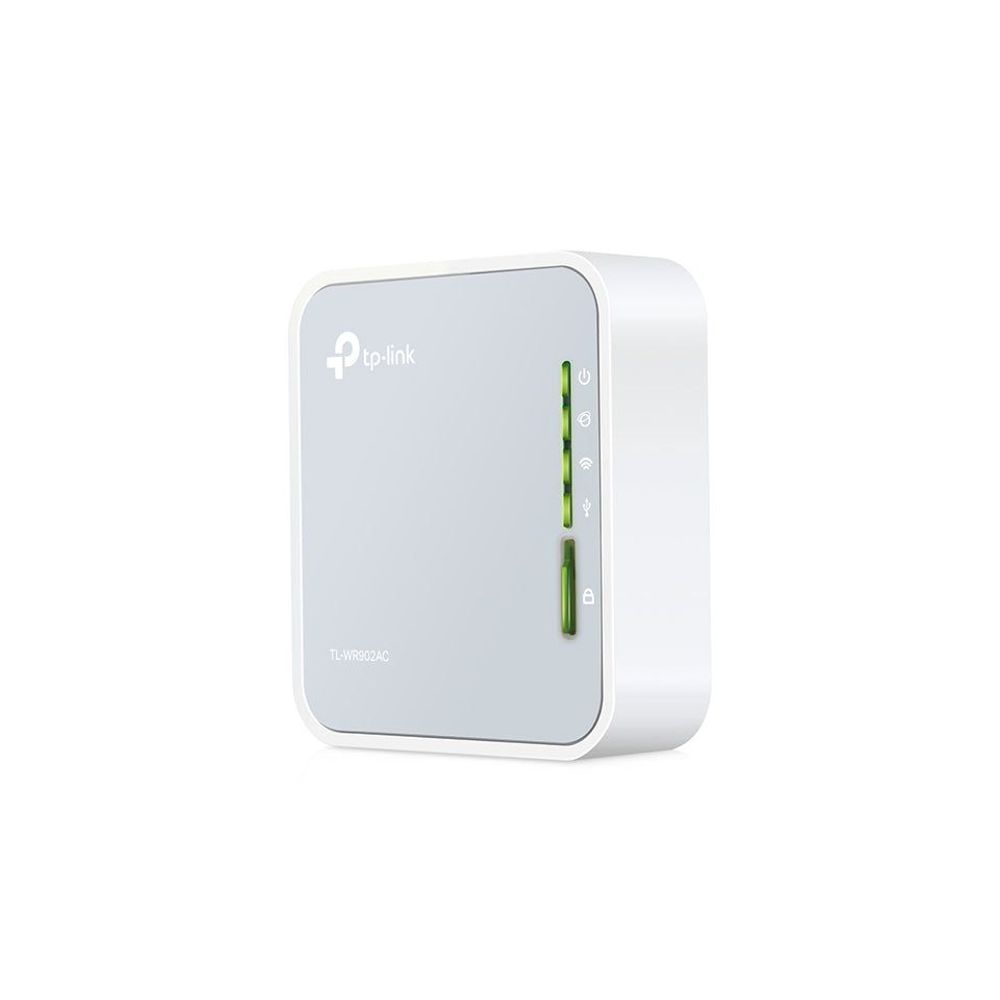

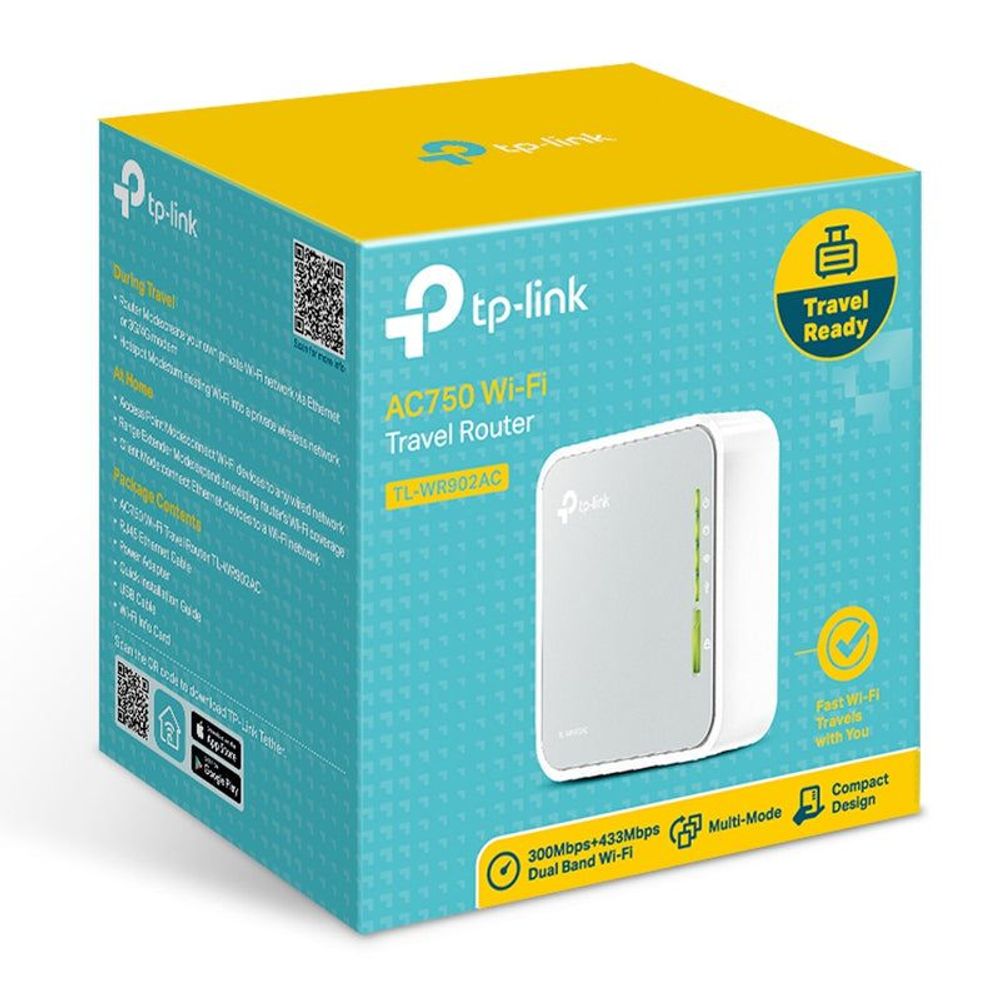

TL-WR902AC
AC750 Wireless Travel Router
- Travel-Sized Design – Conveniently small and light to pack and take on the road, creating Wi-Fi network via Ethernet or WISP
- Dual Band AC750 Wi-Fi – Strong, fast connection for HD streaming on all your devices
- One Switch for Multiple Modes – Perfect for Wi-Fi at home, your hotel room or on the road
- Flexible Power – Micro USB port to an adapter, portable charger or laptop
- Versatile USB – For file sharing or providing power supply to mobile devices
| WIRELESS | |
|---|---|
| Standards |
Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
AC750 5 GHz: 433 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range |
2 Bedroom Houses 2× Fixed Antennas (Internal) |
| WiFi Capacity |
Medium Dual-Band Allocate devices to different bands for optimal performance |
| Working Modes | Router Mode Access Point Mode Range Extender Mode Client Mode Hotspot Mode (WISP Mode) |
| HARDWARE | |
|---|---|
| Processor | Single-Core CPU |
| Ethernet Ports | 1× 10/100 Mbps WAN/LAN Port |
| USB Support | 1× USB 2.0 Port Supported Partition Formats: NTFS, FAT32 Supported Functions: FTP Server Media Server |
| Buttons | Reset Button Mode Switch |
| Power | 5 V ⎓ 2 A |
| SECURITY | |
|---|---|
| WiFi Encryption | WEP WPA WPA2 |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Virtual Server Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP Comex DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20dBm(2.4GHz) <23dBm(5GHz) |
| WiFi Reception Sensitivity | 11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 2.91 × 2.64 × 0.87 in (74 × 67 × 22mm) |
| Weight | 56.7 g |
| Package Contents | Wi-Fi Router TL-WR902AC Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
