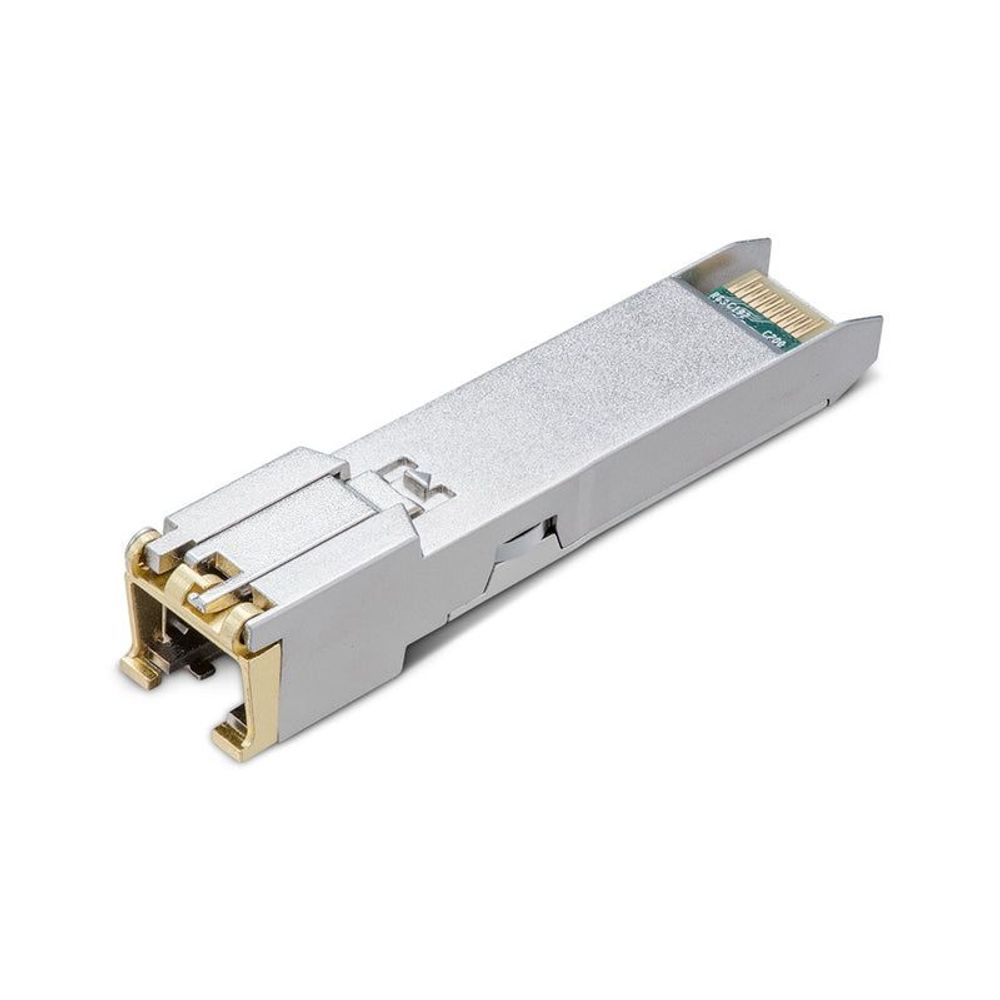

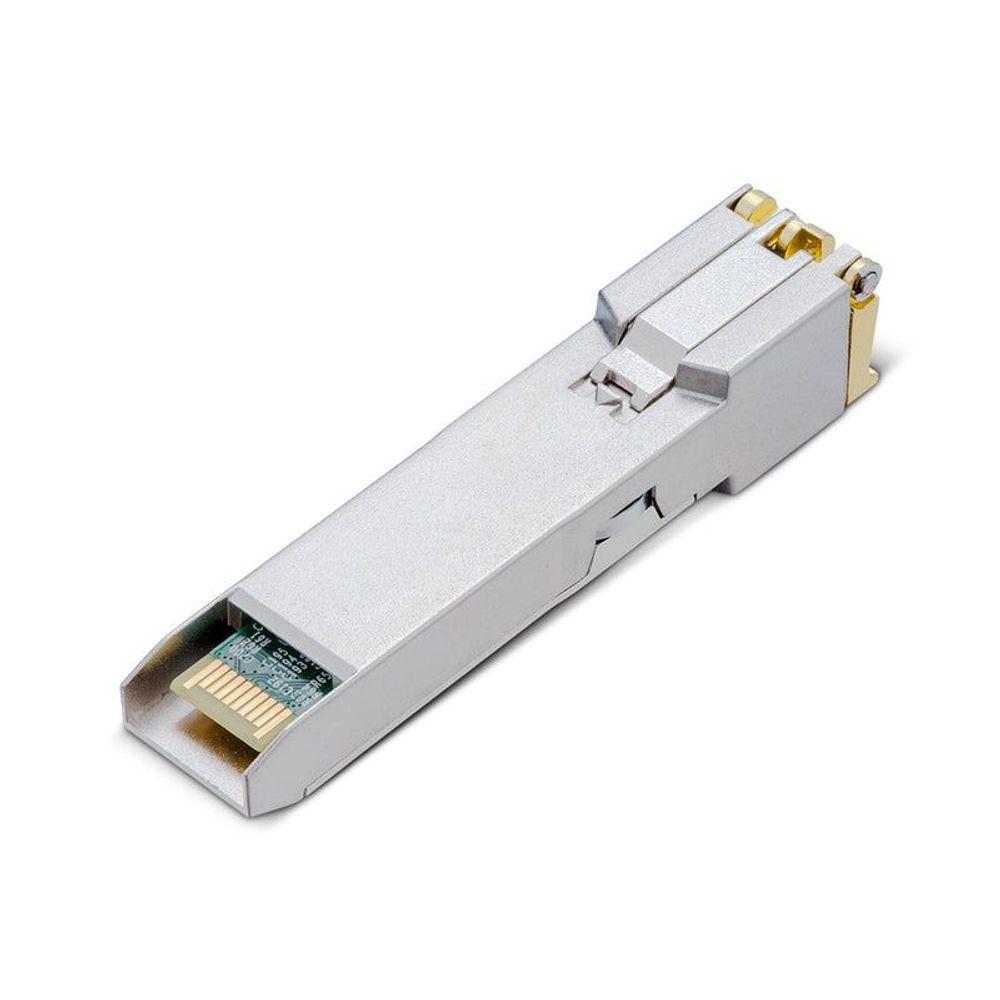

10G BASE-T RJ45 SFP+ Module

Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
Support DDM (Temperature and Voltage)
Hot-Pluggable SFP+ Footprint Features
Support TX Disable function
Commercial Product Operating Temperature Range: 0-70°C
Fully Metallic Enclosure for Low EMI

PACKAGE CONTENTS
Package Contents	• 10G BASE-T RJ45 SFP+ Module TL-SM5310-T • Installation Guide

HARDWARE FEATURES
Hot Swappable	Yes

TRANSCEIVER
Standards and Protocols	IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an
Power Supply	3.3V
Max. Cable Length	100BASE-TX: UTP cat .5 or above (max. 100m) 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m) 10GBASE-T: UTP cat.6a or above (max. 30m)
Data Rate	10.3 Gbps
Port Type	1× 10G RJ45 Port
Safety & Emission	FCC, CE, RoHS
Environment	Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–85 ℃ (-40–185 ℉)

For additional version information, please go to the support page.

*Data measured in a laboratory environment under specific conditions. The actual transmission distance may vary due to transmission speed or the cable quality and type.

^**Check the compatibility list of TL-SM5310T and enjoy the connection.

***It is recommended to place the modules separated by multiple optical transceivers or empty slots. When used in high-temperature environments, additional cooling must be applied.

Warranty

Brand

TP-LINK

Restock ETA (if applicable)

Product Details

Specifications

TP-LINK
HeadingTL-SM5310-T - TP-Link 10G BASE-T RJ45 SFP+ Module

Description

10G BASE-T RJ45 SFP+ Module

Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
Support DDM (Temperature and Voltage)
Hot-Pluggable SFP+ Footprint Features
Support TX Disable function
Commercial Product Operating Temperature Range: 0-70°C
Fully Metallic Enclosure for Low EMI

PACKAGE CONTENTS
Package Contents	• 10G BASE-T RJ45 SFP+ Module TL-SM5310-T • Installation Guide

HARDWARE FEATURES
Hot Swappable	Yes

TRANSCEIVER
Standards and Protocols	IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an
Power Supply	3.3V
Max. Cable Length	100BASE-TX: UTP cat .5 or above (max. 100m) 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m) 10GBASE-T: UTP cat.6a or above (max. 30m)
Data Rate	10.3 Gbps
Port Type	1× 10G RJ45 Port
Safety & Emission	FCC, CE, RoHS
Environment	Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–85 ℃ (-40–185 ℉)

For additional version information, please go to the support page.

*Data measured in a laboratory environment under specific conditions. The actual transmission distance may vary due to transmission speed or the cable quality and type.

^**Check the compatibility list of TL-SM5310T and enjoy the connection.

***It is recommended to place the modules separated by multiple optical transceivers or empty slots. When used in high-temperature environments, additional cooling must be applied.
