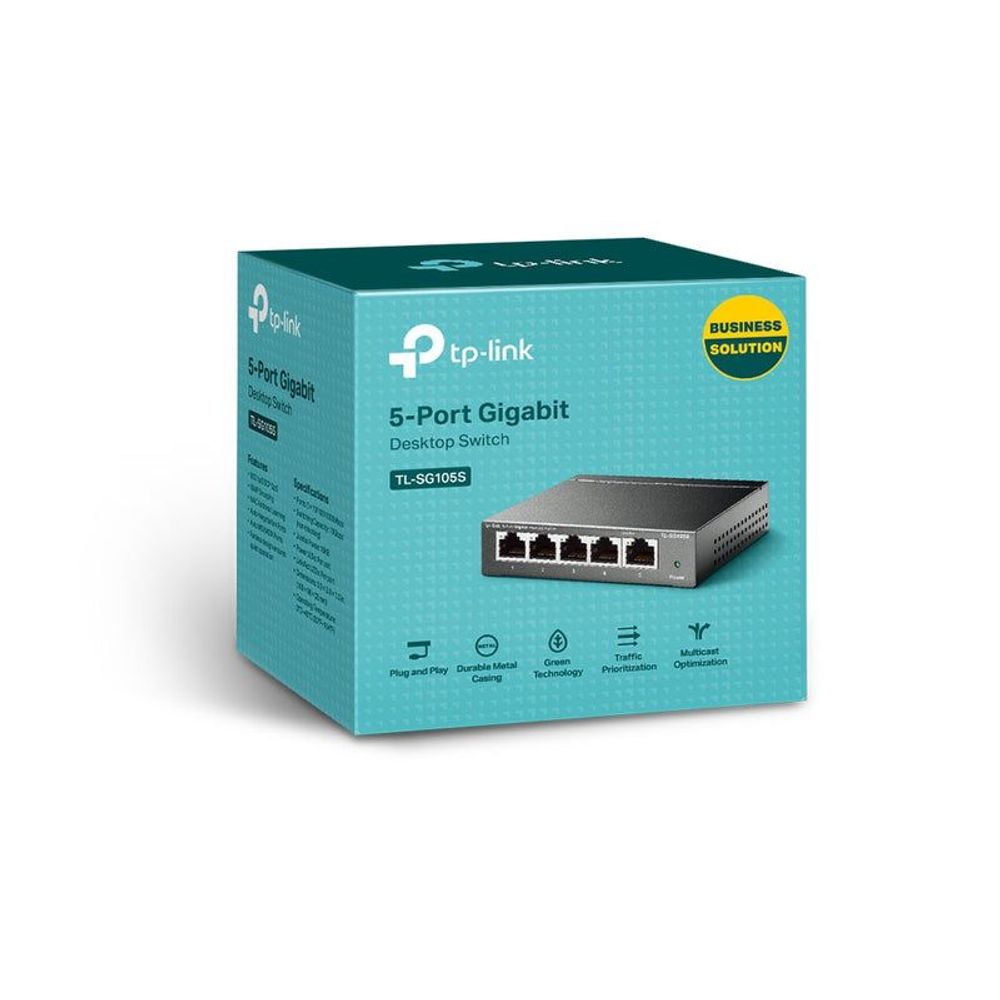

TP-Link 5-Port 10/100/1000Mbps Desktop Switch

5-Port Gigabit Desktop Switch

5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Plug and play, no configuration needed
Supports 802.1p/DSCP QoS and IGMP Snooping functions
Durable metal casing, desktop/wall-mounting options, and a fanless design
IEEE 802.3x flow control provides reliable data transfer
Green Ethernet technology reduces power consumption
Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface	5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 5 V DC / 0.6A)
LED Indicator	System Power Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )	3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption	3.1 W (220 V/ 50 Hz)
Max Heat Dissipation	10.57 BTU/h

PERFORMANCE
Packet Forwarding Rate	7.4 Mpps
MAC Address Table	2K
Packet Buffer Memory	1 Mb
Jumbo Frame	16 KB

SOFTWARE FEATURES
Advanced Features	Green Ethernet technology 802.3X Flow Control 802.1P/DSCP QoS IGMP Snooping Loop Prevention
Transfer Method	Store and Forward

OTHERS
Certification	CE, FCC, RoHS
Package Contents	5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide
Environment	Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing

Warranty

Brand

TP-LINK

Restock ETA (if applicable)

Product Details

Specifications

TP-LINK
HeadingTL-SG105S - TP-Link TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch

Description

TP-Link 5-Port 10/100/1000Mbps Desktop Switch

5-Port Gigabit Desktop Switch

5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Plug and play, no configuration needed
Supports 802.1p/DSCP QoS and IGMP Snooping functions
Durable metal casing, desktop/wall-mounting options, and a fanless design
IEEE 802.3x flow control provides reliable data transfer
Green Ethernet technology reduces power consumption
Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface	5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 5 V DC / 0.6A)
LED Indicator	System Power Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )	3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption	3.1 W (220 V/ 50 Hz)
Max Heat Dissipation	10.57 BTU/h

PERFORMANCE
Packet Forwarding Rate	7.4 Mpps
MAC Address Table	2K
Packet Buffer Memory	1 Mb
Jumbo Frame	16 KB

SOFTWARE FEATURES
Advanced Features	Green Ethernet technology 802.3X Flow Control 802.1P/DSCP QoS IGMP Snooping Loop Prevention
Transfer Method	Store and Forward

OTHERS
Certification	CE, FCC, RoHS
Package Contents	5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide
Environment	Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
