Description
RE705X

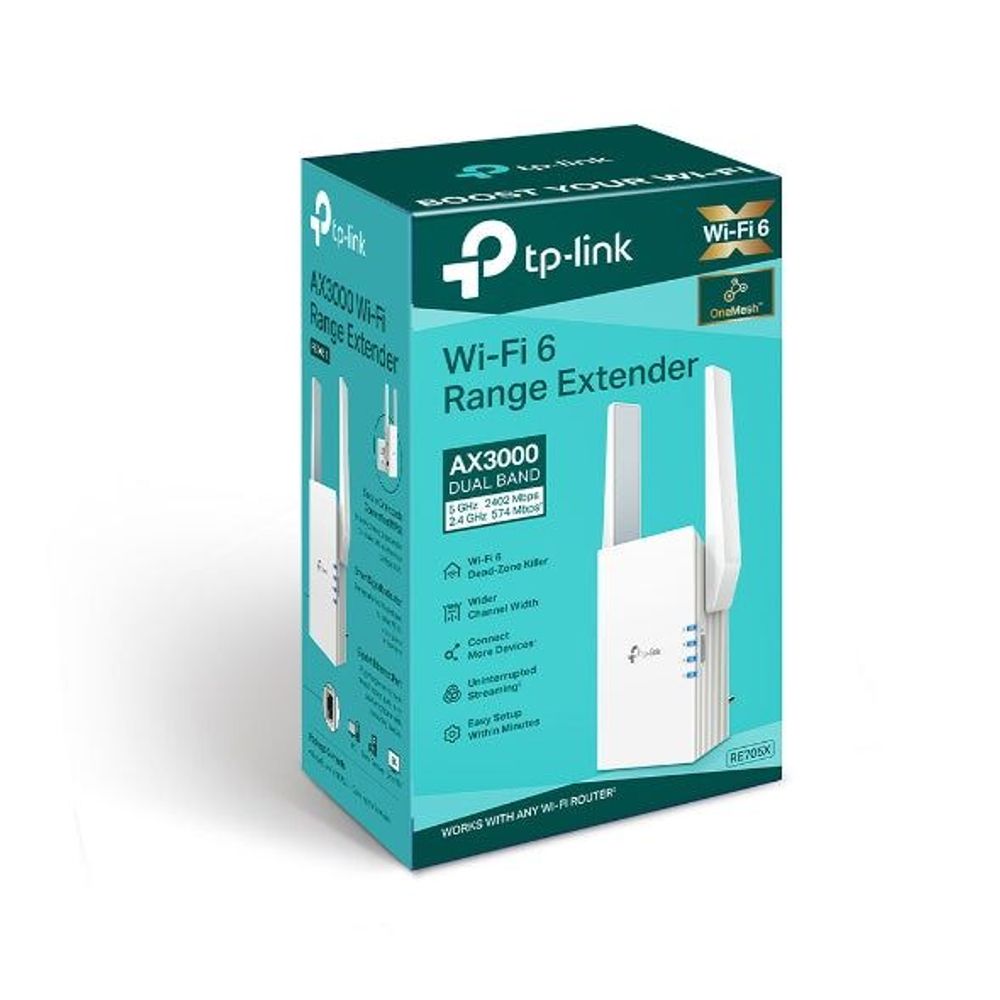

AX3000 Mesh WiFi 6 Extender
- Dual Band WiFi 6 - Separates 5 GHz (2402 Mbps) and 2.4 GHz (574 Mbps) WiFi bands for faster speeds and greater capacity with the latest technology
- Uninterrupted Streaming - Easily create a TP-Link OneMesh™ network for seamless whole home WiFi coverage
- AP Mode - Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability
- Gigabit Ethernet Port - Provides high-speed wired access, ideal for smart TVs, PCs, and game consoles
- App Control - Easy Setup and management with your network using the TP-Link Tether app
| WIRELESS | |
|---|---|
| Working Modes | Range Extender / Access Point |
| HARDWARE FEATURES | |
|---|---|
| Ports | 1 Gigabit Ethernet Port |
| Button | WPS Button, Reset Button |
| Input Power | 100-240V~50/60Hz |
| Power Consumption | 12.6W |
| Dimensions ( W x D x H ) | 97*46*158 |
| Antenna | 2 External Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 574 Mbps at 2.4GHz, 2402 Mbps at 5GHz |
| Reception Sensitivity | 5GHz: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -62dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -61dBm 11ax HE160 MCS11: -59dBm 2.4GHz: 11g 6Mbps:-96dBm 11g 54Mbps:-78dBm 11ax HE20 MCS0: -95dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -93dBm 11ax HE40 MCS11: -62dBm |
| Transmit Power | CE: 2.4GHz ≤16dBm, 5GHz ≤21dBm |
| Wireless Modes | Range Extender / Access Point |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Statistics |
| Wireless Security | WEP, WPA, WPA2, WPA3 |
| Transmission Power | CE: 2.4GHz ≤16dBm, 5GHz ≤21dBm |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | Wi-Fi Range Extender RE705X Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
