550W AC Power Supply Module

Up to 550 watts output power
12 V DC output voltage
Fully hot-swappable, ensuring no system interruption during installation or replacement
Output over-voltage/over-current/short circuit/over-temperature protection
Suitable for SX6632YF, S7500-26XF6Y

What This Product Does

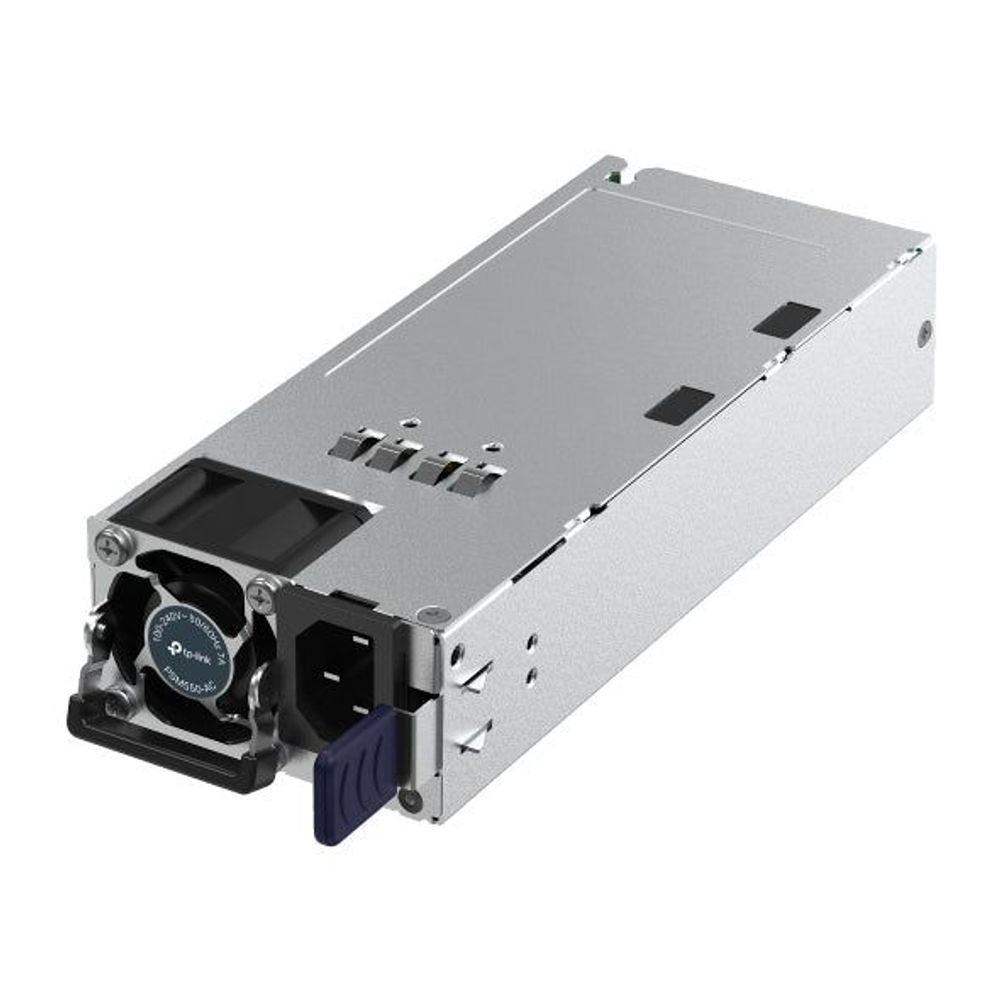

The TP-Link Power Supply Module PSM550-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with a maximum output power of 550 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple Omada and Omada Pro switch models, such as SX6632YF, S7500-26XF6Y.

REDUNDANT POWER SUPPLY
AC Power Input	100-240V~ 50/60Hz 7A
DC Power Output	• 12V main: 12 VDC/45 A (Maximum) • 12Vsb: 12 VDC/2.1A (Maximum)
Dimensions	185×73.5×40 mm
Maximum Power Output	550W
Environment	• Operating Temperature (sea level to 3000 m): 0˚C–55˚C (32˚F to 131˚F) • Operating Temperature (sea level to 5000 m): 0˚C–45˚C (32˚F to 113˚F) • Storage Temperature: -40℃–70℃ (-40℉~158℉) • Operating Humidity: 5%–90% RH, Non-condensing • Storage Humidity: 5%–95% RH, Non-condensing

Warranty

Brand

TP-LINK

Restock ETA (if applicable)

Product Details

Specifications

TP-LINK
HeadingTL-PSM550-AC - TP-Link 550W AC Power Supply Module

Description

550W AC Power Supply Module

Up to 550 watts output power
12 V DC output voltage
Fully hot-swappable, ensuring no system interruption during installation or replacement
Output over-voltage/over-current/short circuit/over-temperature protection
Suitable for SX6632YF, S7500-26XF6Y

What This Product Does

REDUNDANT POWER SUPPLY
AC Power Input	100-240V~ 50/60Hz 7A
DC Power Output	• 12V main: 12 VDC/45 A (Maximum) • 12Vsb: 12 VDC/2.1A (Maximum)
Dimensions	185×73.5×40 mm
Maximum Power Output	550W
Environment	• Operating Temperature (sea level to 3000 m): 0˚C–55˚C (32˚F to 131˚F) • Operating Temperature (sea level to 5000 m): 0˚C–45˚C (32˚F to 113˚F) • Storage Temperature: -40℃–70℃ (-40℉~158℉) • Operating Humidity: 5%–90% RH, Non-condensing • Storage Humidity: 5%–95% RH, Non-condensing
