Description
PoE++ Injector
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need

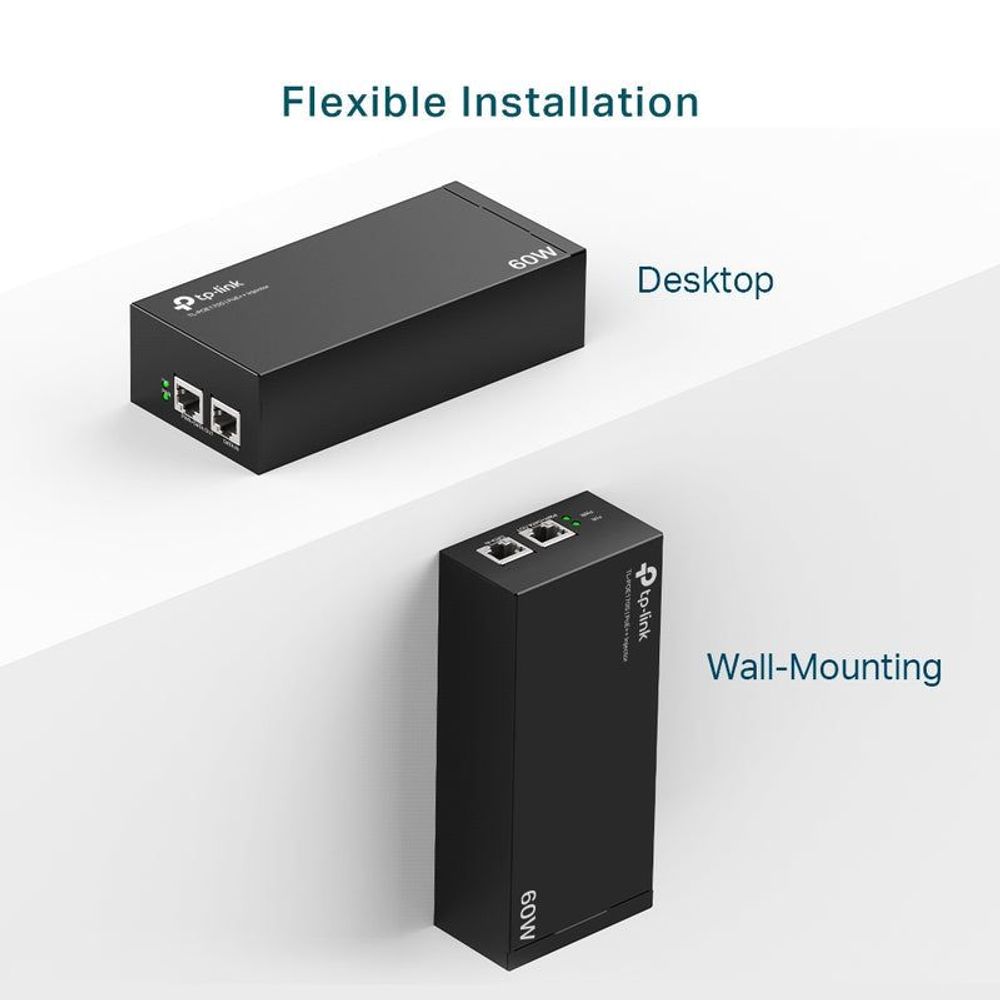

- Wall-mounting and desktop design accommodates most installation scenarios

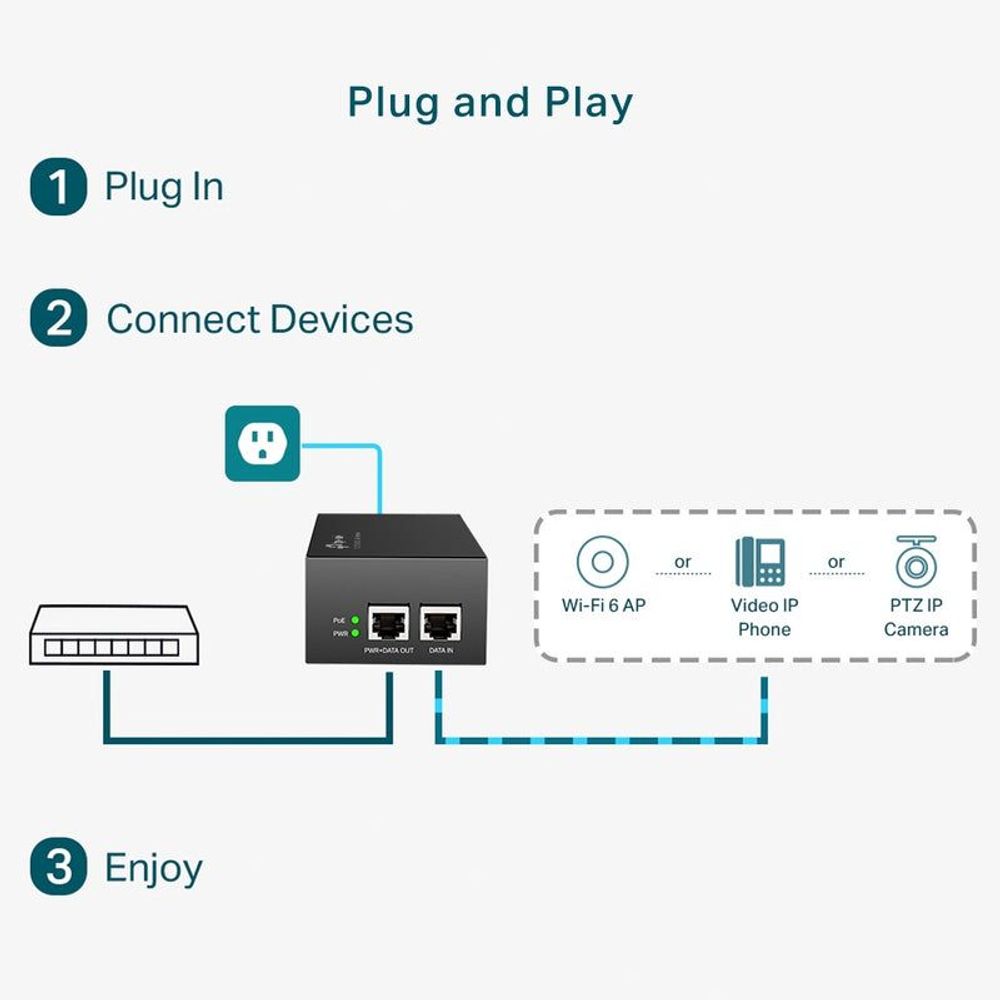

- Plug & Play installation, requires no configuration
- Integrated power supply
- Durable metal casing
What This Product Does

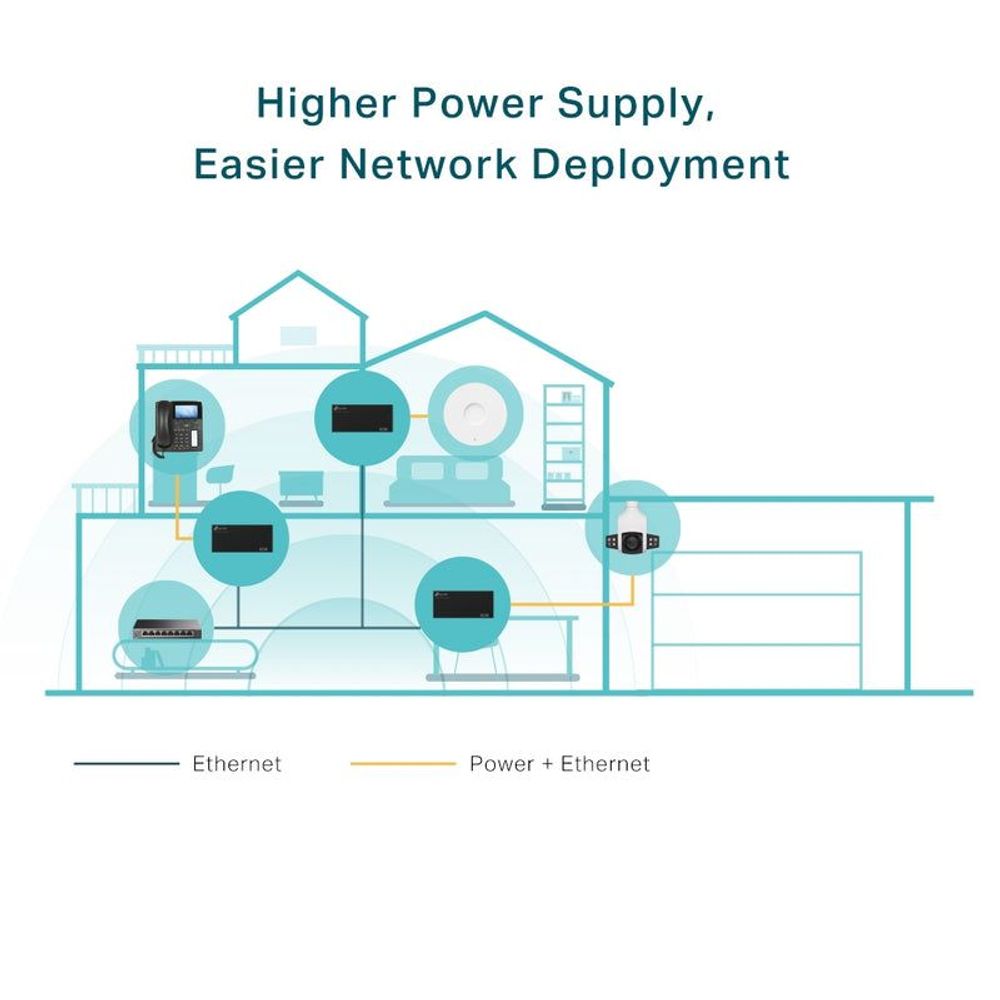

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt* standards with up to 60 W power supply. It can easily expand your network to where there are no power line or outlet, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor. To power up these EAPs, TL-POE160S is recommended to use.
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt* |
| GENERAL | |
|---|---|
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C to 45°C (32°F to 113°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing |
| Material | Metal Casing |
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | PoE++ Injector TL-POE170S Installation Guide Power Cord RJ45 Cable |
| HARDWARE FEATURES | |
|---|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |

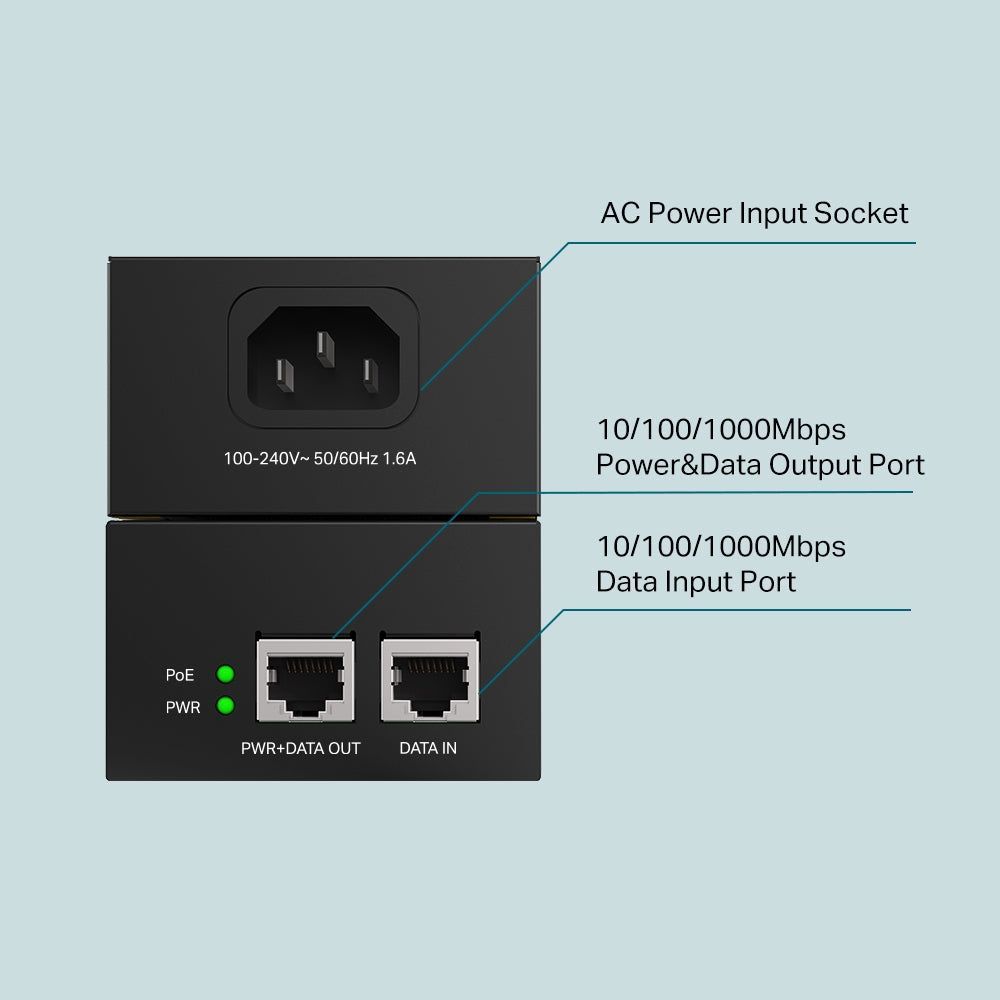

| Ports | 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket |
| Power Consumption | Input: 100-240 V, 50/60 Hz, 1.6A Output: Auto-determine the necessary power requirements (max. 60 W) |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play |

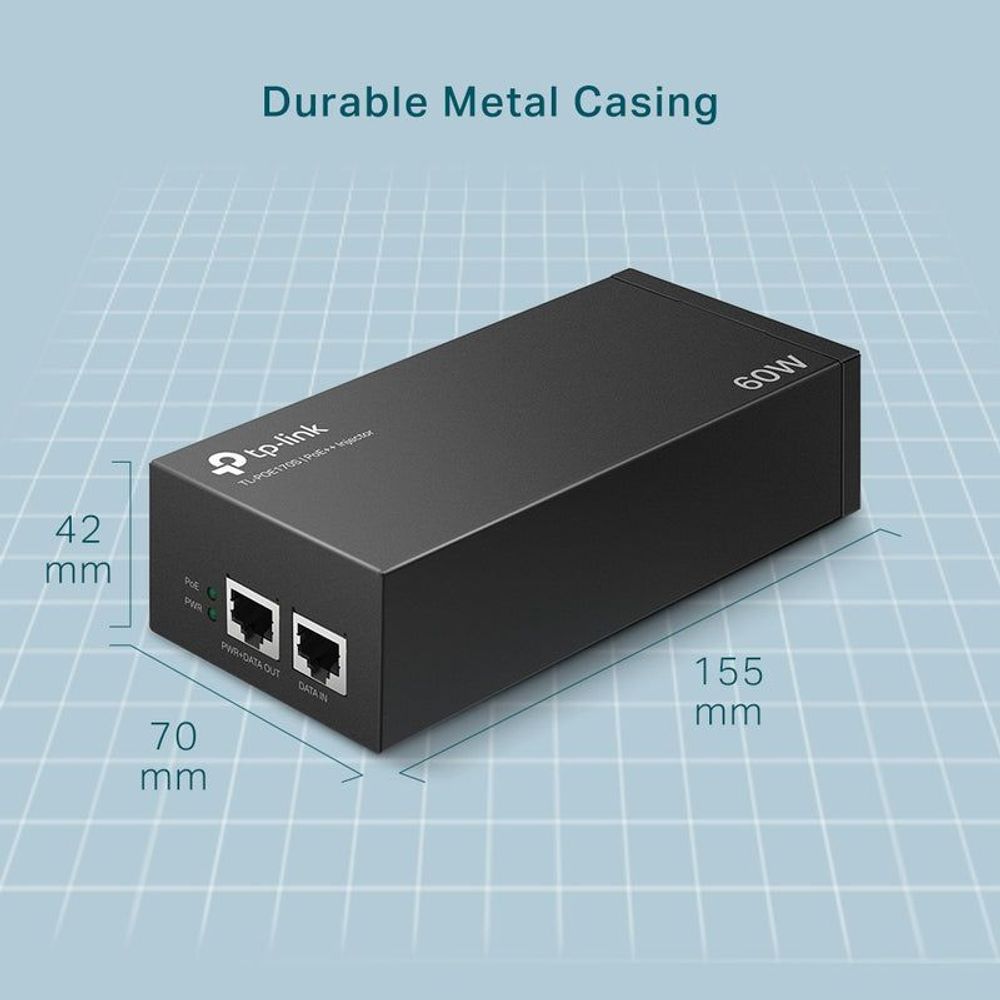

| Dimensions ( W x D x H ) | 6.1*2.8*1.7 in (155*70*42 mm) |
*TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor. To power up these EAPs, TL-POE160S is recommended to use.
