10/100 Mbps WDM Media Converter

Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

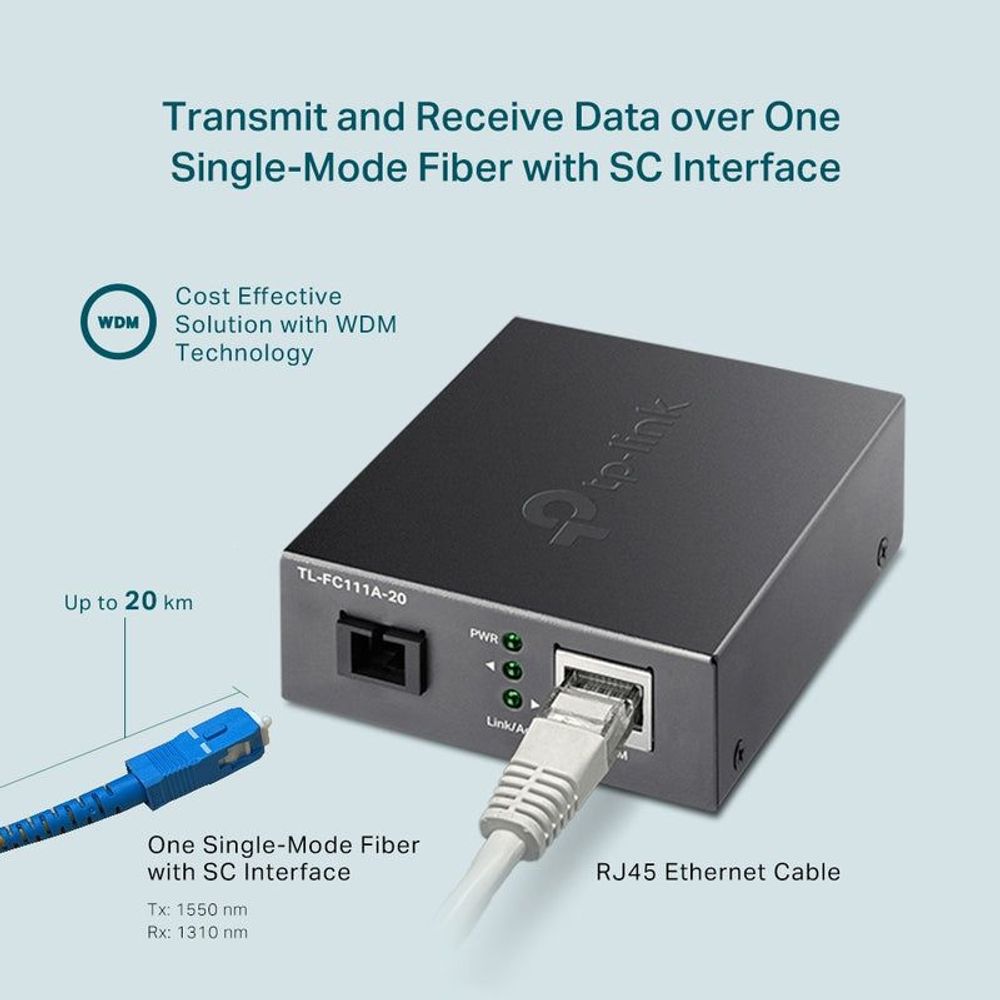

Adopts WDM technology, transmitting and receiving data on one single fibre
Extends fibre distance up to 20km

What This Product Does

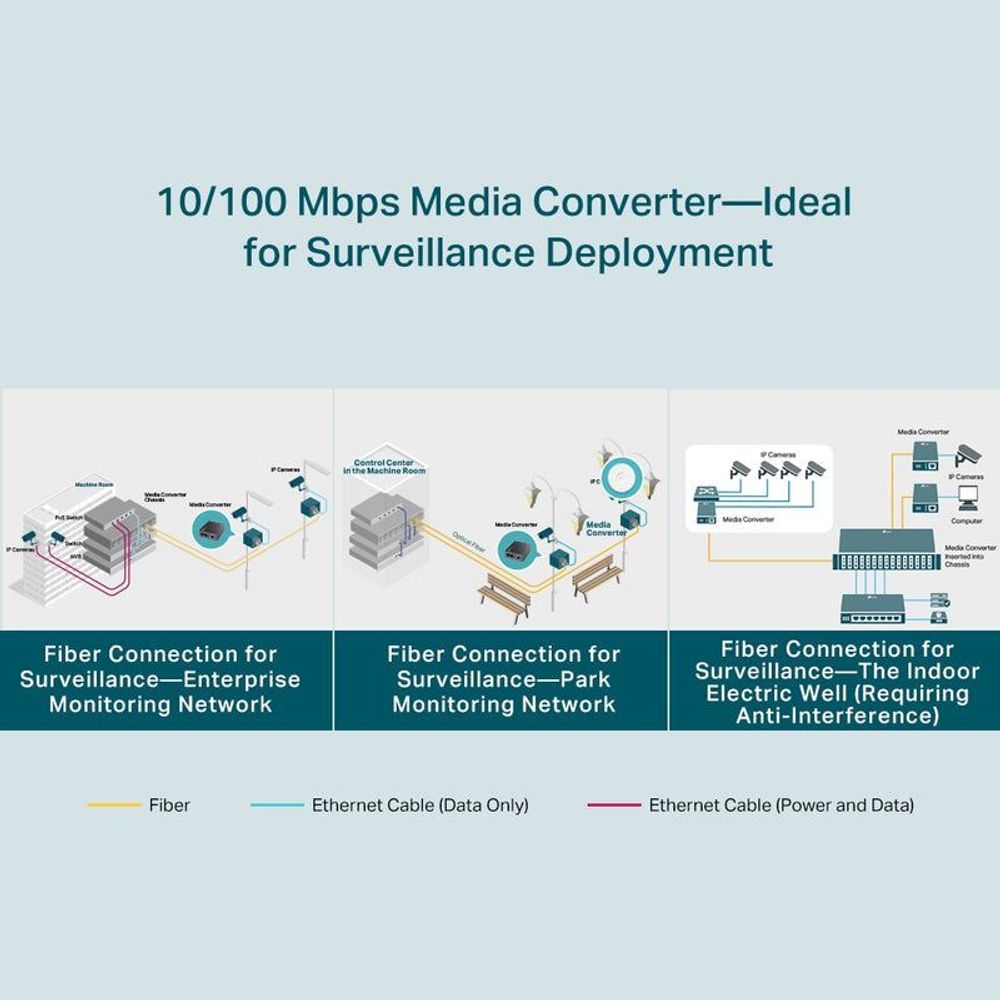

TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fibre port, which can convert between electrical and optical signals. And long-distance data transmission through optical fibre can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works

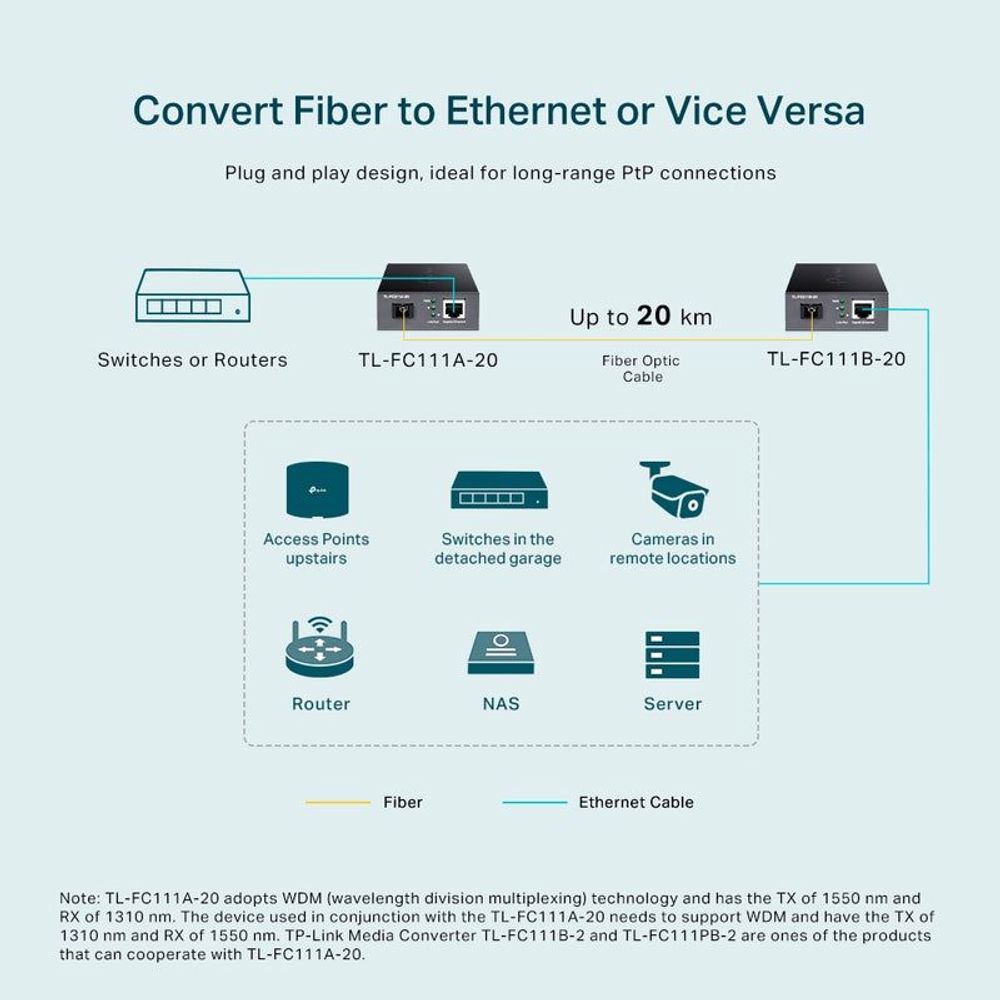

TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single-mode fibre, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fibre. Therefore, the terminal device used in conjunction with the TL-FC111A-20 should send data at a wavelength of 1310nm and receive data at a wavelength of 1550nm. TP-Link another media converter TL-FC111B-20 is one of the products that can cooperate with TL-FC111A-20.

Other Features

Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

NETWORK
Standards and Protocols	IEEE802.3, IEEE802.3i, IEEE802.3u

ENVIRONMENT
Operating Temperature	0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature	-40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% RH non-condensing

HARDWARE FEATURES

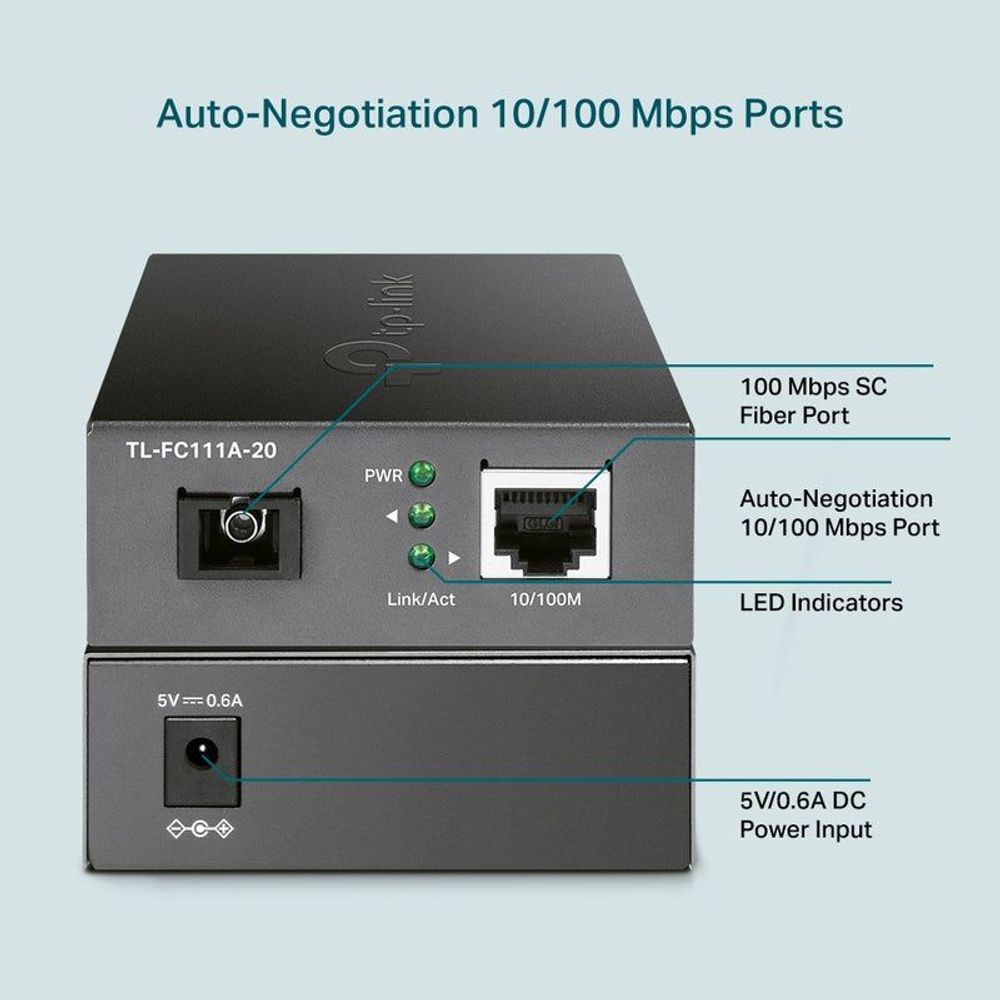

Interface	• 1× 100 Mbps SC Fiber Port • 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media	100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
Power Supply	External Power Adapter: 5 V/0.6 A
LED	PWR, Link/Act
Dimensions ( W x D x H )	94.57327 mm
Wave Length	1550 nm TX, 1310 nm RX

MEDIA CONVERTER & MODULE
Fiber Type	9/125 μm single-mode fber (≤20 km)

OTHERS
Package Contents	• Media Converter TL-FC111A-20 • Power Adapter • Installation Guide

For additional version information, please go to the support page.
