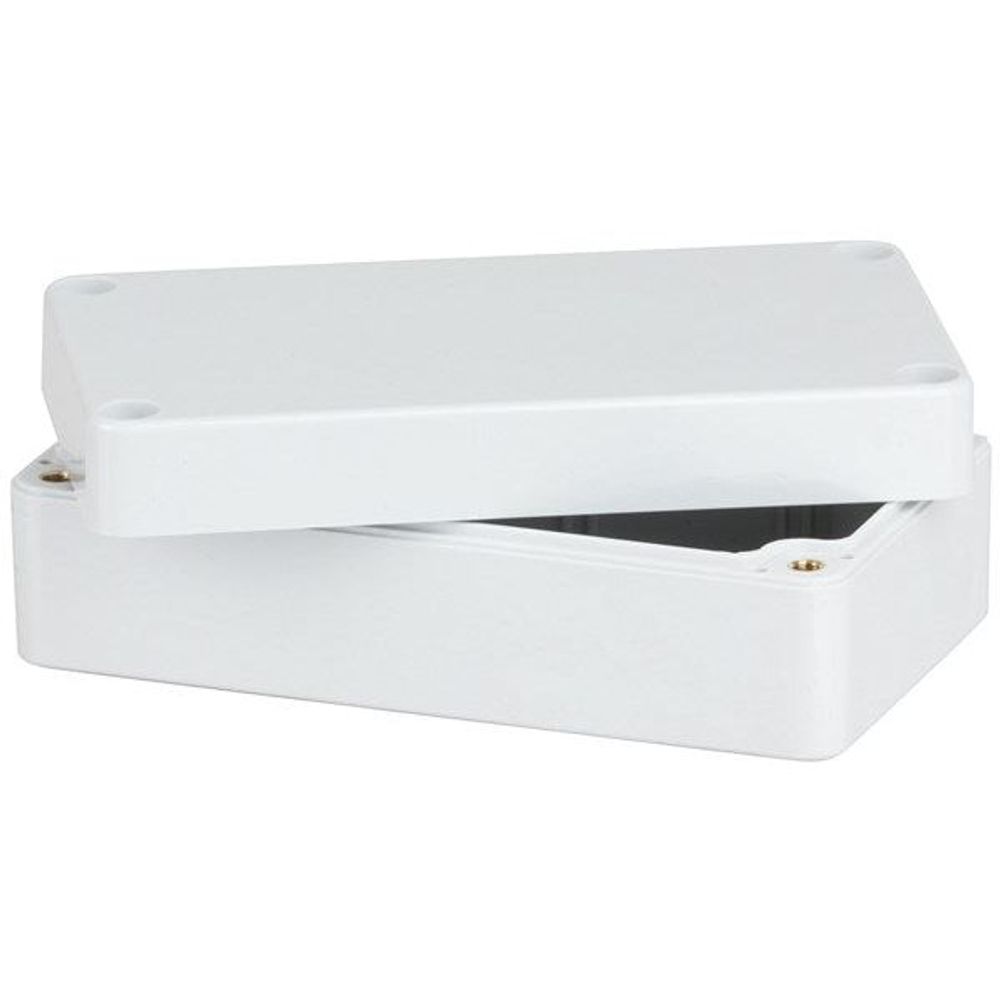

HB6212
Features:
• Made with Polycarbonate material and moulded in light grey.
• Operating temperature : minus 40C to 125C
• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)
• Internal guide slots for mounting PCB assemblies vertically
• External mounting plate (4pcs) made of thermoplastic are available as an option
• External hinge kit (2pcs) made of thermoplastic are available as an option.
• Dimensions 115x65x40mm
Specifications
Specifications
Colour : Light Grey |
IP Rating : 65 |
Length : 115mm |
Width : 65mm |
Height : 40mm |
Packaged Volume : 0.48l |
Packaged Weight : 0.12kg |
Packaged Length : 13.2cm |
Packaged Width : 8.4cm |
Packaged Height : 4.3cm |
Material : Polycarbonate |
Lid Screws : 4pc |
Availability : Stocked item |
