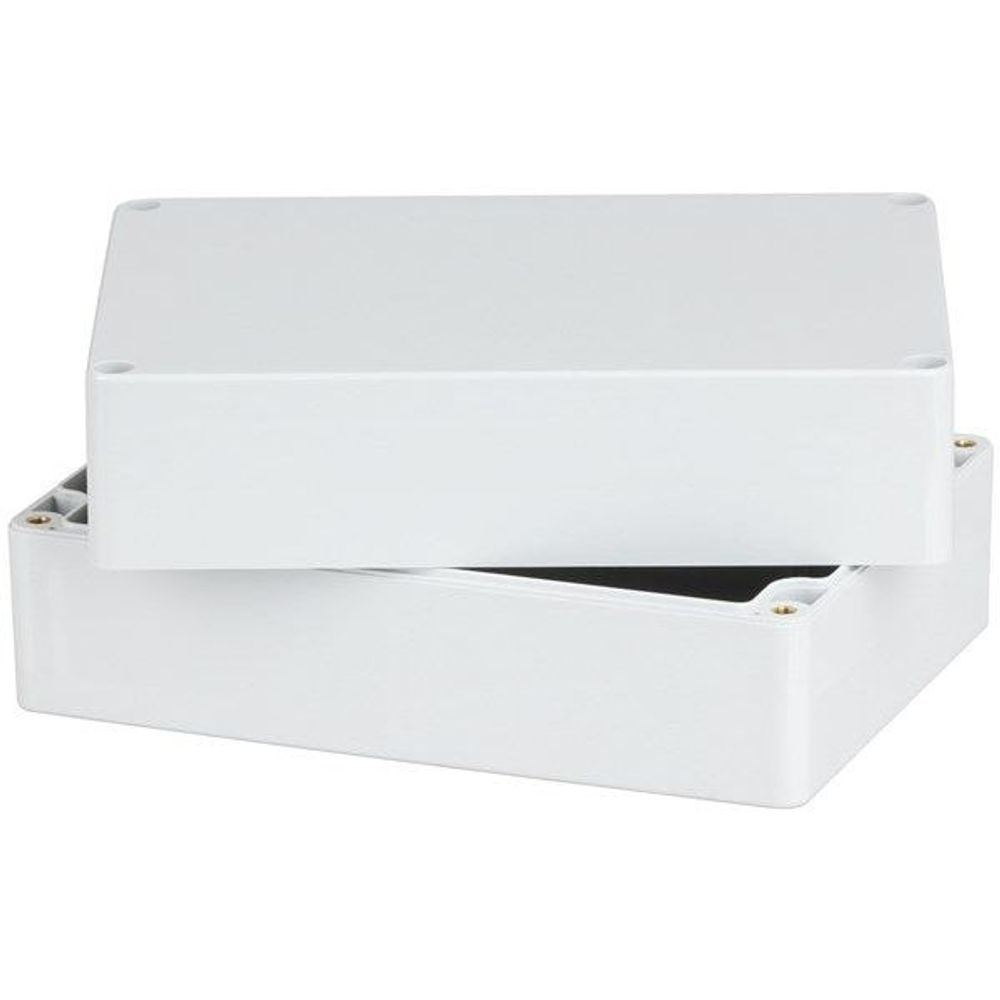

HB6224
Features:
• Made with Polycarbonate material and moulded in light grey.
• Operating temperature : minus 40C to 125C
• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)
• Internal guide slots for mounting PCB assemblies vertically
Specifications
Specifications
Colour : Light Grey |
IP Rating : IP65 |
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust |
Liquid/Moisture Ingress Protection : 5 - Water jets |
Width : 171mm |
Height : 80mm |
Depth : 121mm |
Packaged Volume : 2.18l |
Packaged Weight : 0.37kg |
Packaged Length : 18.1cm |
Packaged Width : 14cm |
Packaged Height : 8.6cm |
Material : Polycarbonate |
PCB Internal Guide Slots : true |
Gasket sealing system : true |
Lid Screws : 4pc |
Availability : Stocked item |
