Description

XC9044

Raspberry Pi Compatible

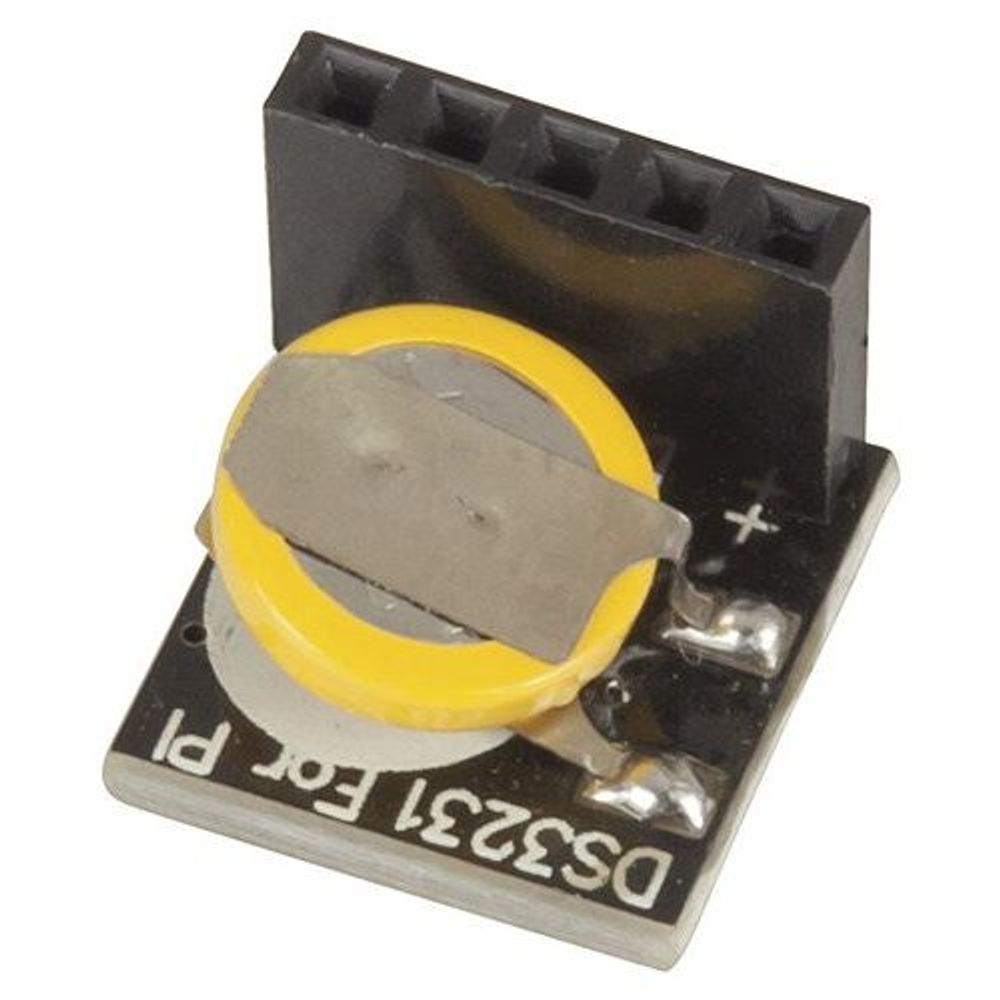

The XC9044 is a tiny RTC module which uses I2C to communicate with the Raspberry Pi. Once set up, it can be used to provide a battery backed clock source, and is ideal for situations where the Pi may be powered off and on or out of range of Wi-Fi where it cannot get a reliable time fix.

Features:

Five Pin header that plugs straight onto the Pi's GPIO pins

I2C interface

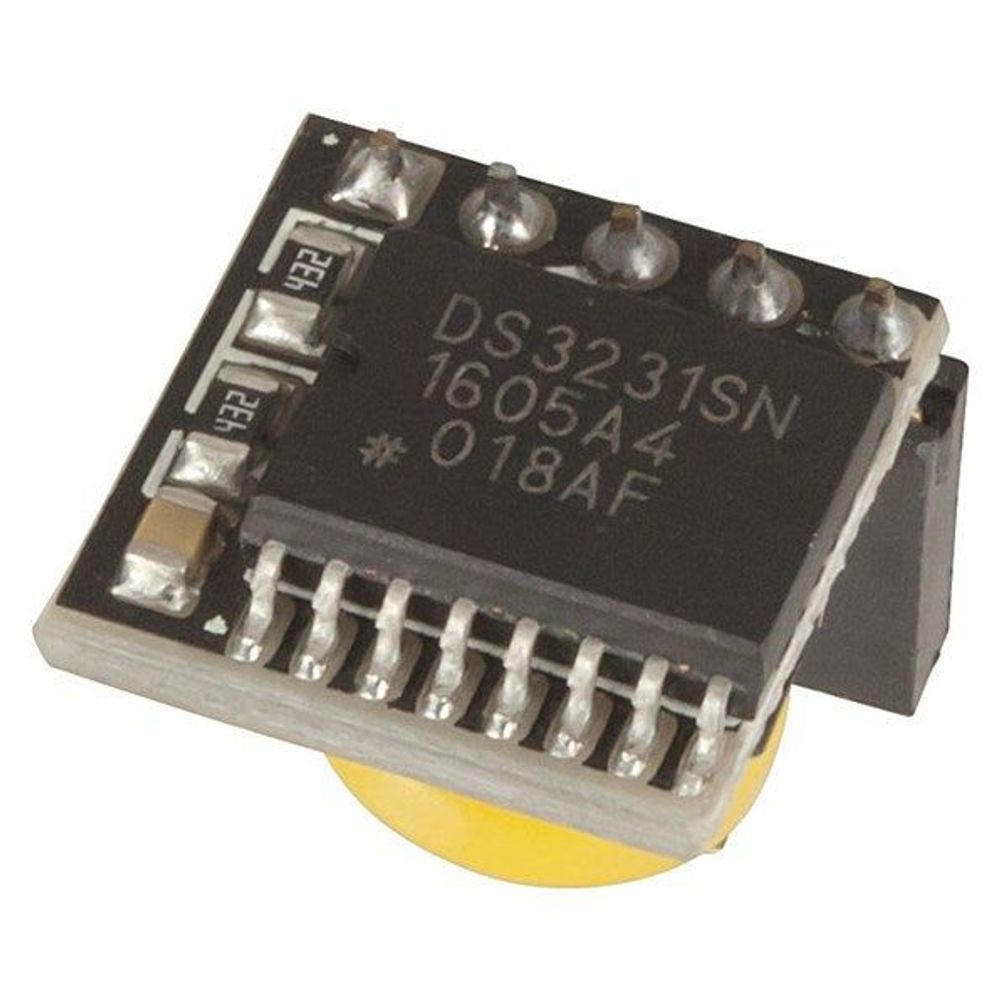

Based on highly accurate DS3231 IC

Backup Battery : CR927

WARNING: KEEP OUT OF REACH OF CHILDREN.

Button Cell Batteries are Hazardous (new or used). Keep batteries away from children. These Batteries
can cause severe or fatal injuries within 2 hours or less if swallowed or placed inside any part of the body.
Medical attention should be sought if it is suspected a battery has been consumed or inserted; Call the 24-hour
Poisons Information Centre in Australia on 131126 or New Zealand on 0800 764 766 or contact your country's
emergency department.

Specifications

Contains Button Cell : true

Length : 14mm

Width : 14mm

Packaged Volume : 0.12l

Packaged Weight : 0.01kg

Packaged Length : 13.4cm

Packaged Width : 8cm

Packaged Height : 1.1cm

Availability : Stocked item
