Description
QC3669

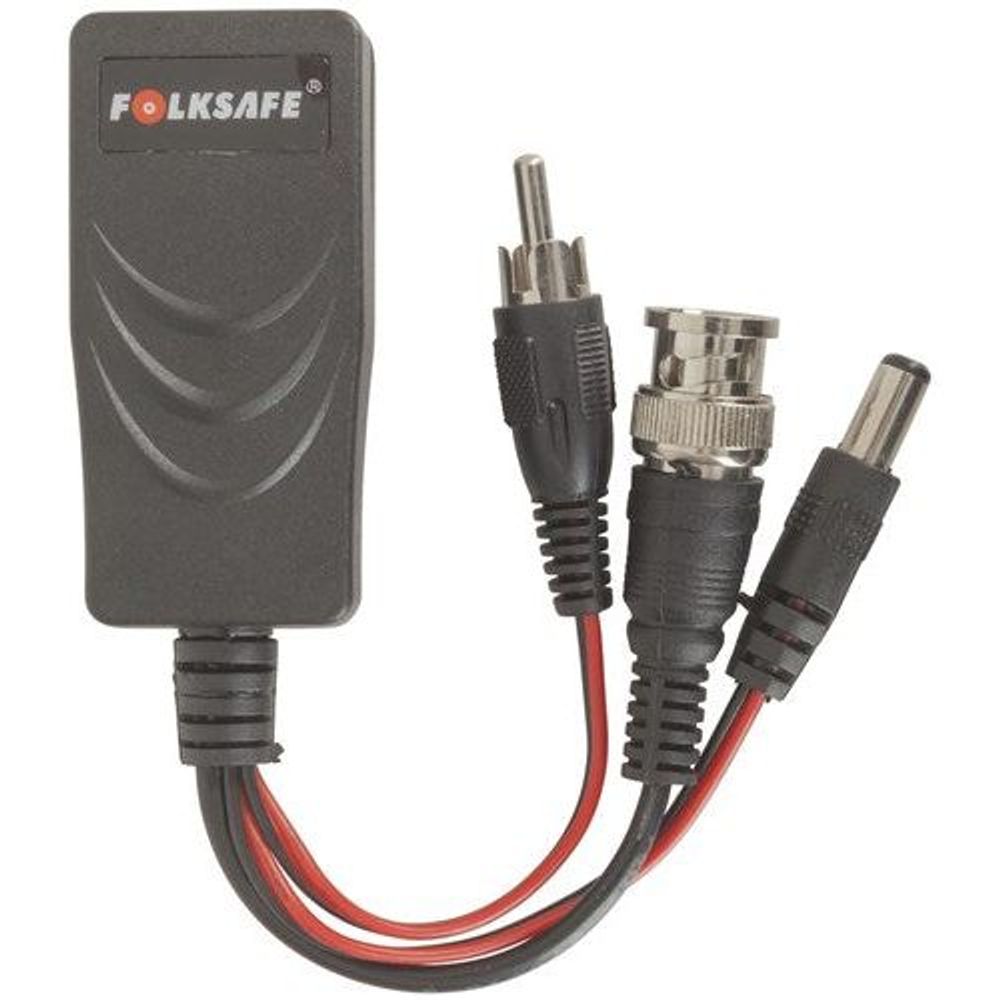

1 Year WarrantySimplify your CCTV installation by combining composite video, audio and powerfor transmission over one UTP Cat6, 5 or 5e cable. The balun accepts all composite video signals such as AHD, TVI and CVI. This kit includes two baluns; one to act as the transmitter and the other the receiver. It is suitable for CCTV setups, multimedia presentations and video conferencing. Features: • BNC, RCA Audio & DC Connection • TVS Surge Protection • 60dB Crosstalk & Noise Immunity • Camera Support: AHD, TVI, CVI, Analogue
Specifications
Specifications
| Length : 60mm |
| Width : 19mm |
| Height : 28mm |
| DC Plugpack Voltage : 12V, 24V |
| Connection Size (Inner Diameter) : 2.1mm |
| Packaged Volume : 0.66l |
| Packaged Weight : 0.11kg |
| Packaged Length : 14cm |
| Packaged Width : 10.5cm |
| Packaged Height : 4.5cm |
| Signal Type : Composite Video (CVBS)AudioPower |
| Input Connection : BNCRCABarrel Plug DC Power Plug |
| Connecting Cable : Cat5 UTPCat5e UTPCat6 UTP |
| Maximum Distance Between Baluns (cat5e) : 300m |
| Number of Cables : 1pc |
| Output Connection : BNCRCABarrel Plug DC Power Plug |
| Number of Outputs : 1pc |
| Availability : Stocked item |
