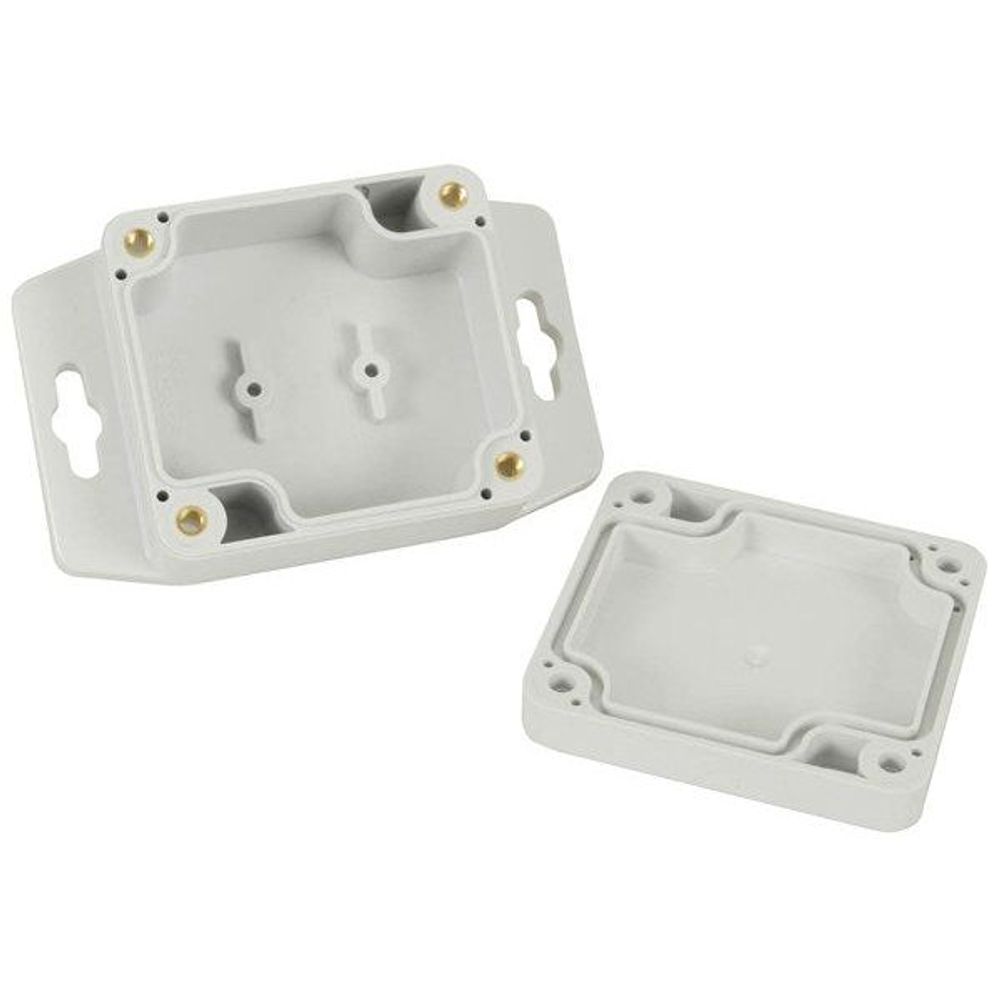

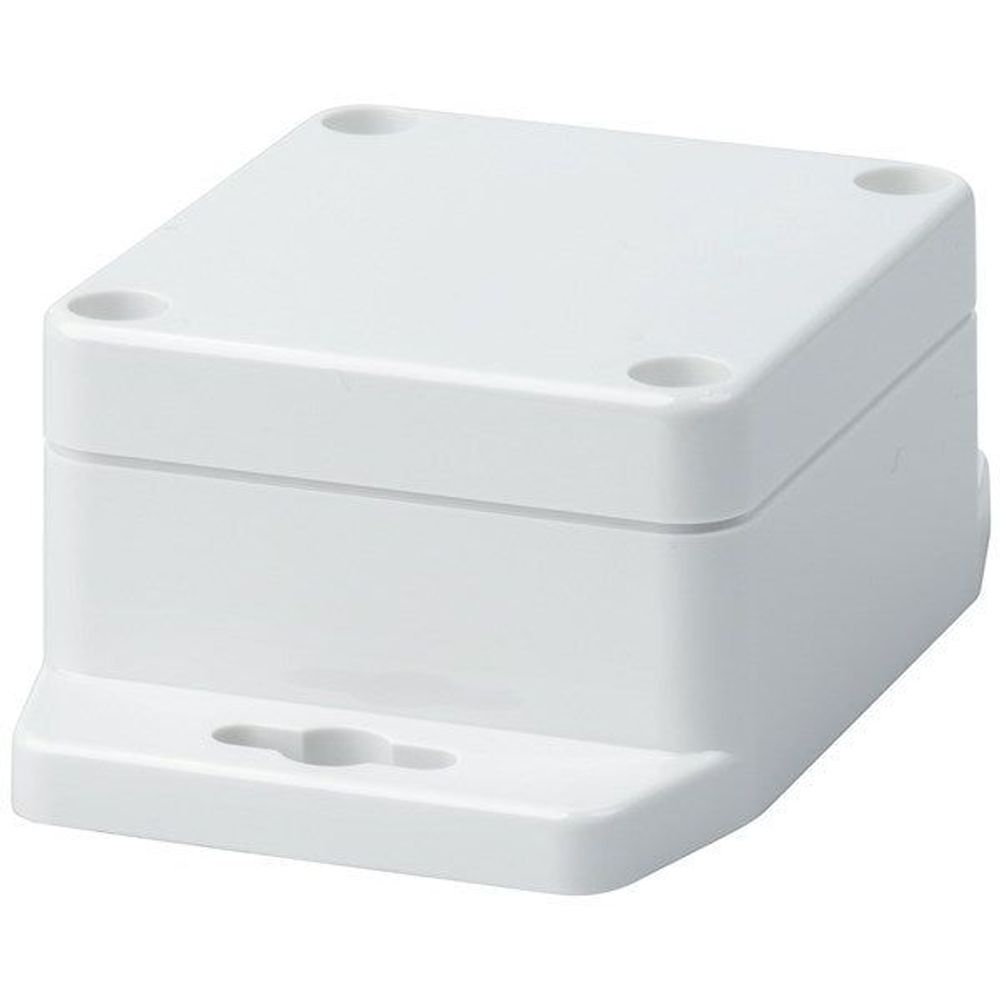

HB6211
Enclosures made with Polycarbonate material• Moulded in light grey.
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically)
Specifications
Specifications
Packaged Volume : 0.21l |
Packaged Weight : 0.08kg |
Packaged Length : 10cm |
Packaged Width : 6cm |
Packaged Height : 3.5cm |
Length : 64mm |
Width : 58mm |
Height : 35mm |
Availability : Stocked item |
