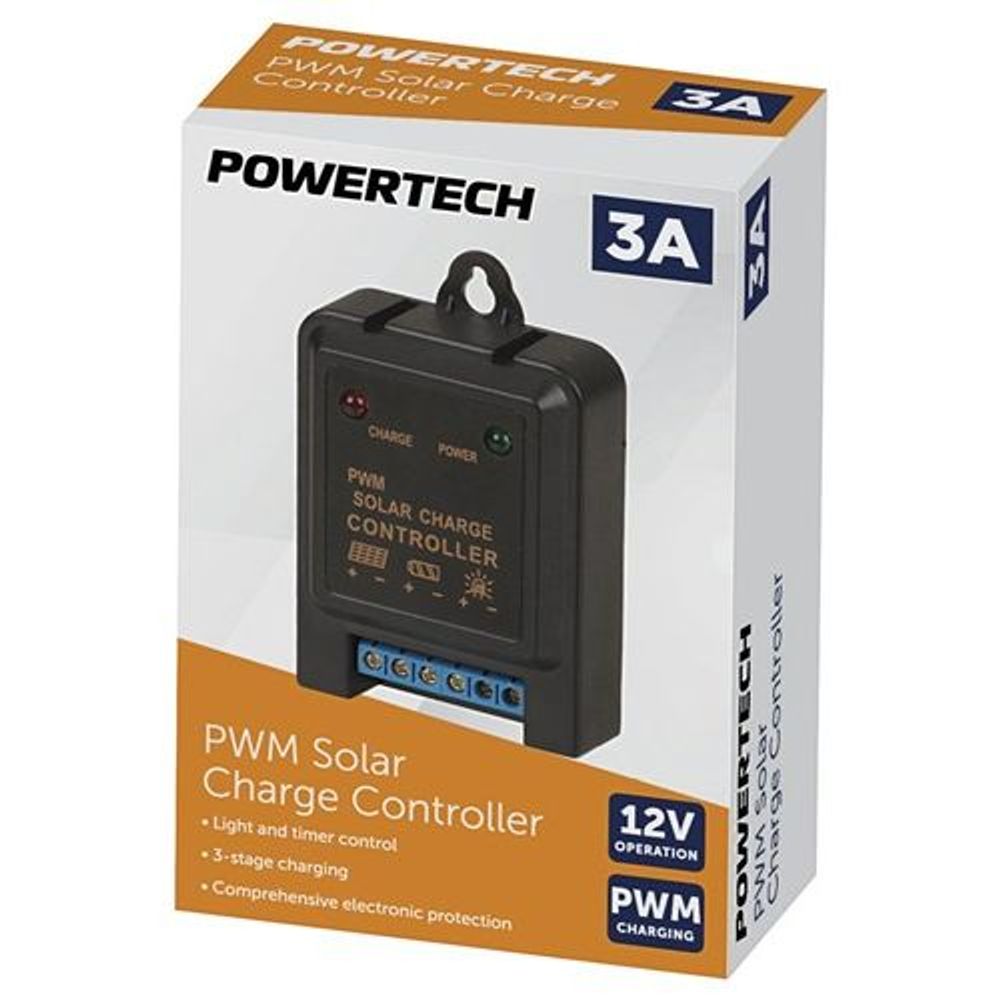

MP3762 - 3A PWM Solar Charge Controller 12V

PowertechSKU: MP3762

Sale price$35.90 NZD

Tax included

In stock

Expected Delivery Times

North Island - 2-6 Working Days

South Island - 3-10 Working Days




MP3762 1 Year Warranty This compact solar controller uses Pulse Width Modulation (PWM) to manage battery charging from a connected solar panel. It features light and timer control, similar to street lights, and three charging states (bulk, equalise, and float charging). It provides all the important safety features such as overcharge, over-discharge, over-current, short-circuit, and reverse-polarity protection.Features:- Red charge LED indicator- Green power LED indicator- Hang hook- Battery voltage automatic identification- PWM charging mode - Comprehensive electronic protectionSpecifications:Rated Voltage: 12VStrong Charging Pressure: 14.8VEquilibrium Charging: 14.5VFloat Charging Pressure: 13.7VUnder Voltage: 10.8VUnder Recover Voltage: 13VNon–Load Current: ?6mACharging Circuit Voltage drop: ?0.2VDischarge Circuit Voltage drop: ?0.1V







Packaged Volume : 0.15l
Packaged Weight : 0.05kg
Packaged Length : 8.5cm
Packaged Width : 6cm
Packaged Height : 3cm
Width : 52mm
Height : 22mm
Depth : 80mm
Weight : 33g
Dust/Particle Ingress Protection : 2 - Objects > 12.5mm, Fingers or small objects
Liquid/Moisture Ingress Protection : 2 - Dripping water when tilted to 15deg
IP Rating : 22
DC Voltage : 12V
Max Charging Current : 3A
Max Load Current : 3A
Charge Controller Technology : Pulse Width Modulated (PWM)
Availability : Stocked item
