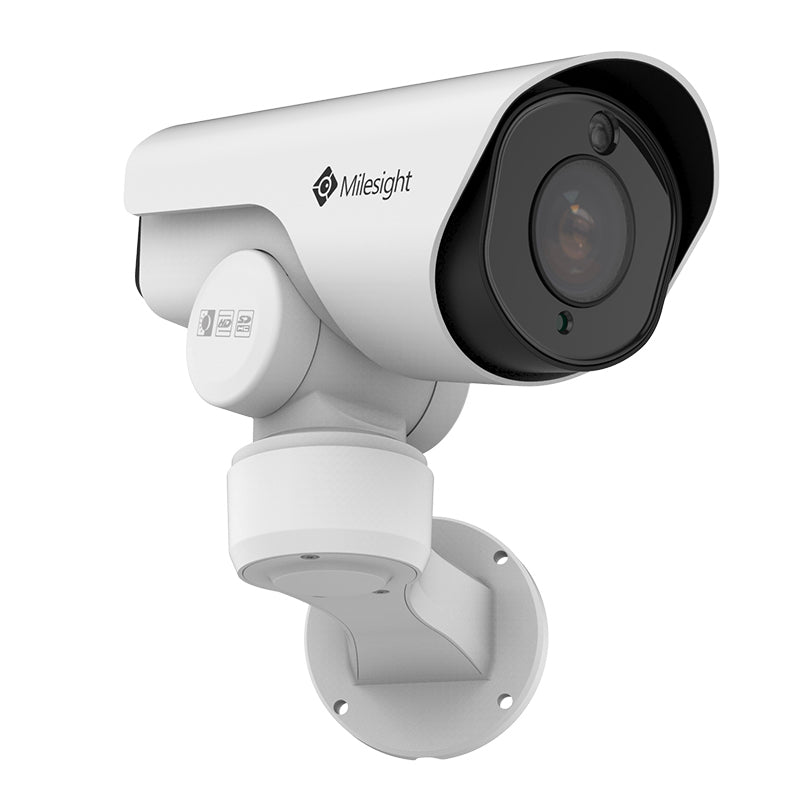

Name: Milesight 4K NDAA AI 20X PTZ Bullet Plus Network Camera - Multi Cable Out
Brand: Milesight
SKU: MS-C8267-X20PE
Price: 2789.90 NZD
Availability: InStock

Milesight 4K NDAA AI 20X PTZ Bullet Plus Network Camera - Multi Cable Out

MS-C8267-X20PE

$2,789.90

Tax included.

2 items available

Select quantity

Description

Milesight 4K NDAA AI 20X PTZ Bullet Plus Network Camera

Milesight 4K NDAA AI 20X PTZ Bullet Plus Network Camera - Multi Cable Out. Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.

Face Detection function detects human faces in the monitoring scene and captures the snapshots, which greatly enhances the monitoring efficiency and benefits the large population related industries such as public security, access control and business management.

The 4X/12X Optical Zoom can zoom in to distant objects while still maintaining the clarity, delivering high quality video over the entire image. Sharply contrasting to the mini size, the AI 4X/12X Pro Bullet Plus Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance. In the base, there are power interface, PoE port and other interfaces. Thanks to integrated cable management, it takes no effort in installation.

Milesight AI 4X/12X Pro Bullet Plus Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones

Features

ONVIF Profile G & Q & S & T, API Compatible
8MP
supports 802.3at PoE
20X Optical Zoom
supports H.265+/H.265/H.264+/H.264
AI
120dB Super WDR
0.001Lux Ultra Low-light
Heat Map
IP67
180m IR Distance
PTZ Auto Tracking
support microSD/SDHC/SDXC Card Local Storage, up to 256G

Details
Product Code	MS-C8267-X20PE
Product Name	4K AI 20X PTZ Bullet Plus Network Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.6, B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	6.4?128mm, 20X Optical Zoom
Field of View	H60°?H3°/D67°?D4°/V37°?V1°
Shutter Time	1/100000s?1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 180m
S/N	>55dB
Pan Range/Pan Speed	360° endless/ Pan Manual Speed: 0.1°?60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed	-45°?30°/ Tilt Manual Speed: 0.1°?30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Power Off Memory	support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Max. Image Resolution	3840x2160
Frame Rate	60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps?16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 24 areas
Region Of Interest	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Web Access	support IE/Firefox/Chrome/Safari Browser
Interfaces	1*RJ45 10M/100M Ethernet Port
Network Storage	NAS(support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Storagesupport	microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP	supported - Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & Q & S & T, API
Working Condition	Temperature: -40??60? / Humidity: 0?90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	14W MAX, 24W MAX(With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Housing	Vandal-proof IK10-rated metal housing
Dimensions/Weight	110mmx337mmx220mm/ 3kg

Details
Contents	Warranty card, QSG, Wall mount, mounting screws and tightening tool included
Power Supply	Not included

Warranty

2 Years

Brand

Milesight

Restock ETA (if applicable)

Product Details

Specifications

Milesight
HeadingMilesight 4K NDAA AI 20X PTZ Bullet Plus Network Camera - Multi Cable Out

Description

Milesight 4K NDAA AI 20X PTZ Bullet Plus Network Camera

Features

ONVIF Profile G & Q & S & T, API Compatible
8MP
supports 802.3at PoE
20X Optical Zoom
supports H.265+/H.265/H.264+/H.264
AI
120dB Super WDR
0.001Lux Ultra Low-light
Heat Map
IP67
180m IR Distance
PTZ Auto Tracking
support microSD/SDHC/SDXC Card Local Storage, up to 256G

Details
Product Code	MS-C8267-X20PE
Product Name	4K AI 20X PTZ Bullet Plus Network Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.6, B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	6.4?128mm, 20X Optical Zoom
Field of View	H60°?H3°/D67°?D4°/V37°?V1°
Shutter Time	1/100000s?1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 180m
S/N	>55dB
Pan Range/Pan Speed	360° endless/ Pan Manual Speed: 0.1°?60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed	-45°?30°/ Tilt Manual Speed: 0.1°?30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom	support
Preset Quantity	300
Patrol	8 Patrols, up to 48 presets each patrol
Pattern	4 Patterns
Power Off Memory	support
Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Max. Image Resolution	3840x2160
Frame Rate	60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps?16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 24 areas
Region Of Interest	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Web Access	support IE/Firefox/Chrome/Safari Browser
Interfaces	1*RJ45 10M/100M Ethernet Port
Network Storage	NAS(support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Storagesupport	microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP	supported - Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & Q & S & T, API
Working Condition	Temperature: -40??60? / Humidity: 0?90%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V/3A±10%
Power Consumption	14W MAX, 24W MAX(With IR on)
Weather Proof	Up to IP66-rated for Weather-resistant Performance
Housing	Vandal-proof IK10-rated metal housing
Dimensions/Weight	110mmx337mmx220mm/ 3kg
