LT3166 - Slimline Indoor/Outdoor UHF/VHF Antenna

DigitechSKU: LT3166

Price:
Sale price$77.90 NZD

Tax included

Stock:
In stock

Description

LT3166

1 Year Warranty

This slim indoor/outdoor antenna is very easy to install and is supplied with mounting hardware for wall, mast or rail mount. An in-built amplifier with 4G/LTE filter provides optimal UHF and VHF signal reception for DVB-T, DVB-T2 and DAB radio. The antenna is weatherproof IPX4 and can be mounted horizontally or vertically for best positioning. Reception distance of up to 25km from the TV tower when mounted indoor and up 50km away when mounted outdoor.

Features:
- 11/19dB Gain
- 4G/LTE Filter
- In-Built Amplifier
- Weatherproof
- Mast/Rail & Wall Mount
- Up to 25km Indoor Range (up to 50km Outdoor)

Included:

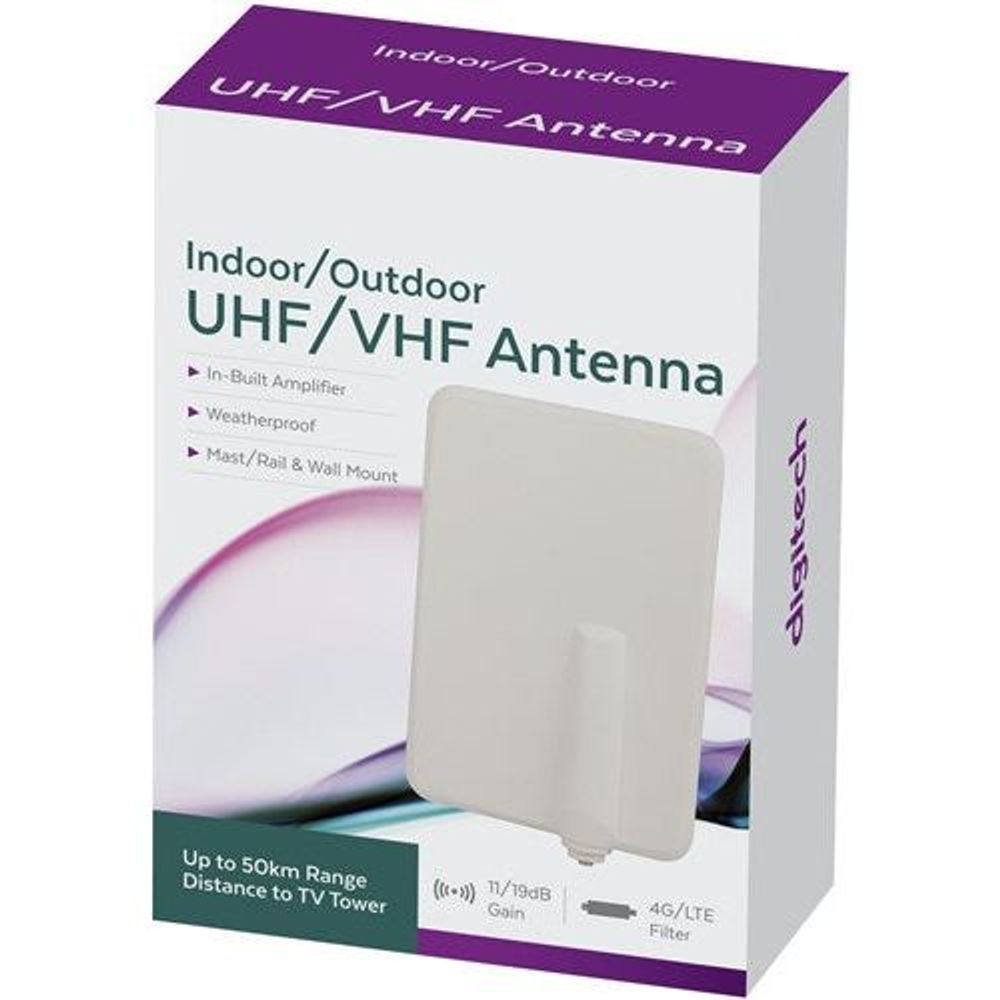

1 x Indoor /Outdoor UHF/VHF Antenna
1 x 4m F to F Antenna Cable
1 x 4m F to PAL Antenna Cable
1 x Flat Window Antenna Cable

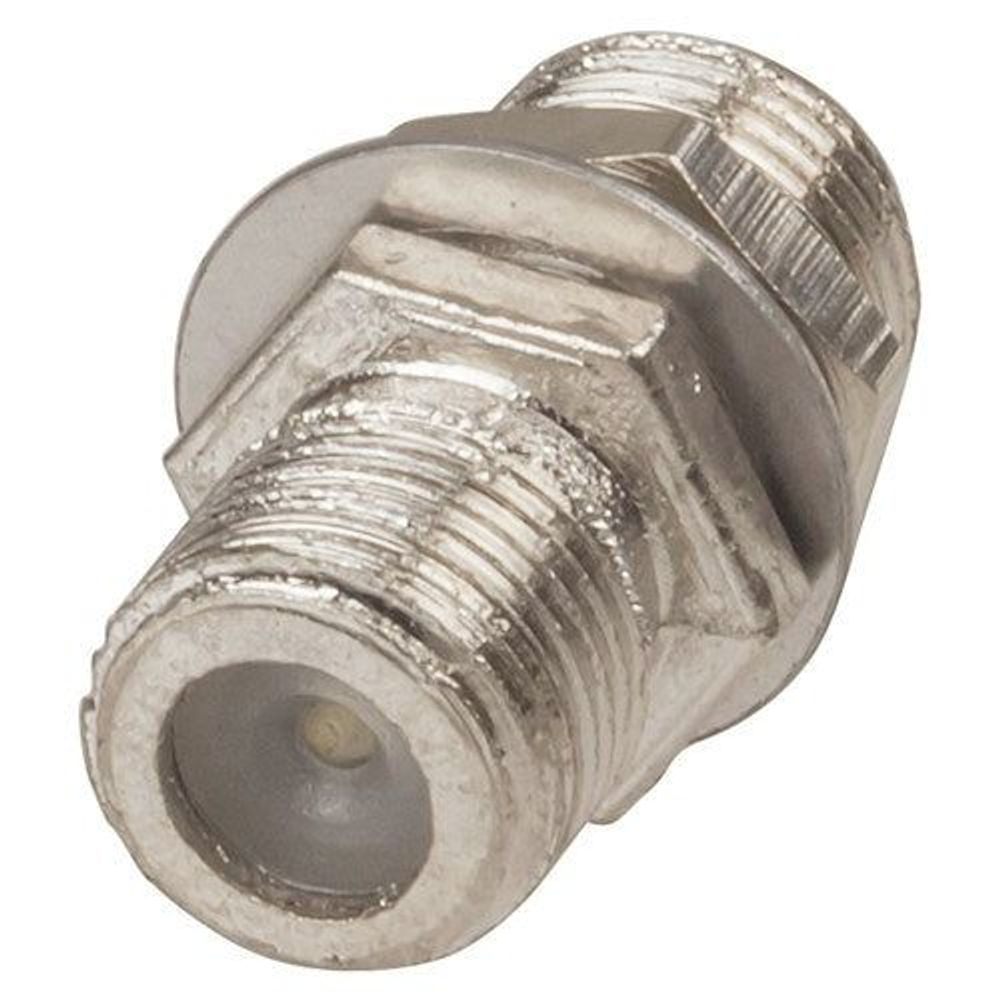

1 x F to F Adaptor
1 x Power Injector
1 x Mains Power Adaptor
1 x Mast/Rail Clamp
1 x Mast/Rail & Wall Mounting Hardware

Note: Reception distance from the TV tower varies upon your exact location and obstacles in-between the tower and receiver such as buildings or walls. To check the coverage of your area, click here.





Specifications





Specifications

Line of Sight Range : 25km, 50km
DC current rating : 550mA
DC Voltage : 5V
IP Rating : IPX4
Dust/Particle Ingress Protection : IPX - Not rated
Liquid/Moisture Ingress Protection : 4 - Splashing water
Width : 165mm
Height : 230mm
Depth : 5mm
DC Current Draw : 400mA, 400mA
Suitable PSU Included : true
Mounting Method : In WallPole Mount
Packaged Volume : 6.54l
Packaged Weight : 1.03kg
Packaged Length : 28.5cm
Packaged Width : 20.3cm
Packaged Height : 11.3cm
RF type : PAL/Belling-Lee
RF impedance : 75?
Antenna Type : Flat Panel
Usage Location : IndoorOutdoor
Reception Bands : TV Band 3: 174-230MHzTV Band 4: 526-582MHzTV Band 5: 582-694MHz
UHF Frequency Range : 470MHz, 694MHz
UHF Channel Range : 69ch, 69ch
UHF Gain : 19dB
VHF Frequency Range : 170MHz, 230MHz
VHF Channels Covered : 12ch, 12ch
VHF Gain : 11dB
Availability : Stocked item

Expected Delivery Times

North Island - 2-6 Working Days

South Island - 3-10 Working Days
