LA5072

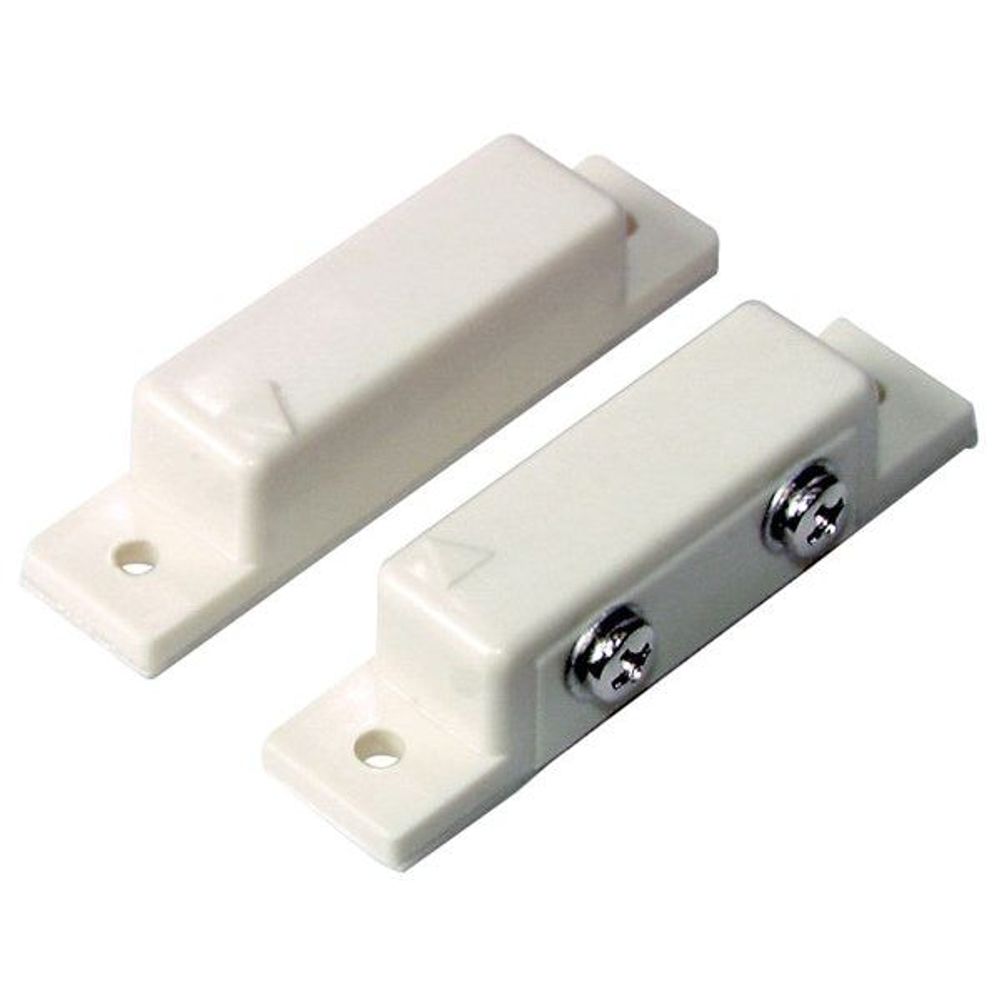

These are used to secure an alarm circuit on a door or window. Sold as a pair, one has a magnet inside, the other a reed switch. They have powerful magnets, with self adhesive or screw mount, and screw terminal connections.Reed Switch contacts: closed when both units are together (ie current flows), and open when apart.Normally CLOSED (NC) per pair.Contact operation: Contacts are closed cicuit when the magnet is alongside the switch. For alarm installation this is denoted as the "normal" state as the door/window is secure and the alarm is armed.
Specifications
Specifications
| Packaged Volume : 0.15l |
| Packaged Weight : 0.02kg |
| Packaged Length : 8.4cm |
| Packaged Width : 1.5cm |
| Packaged Height : 12cm |
| Width : 55mm |
| Height : 12.5mm |
| Depth : 13mm |
| Dimension details : Dimensions identical on switch and magnet |
| Mounting Method : Surface |
| Overall Screw Spacing (H) : 44.5mm |
| Attachment / Securing Method : Screw DownSelf Adhesive Tape/Pad |
| Availability : Stocked item |
