Description
Features

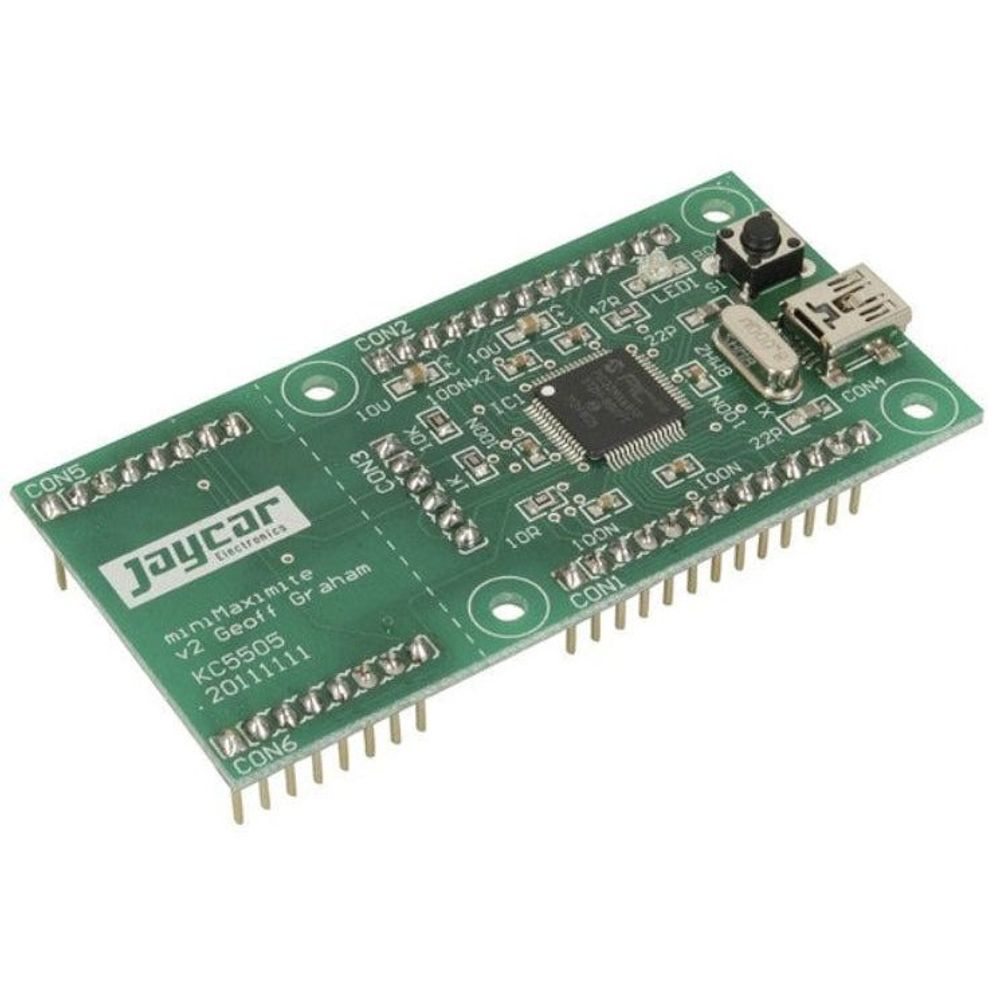

KC5505 Refer: Silicon Chip Magazine November 2011 Note: We supply all of the surface mounted components already pre-soldered to save you time and frustration. A versatile and intelligent controller to interface with your creations, such as home automation. Features 20 configurable digital/analog inputs or output ports, 128K RAM and 256KB flash memory to hold your program and data. Design and test in MMBasic over a USB link from your PC, then disconnect the PC and the programs continue to operate. Alternatively, hard wire a PC monitor, keyboard, SD card reader and amplified speaker to work independent of a PC. Requires 2.3 - 3.6V DC (2 x AA or use plugpack MP-3310). Kit supplied with PCB, pre-programmed and pre-soldered micro, and electronic components. * PCB: 78 x 38mm
Specifications
| Packaged Volume |
0.6l |
| Packaged Weight |
0.07kg |
| Packaged Length |
20cm |
| Packaged Width |
10cm |
| Packaged Height |
3cm |
