Description
Going Gigabit and PoE+ Just Got More Cost-Effective!
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business's needs, whether in the hospitality, catering, education or retail domains.

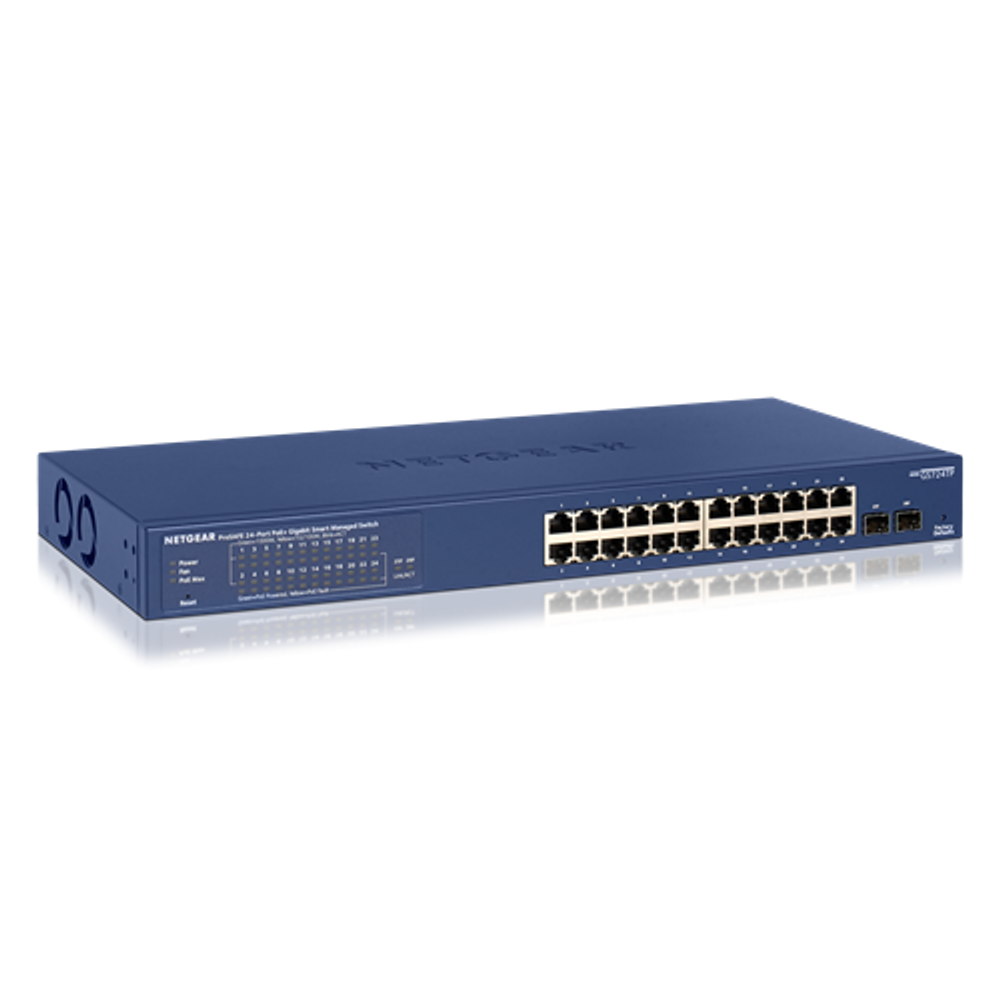

The GS724TPv2 and GS724TPP 24-Port Gigabit Switch with PoE+ and 2 SFP Ports join the NETGEAR Standalone Smart Switches family, adding full 24 port PoE+ support for deployment of modern highpower PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a costeffective switch, with a reasonable PoE power budget of 190W (GS724TPv2) or 380W (GS724TPP).
NETGEAR Smart Switches offer powerful Layer 2 features, great PoE functionality, and enhanced performance and usability. These switches are the ideal solution even for the most advanced small and medium organizations looking for the best combination of features, performance, and value: they are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS724TPv2 and GS724TPP support quiet rack mounting operation with a maximum of 32.4 dBA (GS724TPv2) and 35.0 dBA (GS724TPP) even at full power and 25°C (77°F) ambient.
To empower the PoE applications, NETGEAR Insight Remote/Cloud Management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.
Highlights | More Powerful Switch for High Power Devices
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business's needs, whether in the hospitality, catering, education or retail domains.
The GS724TPv2 and GS724TPP 24-Port Gigabit Switch with PoE+ and 2 SFP Ports join the NETGEAR Standalone Smart Switches family, adding full 24 port PoE+ support for deployment of modern highpower PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a costeffective switch, with a reasonable PoE power budget of 190W (GS724TPv2) or 380W (GS724TPP).
NETGEAR Smart Switches offer powerful Layer 2 features, great PoE functionality, and enhanced performance and usability. These switches are the ideal solution even for the most advanced small and medium organizations looking for the best combination of features, performance, and value: they are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS724TPv2 and GS724TPP support quiet rack mounting operation with a maximum of 32.4 dBA (GS724TPv2) and 35.0 dBA (GS724TPP) even at full power and 25°C (77°F) ambient.
To empower the PoE applications, NETGEAR Insight Remote/Cloud Management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.
Highlights | More Powerful Switch for High Power Devices
- 24 x PoE+ Gigabit ports with 190W PoE budget (GS724TPv2) or 380W PoE budget (GS724TPP)
- 2 dedicated Gigabit SFP fiber uplink ports
- Non-blocking switching with 52Gbps
- Flexible rack-mounting option
- Advanced VLAN support for better network segmentation
- L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
- Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling
- Advanced QoS (Quality of Service) for traffic prioritization including portbased, 802.1p and L2/L3/L4 DSCPbased
- Auto "denial-of-service" (DoS) prevention
- IGMP Snooping and Querier for multicast optimization
- Egress Rate limiting and priority queuing for better bandwidth allocation
Specifications
Management & Protocols
| Manageable | Yes |
Miscellaneous
| Environmentally Friendly | Yes |
I/O Expansions
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of Total Expansion Slots | 2 |
| Number of SFP Slots | 2 |
| Shared SFP Slot | No |
Media & Performance
| Network Technology | 1000Base-T |
| 1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
Power Description
| Power Source | Power Supply |
| Power Consumption | 23.35 W |
| Number of Power Supplies Installed | 1 |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 190 W |
Network & Communication
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1p |
| IEEE 802.1x | |
| IEEE 802.3ad | |
| IEEE 802.1w | |
| IEEE 802.1s | |
| IEEE 802.3at | |
| IEEE 802.1ab | |
| IEEE 802.1Q | |
| IEEE 802.1D | |
| IEEE 802.3af | |
| IEEE 802.3x | |
| IEEE 802.3az |
Interfaces/Ports
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| 24 x Gigabit Ethernet PoE+ |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | GS724TP-200AJS |
| Manufacturer Website Address | http://www.netgear.com/ |
| Manufacturer | Netgear, Inc |
| Product Model | GS724TPv2 |
| Product Name | 24-Port Gigabit PoE+ Smart Switch with 2 SFP Ports and Cloud Management |
| Brand Name | Netgear |
Physical Characteristics
| Weight (Approximate) | 3.15 kg |
| Form Factor | Table Top |
| Desktop | |
| Rack-mountable | |
| Height | 43 mm |
| Width | 440 mm |
| Depth | 204 mm |
