Features

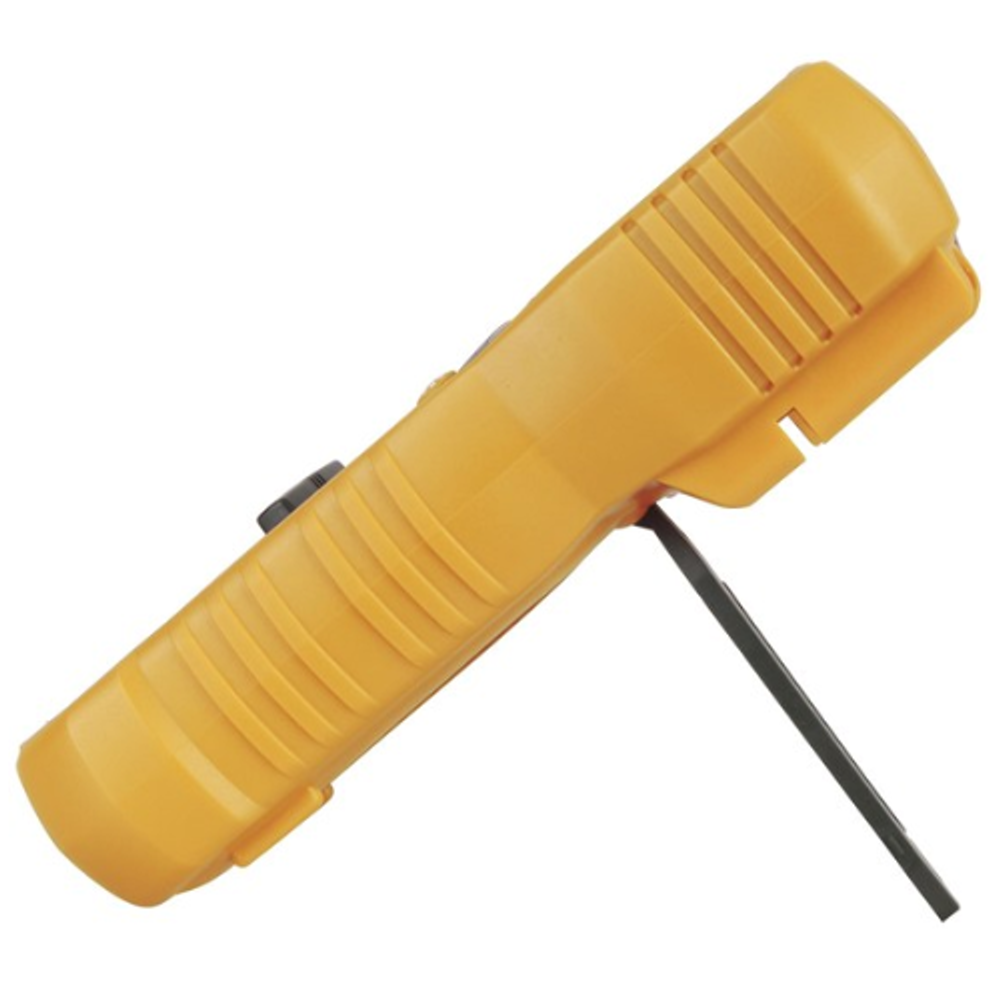

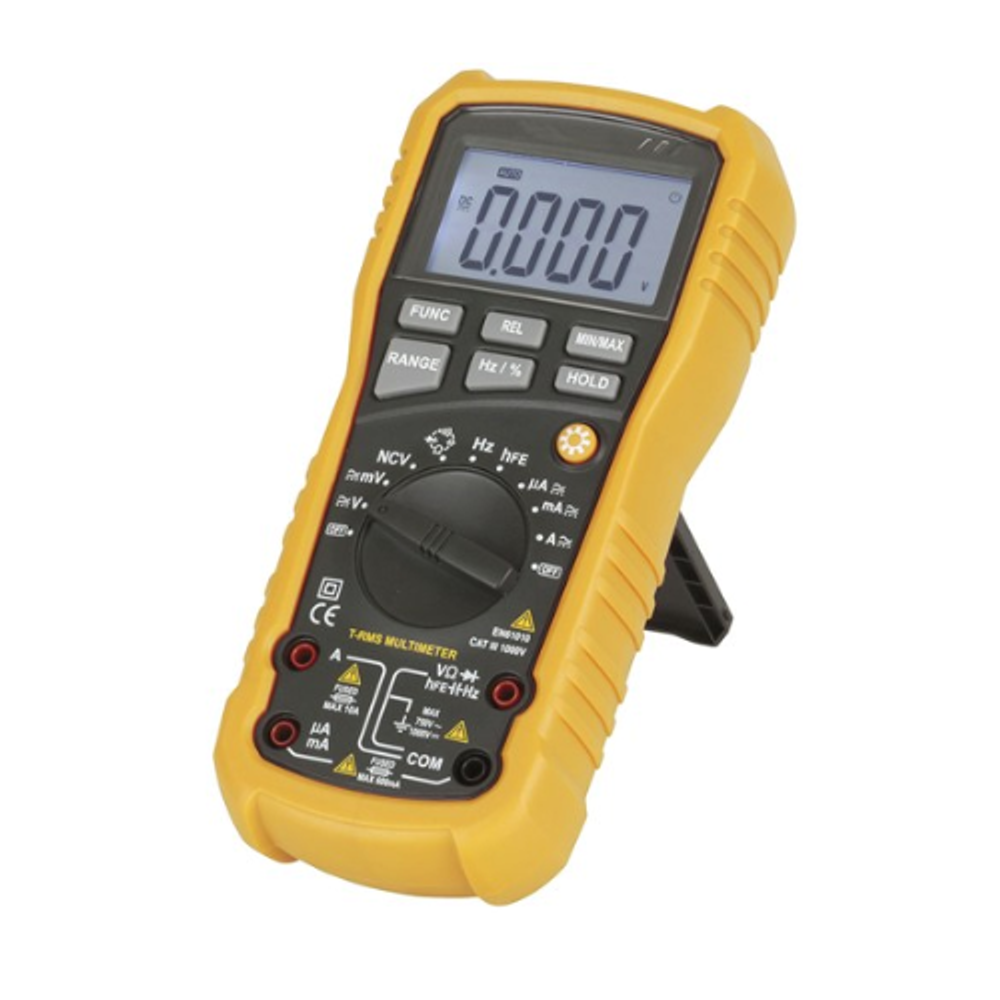

QM1321
Our Technician range of multimeters are suitable for a host of applications. They’re accurate, and have a huge range of features to suit various applications. Every multimeter in this range carries a Lifetime Warranty for peace of mind.
This is a great multimeter, with the accuracy of true RMS measurement. Ruggedly designed for heavy-duty use, this multimeter features data hold to assist with onsite analysis and four input jacks (three positive and one negative) for conducting tests in conjunction with the rotary dial. The built-in alarm and LED indicator clearly alert the user to issues, faults and test results. The 10 second screen backlight makes this multimeter ideal for use in low light conditions. Included user manual provides test instructions and technical specifications.
Specifications
| Capacitance Ranges : 10nF, 100nF, 100µF, 10µF, 10µF, 1mF, 100µF |
| Continuity indicator : On Panel |
| Continuity buzzer : true |
| AC Current Ranges : 400µA, 40A, 400A, 4A, 10A |
| AC Current Accuracy : ±(1.5%+5)% |
| DC Current Ranges : 400µA, 4mA, 40mA, 400mA, 4A, 10A |
| DC Current Accuracy : -1.5%, 1.5% |
| Resistance Ranges : 400Ω, 4kΩ, 40kΩ, 4Ω, 40Ω |
| AC Voltage Ranges : 40mV, 400mV, 4V, 40V, 400V, 750V |
| AC Voltage Accuracy : ±(0.8%+5)% |
| DC Voltage Ranges : 40mV, 400mV, 4V, 1000V, 400V |
| DC Voltage Accuracy : -0.5%, 0.5% |
| Records Minimum : true |
| Records Maximum : true |
| Data Hold : true |
| Relative Measure : false |
| Display Type : LCD |
| Display Backlight : White LED Backlit |
| Safety Rating Cat : Cat III |
| Safety Rating Max Volt : 1000V |
| Count Maximum Reading : 4000 count |
| True RMS : true |
| Autorange : true |
| Battery used for : Main Product |
| Size / Shape : 9V |
| Battery quantity : 1pc |
| Batteries included : true |
| Batteries can be replaced by user : true |
| Packaged Volume : 2.62l |
| Packaged Weight : 0.54kg |
| Packaged Length : 25.5cm |
| Packaged Width : 16.3cm |
| Packaged Height : 6.3cm |
| Meter Input Impedence : 10MΩ |
| Non-contact Voltage Indicator : true |
| Measures diode : true |
| Measures transistor : true |
| Foldout Stand : true |
| Casing : Rubber |
| Carry Case Included : false |
| Availability : Stocked item |
