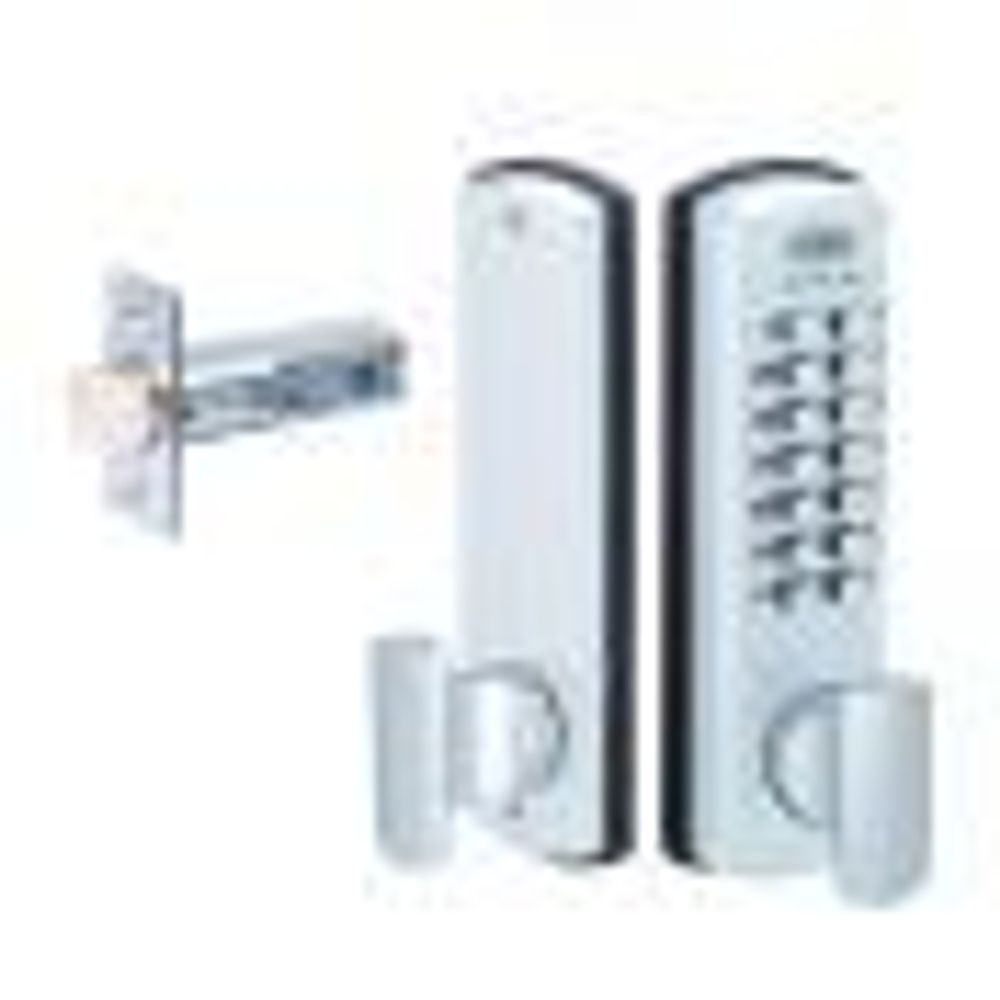

Lockwood 530DX Mechanical Digital Tubular Latch Lock

The Lockwood Digital DX Locksets provide a mechanical method of keyless entry.

For extra security when under forced attack, the inbuilt clutching mechanism allows the outside knob to rotate without operating or damaging the lock. The factory set 5 digit code is easily changed to any 4, 5 or 6 digit code using the code changing kit provided with each lock. Lockwood Digital DX Locksets are designed to control access into commercial areas, especially when frequent combination changes are needed to maintain security.

As the digital lockset utilizes mechanical operation, electrical wiring is not required. Selected locksets combined with digital access pads provide keyless entry.

Features

• Suits door thickness of 35 to 45mm
• 60mm standard backset tubular latch
• 70 and 127mm latches available separately on application
• Operated by keypad outside
• Operated by knob inside
• Non-handed

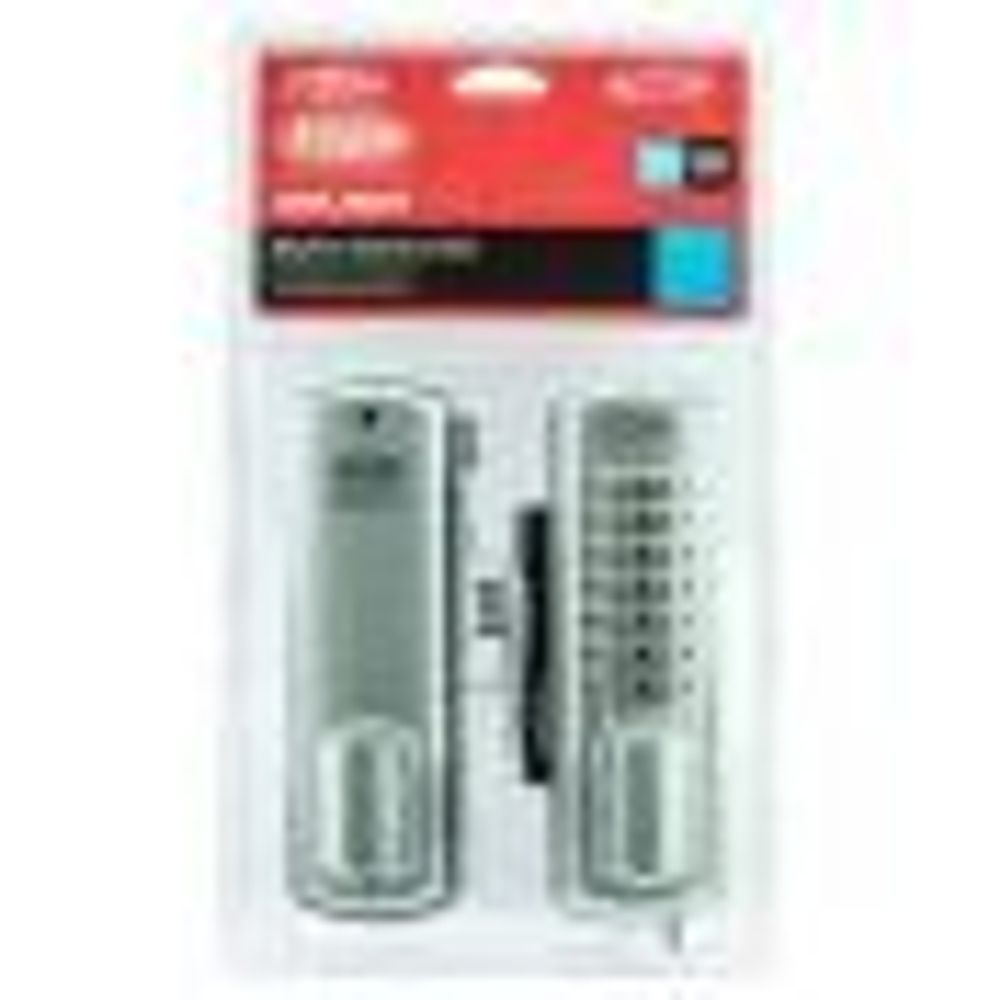

• Supplied in display pack

Operation
Outside
Press the C button, enter the correct code, then turn the knob to unlock the door. Upon releasing the turn knob the code is automatically cancelled.

Inside
Opened by knob at all times.

Fire Rating
Lockwood 530 Digital DX Entrance Set (excluding rubber gasket) has been successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS 1905.1: 1997, Fire Resistant Door sets.

Finish
Satin Chrome Pearl SP
