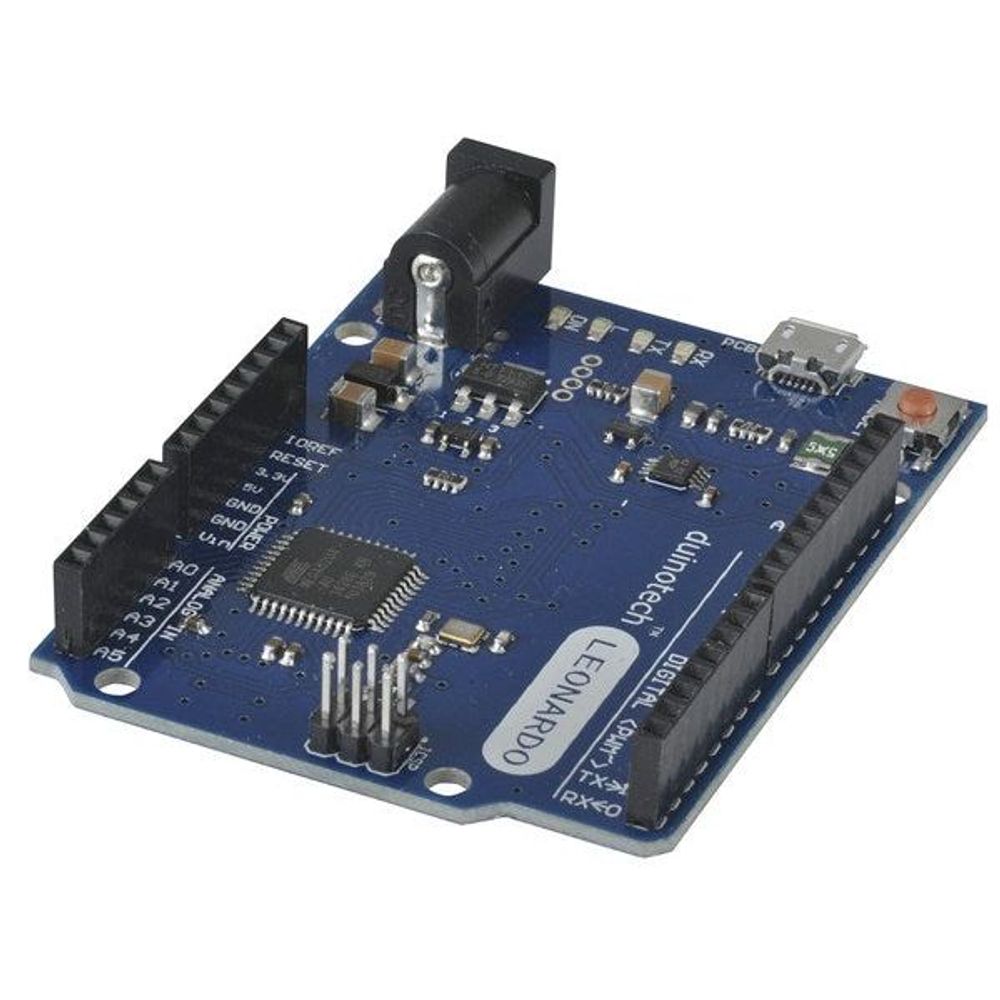

XC4430
Arduino? Compatible
Most of the Duinotech models use two chipsets, one for the main controller, one for USB communication. The Duinotech Leonardo combines both these functions into a single IC, which opens to door for more advanced USB functions. The development board also boasts more analogue inputs (12), and an extra PWM channel.
Features:
- Fully Arduino™ compatible
- ATMega32u4 microcontroller
- EEPROM: 1KB
- Speed: 16MHz
- Built in USB-Serial
- IO:
Digital IO: 20 pins (7 are configurable as digital or PWM)
PWM Capable: 7 pins
Analogue Inputs: 12 pins (6 are shared with digital pins)
Serial Ports: 2 (One USB, one UART, more supported via SoftwareSerial library)
Input voltage:
- 5VDC Regulated via USB port or 5V pin
- 7-12VDC via vin pin
- On-board regulator supplies 5V when unit is powered via vin pin
