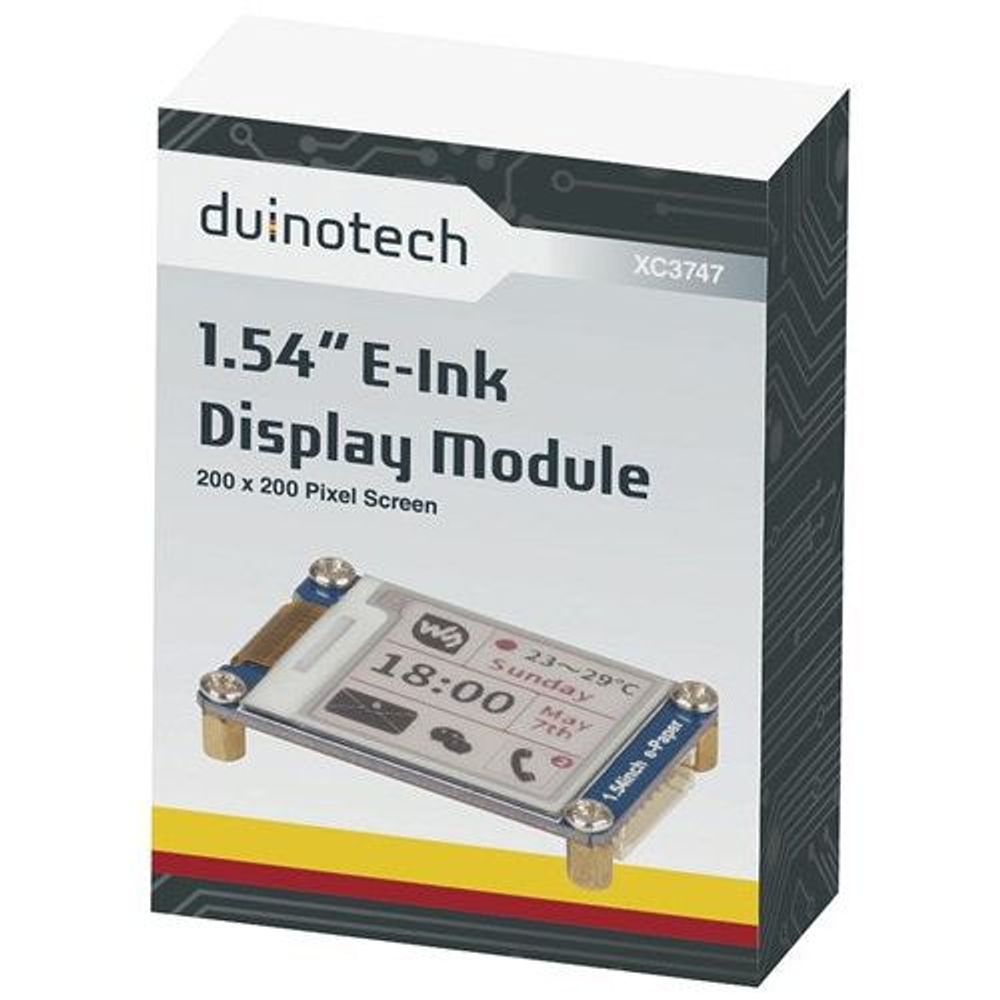

Name: XC3747 - Duinotech Arduino Compatible 1.54 Inch Monochrome E-Ink Display
Brand: Arduino
SKU: XC3747
Price: 59.90 NZD
Availability: InStock

XC3747 - Duinotech Arduino Compatible 1.54 Inch Monochrome E-Ink Display

XC3747 - Duinotech Arduino Compatible 1.54 Inch Monochrome E-Ink Display

XC3747

$59.90

Tax included.

Select quantity

Description

XC3747

Arduino^® Compatible

This screen uses very little power to refresh, and retains the last displayed content for a very long time when power is removed. The screen also reflects ambient light, which avoids the need for a backlight, and makes it easy to read under bright sunlight. It has a wide viewing angle over 170°.

Features:

Black, white and red display
2 shades of grey
SPI interface
0.3 second partial refresh time
2 second full refresh time
Low refresh power (26.4mW)
Extra low standby power (<0.017mW)

Specifications

Screen Backlit : Not Backlit

Horizontal Screen Resolution : 200Pixel

Vertical Screen Resolution : 200Pixel

Aspect Ratio : 1:1

Vertical Screen Viewing Angle : 170°, 170°

Horizontal Screen Viewing Angle : 170°, 170°

Dimension details : Overall Dimensions

Length : 48mm

Width : 33mm

Height : 9mm

Weight : 14g

Packaged Volume : 0.1l

Packaged Weight : 0.03kg

Packaged Length : 7cm

Packaged Width : 5.5cm

Packaged Height : 2.5cm

Required Supply Voltage : 3.3V, 3.3V

Dimensions details : Dot Pitch

Width : 0.14mm

Height : 0.14mm

Dimension details : Display Size

Length : 27.6mm

Width : 27.6mm

Availability : Stocked item
