XC9048

$34.90

Tax included.

Select quantity
Description

XC9048

Raspberry Pi Compatible

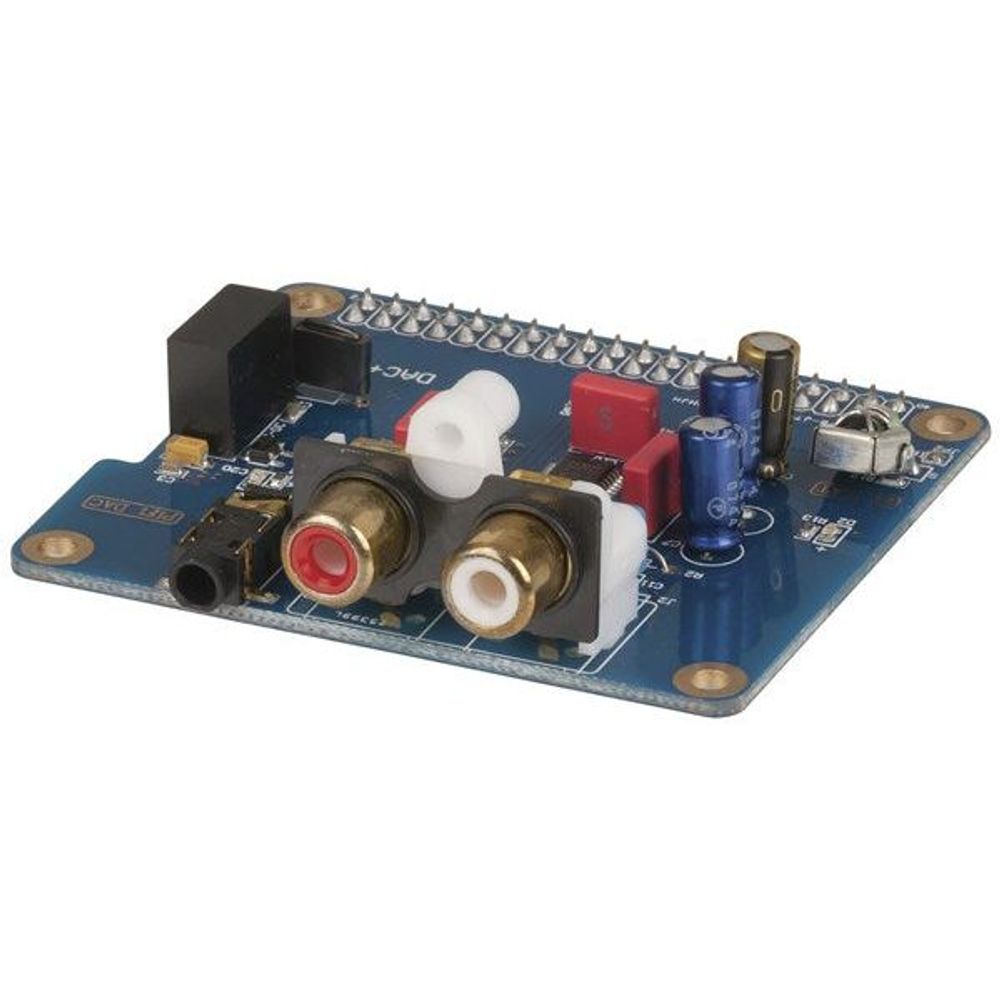

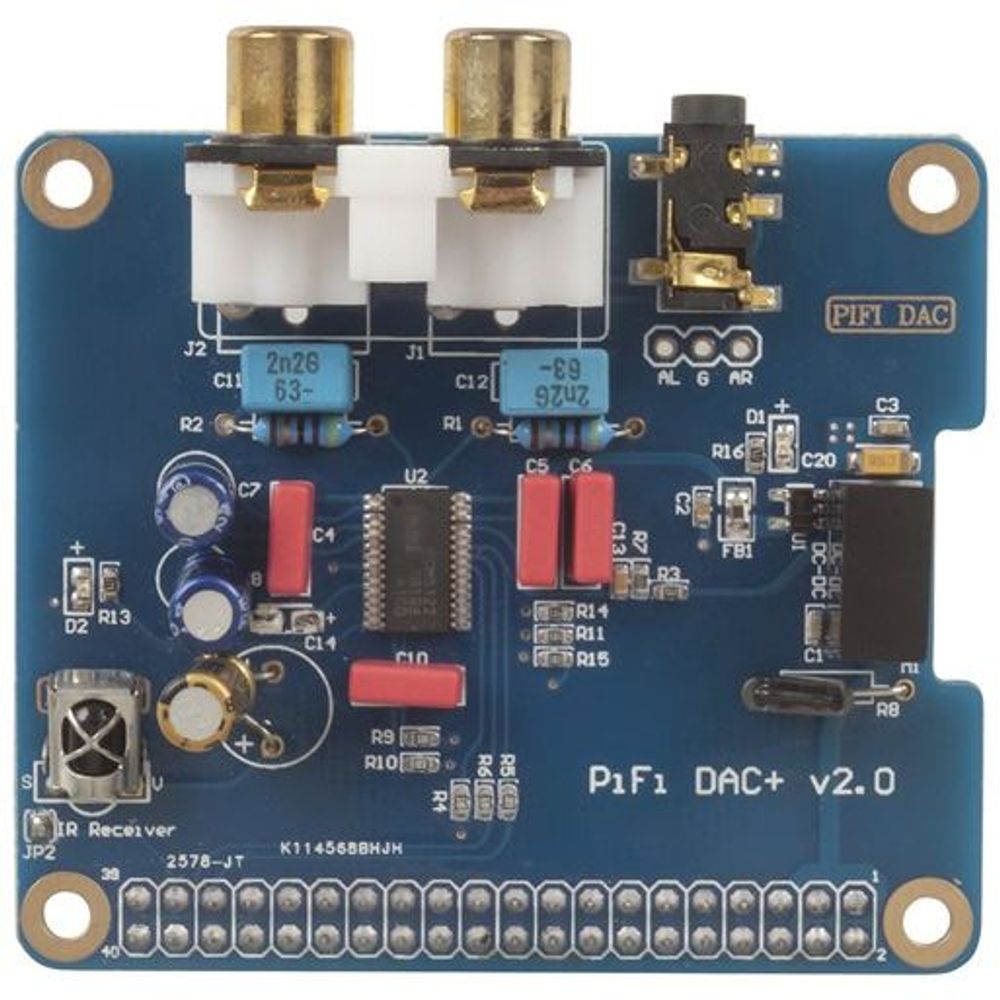

This simple DAC can be used to create your own Raspberry Pi based music player or just improve the sound quality from your Raspberry Pi. Plugs directly onto your Pi & requires minimal setup using Volumio & RuneAudio. Compatible with any 38KHz IR remote control. Directly powered from the Raspberry Pi—no additional power supply.


Features:
• Ultra-low-noise design for optimal audio performance
• Available with different output connectors: RCA or 3.5mm phone jack

Specifications:
• Sampling Frequency 384KHz
• Resolution (Bits) 16-32
• Digital Audio Interface I2S
• SNR 120dB
• THD -93dB
• Dynamic Range 112dB
• IR Receiver 38Khz

What’s Included:
• 1 x Raspberry Pi Compatible Digital Audio Converter

What’s Required:
• XC9001 – Raspberry Pi 3B+

Optional Accessories:
• XC3718 – IR Remote Control for Arduino





Specifications





Specifications

Length : 60mm
Width : 60mm
Height : 35mm
Weight : 30g
Packaged Volume : 0.15l
Packaged Weight : 0.03kg
Packaged Length : 11cm
Packaged Width : 7cm
Packaged Height : 2cm
