Description

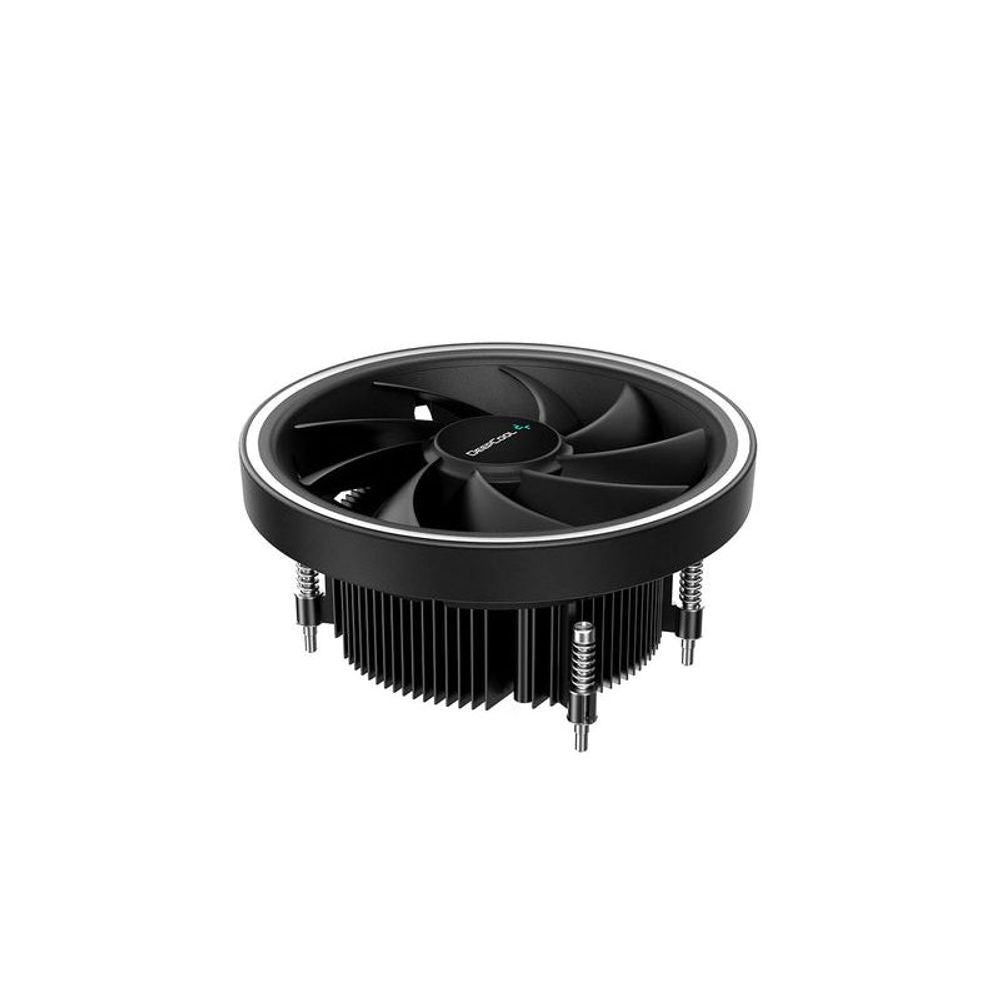

TOP FLOW DESIGN
Cooling with a fan mounted top-down quickly dissipates heat directly over the heat sink covering the CPU which also introduces additional airflow over motherboard components surrounding the socket such as the VRM and RAM
BEST MATCHING FAN
Optimal in performance and noise, the 136mm PWM cooling fan balances the best of both worlds to ensure your system is at its best.
(fan specs)
500-1800 RPM
44.31 CFM
≤26.8 dB(A)

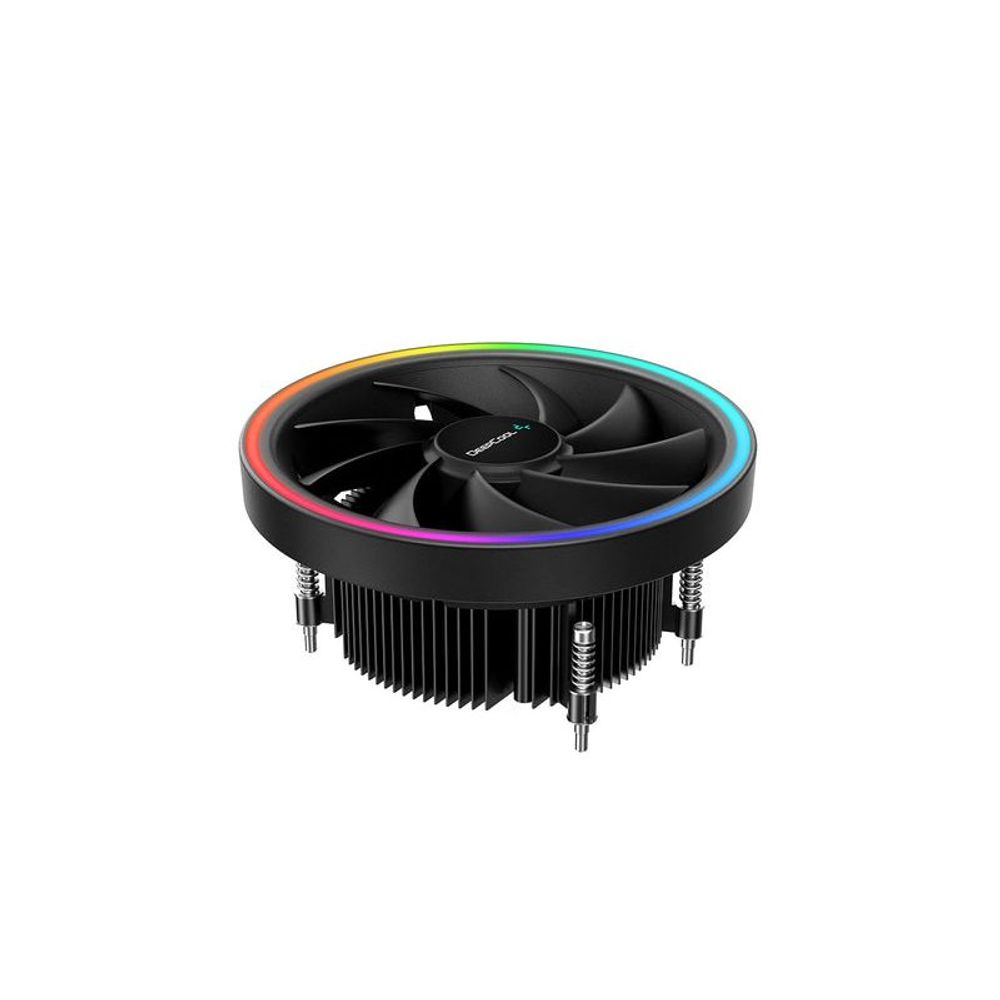

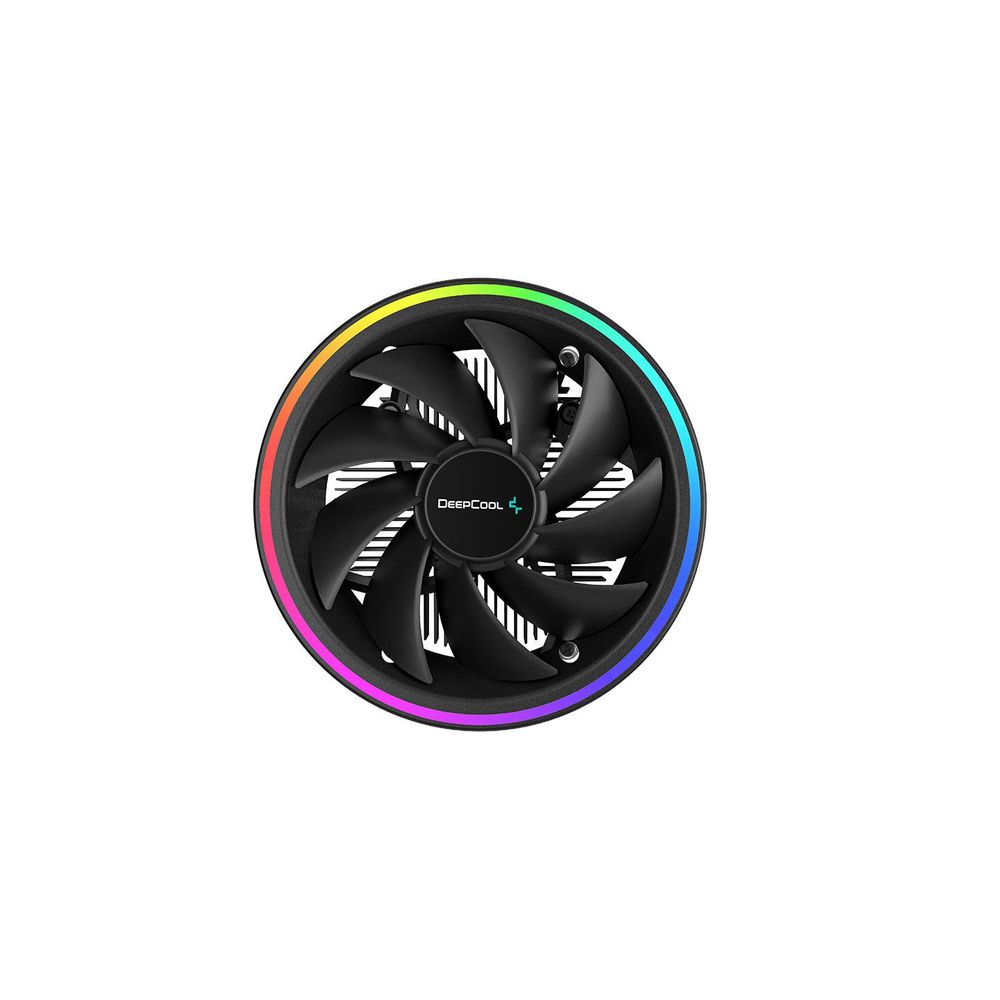

GLAMOUROUS RING LIGHT
Customize and control the addressable RGB LEDs with 16.8 million color options that best fit your style and setup. Fine tune your settings and synchronize with supported motherboard software through the 3-pin 5V ARGB connector. Enjoy a colorful cooling combination in this classic form factor.
QUICK INSTALL
An easy-to-use mounting process makes setup and installation quick and hassle-free.
*The UD551 is designed for AMD sockets only. For Intel socket mount, a corresponding UL551 model is available.
Application For
AMD
AMD AM4
Technical Spec
| Product Dimensions | 136×136×69 mm |

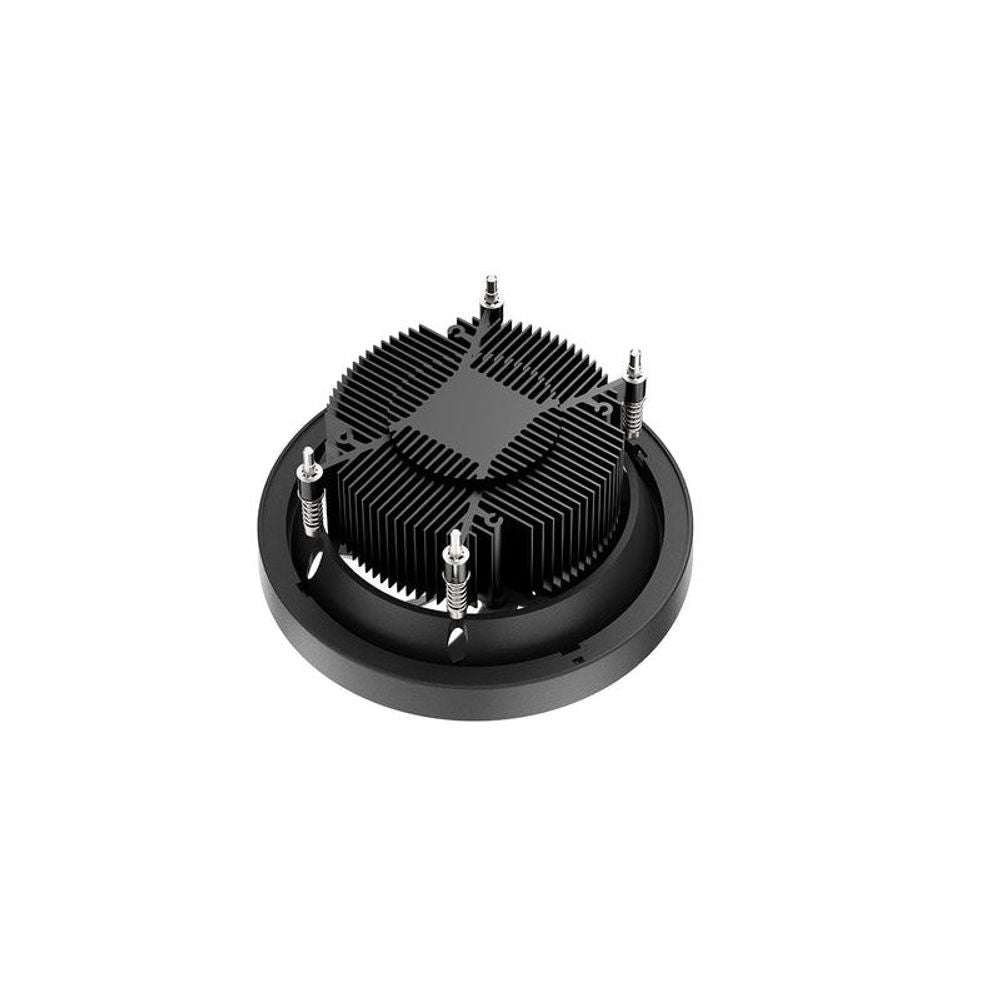

| Heatsink Dimensions | 97×90×36 mm |
| Net Weight | 378 g |
| Fan Dimensions | Φ 136×27mm |
| Fan Speed | 500~1800 RPM±10% |
| Fan Airflow | 44.31 CFM |
| Fan Air Pressure | 1.65 mmAq |
| Fan Noise | ≤26.8 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.1 A |
| Fan Power Consumption | 1.2 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.2 W |
| EAN | 6933412727361 |
| P/N | R-UD551-BKAMAB-G-1 |
