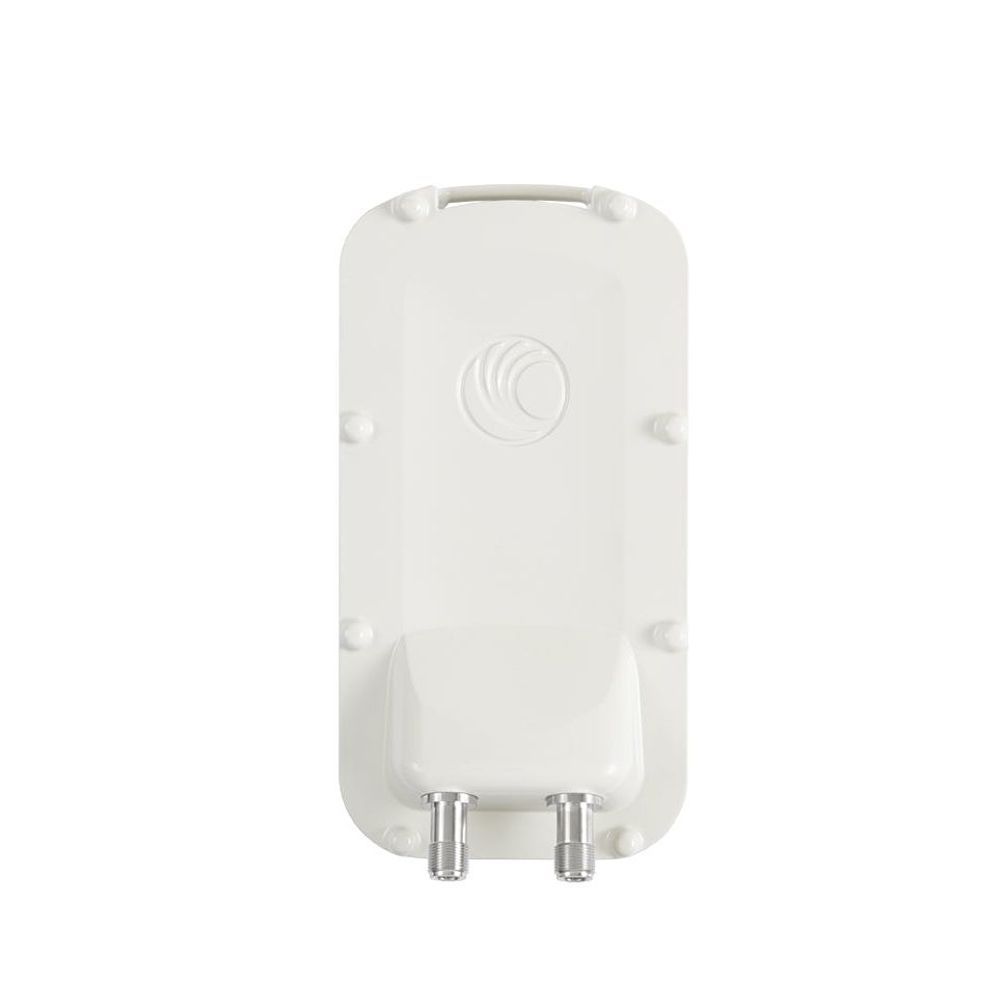

Name: C050045A001A - Cambium 5 GHz PMP 450i Connectorized Access Point (ROW)
Brand: Cambium Networks
SKU: C050045A001A
Price: 3441.95 NZD
Availability: InStock

C050045A001A - Cambium 5 GHz PMP 450i Connectorized Access Point (ROW)

C050045A001A

$3,441.95

Tax included.

1 items available

Select quantity

Description

Cambium 5 GHz PMP 450i Connectorized Access Point (ROW).

Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.

Now capable of up to 300 Mbps per sector in a 40 MHz channel!

Features

Ultra-wide band 5 GHz Radio
Rugged metal enclosure designed to meet IP-66 and IP-67 standards
2x2 OFDM MIMO radio capable of up to 300 Mbps per sector
Dynamic Interference Filtering
Multi function AUX port with PoE-Out

Details
Product Code	C050045A001A
Frequency Range	5 GHz : 4900 - 5925 MH
Channel Width	5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz
MAC (Media Access Control) Layer	Cambium Networks proprietary
Physical Layer	2x2 MIMO OFDM
Ethernet Interface	100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
Protocols Used	IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
Network Management	IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM
MTU	1700 bytes
VLAN	802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Subscriber Per Sector	Up to 238
ARQ	Yes
Modulation Levels (Adaptive)	2X QPSK, 4X 16QAM, 6X 64QAM, 8X 256QAM
Maximum Deployment Range	Up to 40 miles (64 km)
Latency	3 - 5 ms, typical
GPS Synchroization	Yes, via Autosync (CMM5 or UGPS)
Quality of Service	Diffserve QoS
Antenna Connection	50 ohm, N-Type (Connectorized version only)
Max Transmit Power	+28 dBm (MIMO, Combined H+V) (+25 dBm for 3 GHz) (may be limited by regulations)
Surge Suppression (LPU fitted)	EN61000-4-5: 1.2us/50us, 500 V voltage waveform, Recommended external surge suppressor: Cambium Networks Model # C000000L033A
Mean Time Between Failure	> 40 Years
Environmental	IP67, IP66
Temperature / Humidity	-40°C to +60°C (-40°F to +140°F), 0-100% condensing
Power Consumption	15 W typical, 18 W max, 45 W max with Aux port PoE out enabled
Input Voltage	48-59 V DC, 802.3at compatible

Details
Power Supply	Sold Separately (N000000L034)
Mounting Hardware	Sold Separately (N000065L031)

Specifications

Details
Product Code	C050045A001A
Frequency Range	5 GHz : 4900 - 5925 MH
Channel Width	5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz
MAC (Media Access Control) Layer	Cambium Networks proprietary
Physical Layer	2x2 MIMO OFDM
Ethernet Interface	100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
Protocols Used	IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
Network Management	IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM
MTU	1700 bytes
VLAN	802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Subscriber Per Sector	Up to 238
ARQ	Yes
Modulation Levels (Adaptive)	2X QPSK, 4X 16QAM, 6X 64QAM, 8X 256QAM
Maximum Deployment Range	Up to 40 miles (64 km)
Latency	3 - 5 ms, typical
GPS Synchroization	Yes, via Autosync (CMM5 or UGPS)
Quality of Service	Diffserve QoS
Antenna Connection	50 ohm, N-Type (Connectorized version only)
Max Transmit Power	+28 dBm (MIMO, Combined H+V) (+25 dBm for 3 GHz) (may be limited by regulations)
Surge Suppression (LPU fitted)	EN61000-4-5: 1.2us/50us, 500 V voltage waveform, Recommended external surge suppressor: Cambium Networks Model # C000000L033A
Mean Time Between Failure	> 40 Years
Environmental	IP67, IP66
Temperature / Humidity	-40°C to +60°C (-40°F to +140°F), 0-100% condensing
Power Consumption	15 W typical, 18 W max, 45 W max with Aux port PoE out enabled
Input Voltage	48-59 V DC, 802.3at compatible
