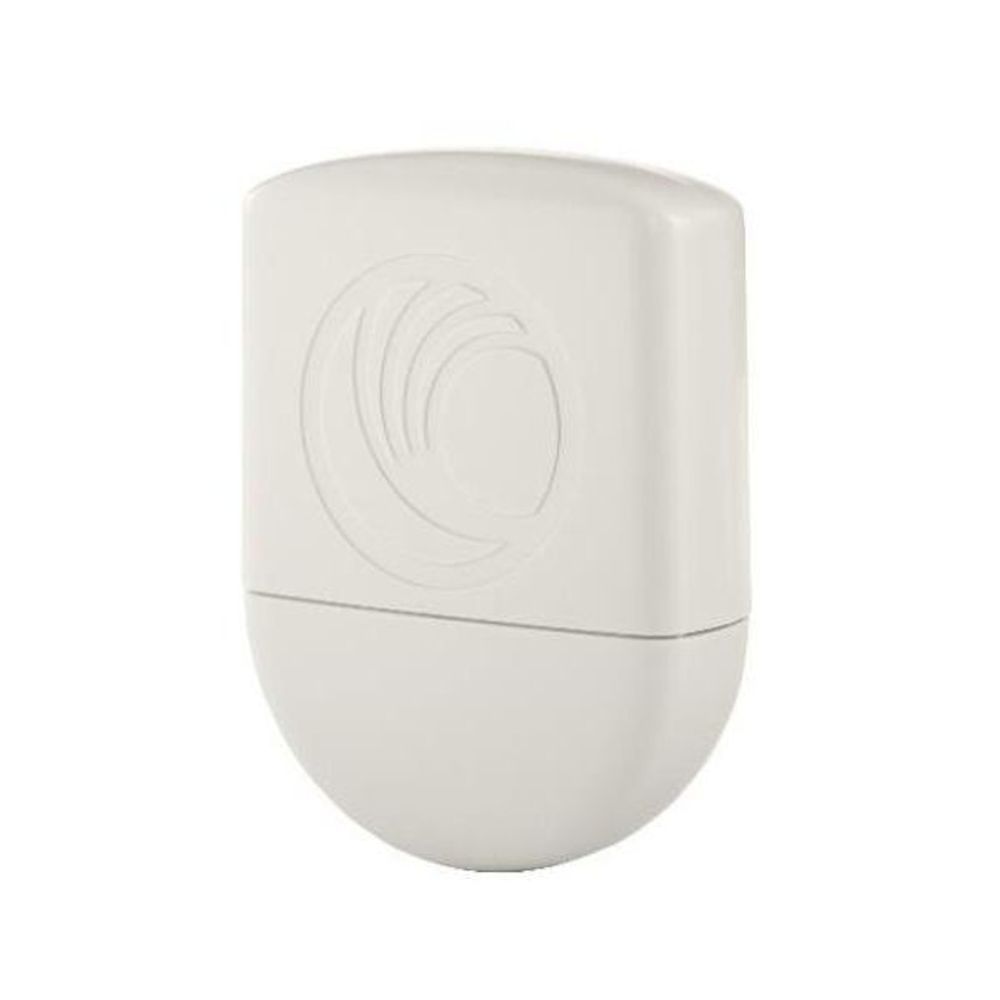

C000000L033A - Cambium Gigabit Surge Supressor (56V)

C000000L033A - Cambium Gigabit Surge Supressor (56V)

C000000L033A

7% OFF
$116.15 $126.00

Tax included.

In stock, ready to be shipped
Select quantity
Description
Cambium Networks designs outdoor wireless broadband solutions to operate in the toughest of environments. Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment especially when mounted as high as 300m. The Gigabit Ethernet Surge Suppressor is critical for lightning protection to minimize the potential for damage.

Network operators should always follow best-practices for grounding and lightning protection. Doing so will minimize network outages and reduce the associated costs of tower climbs and equipment repair/replacement.

The Gigabit Ethernet Surge Suppressor is compatible with the ePMP 3000, PMP 450i (Access Point and Subscriber Module), PTP 550, PTP 450i and PTP 820S. The unit ships suitable for mounting to a wall or pole.
Details
Manufacturer's Product Code C000000L033A
Transfer Rate 1000 Base T
Connectors Two x RJ-45
Nominal Volage 56V
Protection Mode Line-to-line and line-to-ground
Surge Arrestor TVS Diodes (Transient Voltage Suppression for longer operational life)
Surge Current Rating, L-G, total 172A, 10/1000us
Response Time 5 nanoseconds typical
Mounting Pole mount or wall mountable
Dimensions 118mm x 87.5mm x 46.5mm
Weight 156 gm
Wind Survival 321 km/hour
Operating Temperature -40° C to +60° C
Humidity 100% condensing
Environmental Protection IP54 (Dust and Water Intrusion Protection)
Details
Mounting Hardware Included





Specifications





Details
Manufacturer's Product Code C000000L033A
Transfer Rate 1000 Base T
Connectors Two x RJ-45
Nominal Volage 56V
Protection Mode Line-to-line and line-to-ground
Surge Arrestor TVS Diodes (Transient Voltage Suppression for longer operational life)
Surge Current Rating, L-G, total 172A, 10/1000us
Response Time 5 nanoseconds typical
Mounting Pole mount or wall mountable
Dimensions 118mm x 87.5mm x 46.5mm
Weight 156 gm
Wind Survival 321 km/hour
Operating Temperature -40° C to +60° C
Humidity 100% condensing
Environmental Protection IP54 (Dust and Water Intrusion Protection)
Warranty
Brand

Cambium Networks

Restock ETA (if applicable)

Product Details

Specifications

  • Cambium Networks

  • HeadingC000000L033A - Cambium Gigabit Surge Supressor (56V)

Description
Cambium Networks designs outdoor wireless broadband solutions to operate in the toughest of environments. Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment especially when mounted as high as 300m. The Gigabit Ethernet Surge Suppressor is critical for lightning protection to minimize the potential for damage.

Network operators should always follow best-practices for grounding and lightning protection. Doing so will minimize network outages and reduce the associated costs of tower climbs and equipment repair/replacement.

The Gigabit Ethernet Surge Suppressor is compatible with the ePMP 3000, PMP 450i (Access Point and Subscriber Module), PTP 550, PTP 450i and PTP 820S. The unit ships suitable for mounting to a wall or pole.
Details
Manufacturer's Product Code C000000L033A
Transfer Rate 1000 Base T
Connectors Two x RJ-45
Nominal Volage 56V
Protection Mode Line-to-line and line-to-ground
Surge Arrestor TVS Diodes (Transient Voltage Suppression for longer operational life)
Surge Current Rating, L-G, total 172A, 10/1000us
Response Time 5 nanoseconds typical
Mounting Pole mount or wall mountable
Dimensions 118mm x 87.5mm x 46.5mm
Weight 156 gm
Wind Survival 321 km/hour
Operating Temperature -40° C to +60° C
Humidity 100% condensing
Environmental Protection IP54 (Dust and Water Intrusion Protection)
Details
Mounting Hardware Included





Specifications





Details
Manufacturer's Product Code C000000L033A
Transfer Rate 1000 Base T
Connectors Two x RJ-45
Nominal Volage 56V
Protection Mode Line-to-line and line-to-ground
Surge Arrestor TVS Diodes (Transient Voltage Suppression for longer operational life)
Surge Current Rating, L-G, total 172A, 10/1000us
Response Time 5 nanoseconds typical
Mounting Pole mount or wall mountable
Dimensions 118mm x 87.5mm x 46.5mm
Weight 156 gm
Wind Survival 321 km/hour
Operating Temperature -40° C to +60° C
Humidity 100% condensing
Environmental Protection IP54 (Dust and Water Intrusion Protection)
Brand

Cambium Networks

Warranty
