XC3748
Arduino? Compatible

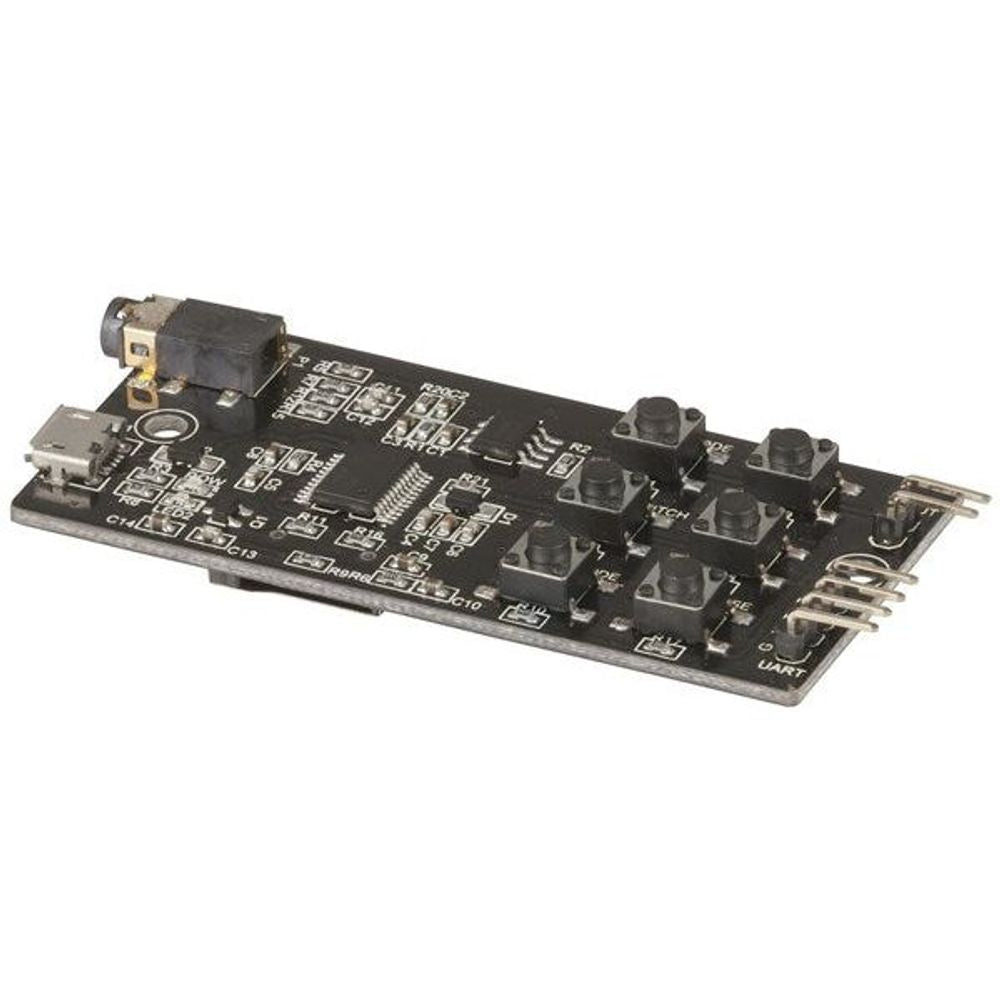

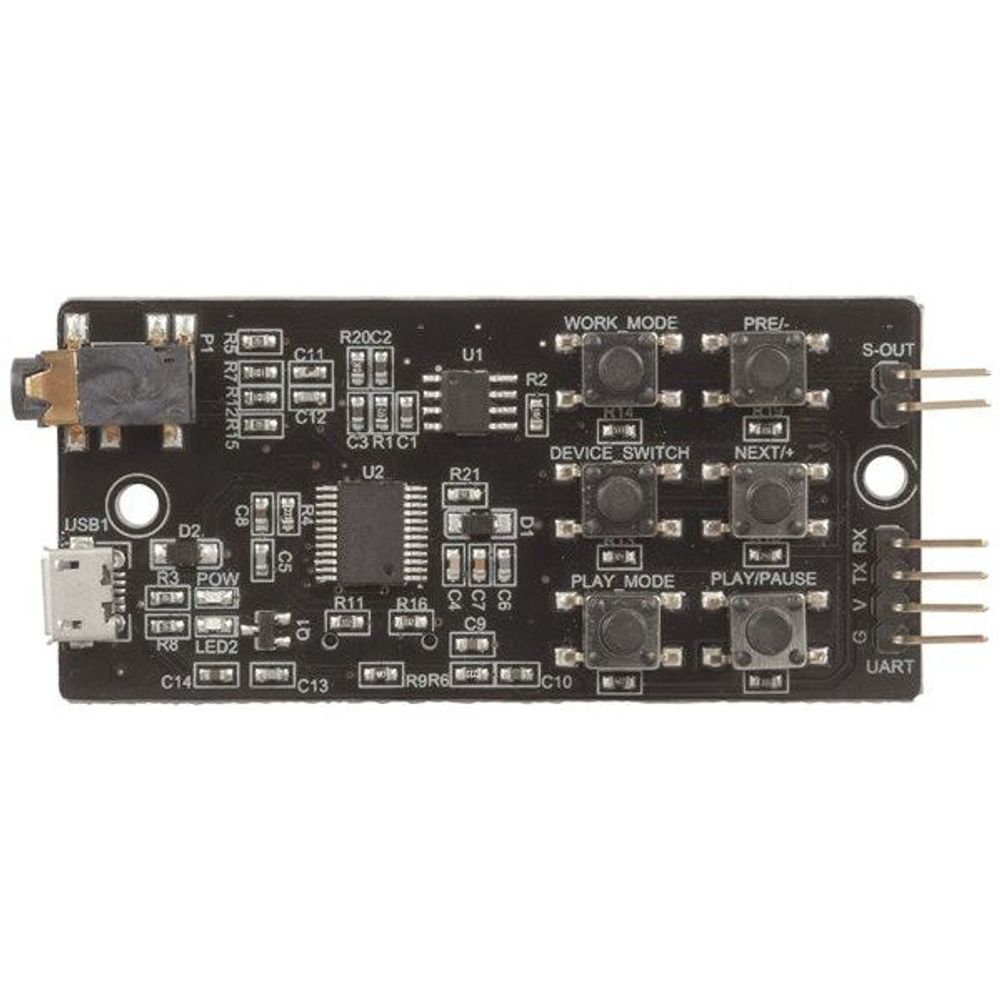

This audio module can play MP3 files from installed microSD (sold separately). A built-in amplifier can power an 8-ohm speaker, and a 3.5mm audio socket is also provided for private listening using your headphones or connection to an external amplifier. Control the audio using the six integrated tactile switches or via the UART serial communications interface. A micro USB interface enables you to access the microSD card and download the music.
Features:
- Fully self-contained unit
- 6 button function control
- Mode LED indicators
- Fat32 format
- Power Consumption: 5 watts maximum
- Ouptut Power: 1.2 watts maximum
Specifications
Specifications
| DC current rating : 1A |
| DC Voltage : 5V |
| Maximum Power : 5W |
| Type of Memory : Micro SD Card |
| Memory Capacity : 32GB |
| Width : 77mm |
| Height : 8mm |
| Depth : 33mm |
| Weight : 10.6g |
| Packaged Volume : 0.13l |
| Packaged Weight : 0.01kg |
| Packaged Length : 15.9cm |
| Packaged Width : 8cm |
| Packaged Height : 1cm |
| Size Adaptor(s) Included : SD |
| Availability : Stocked item |
