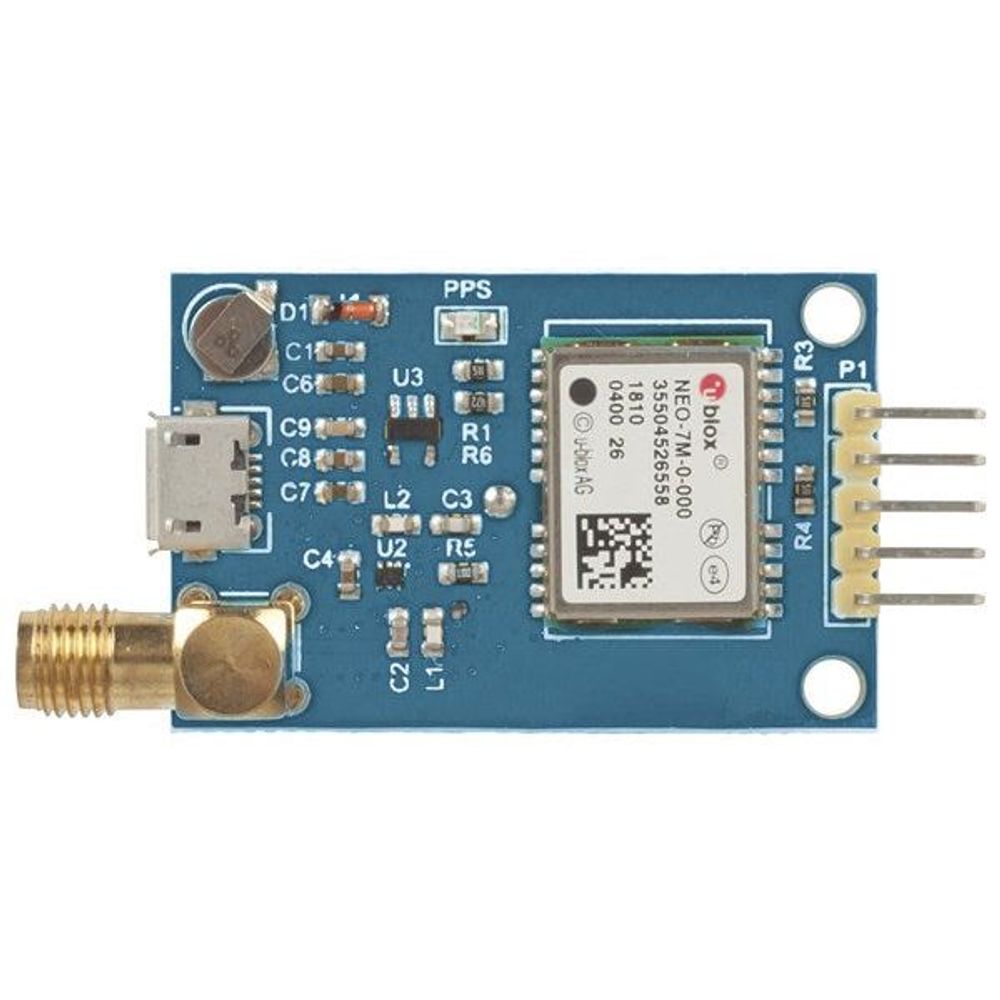

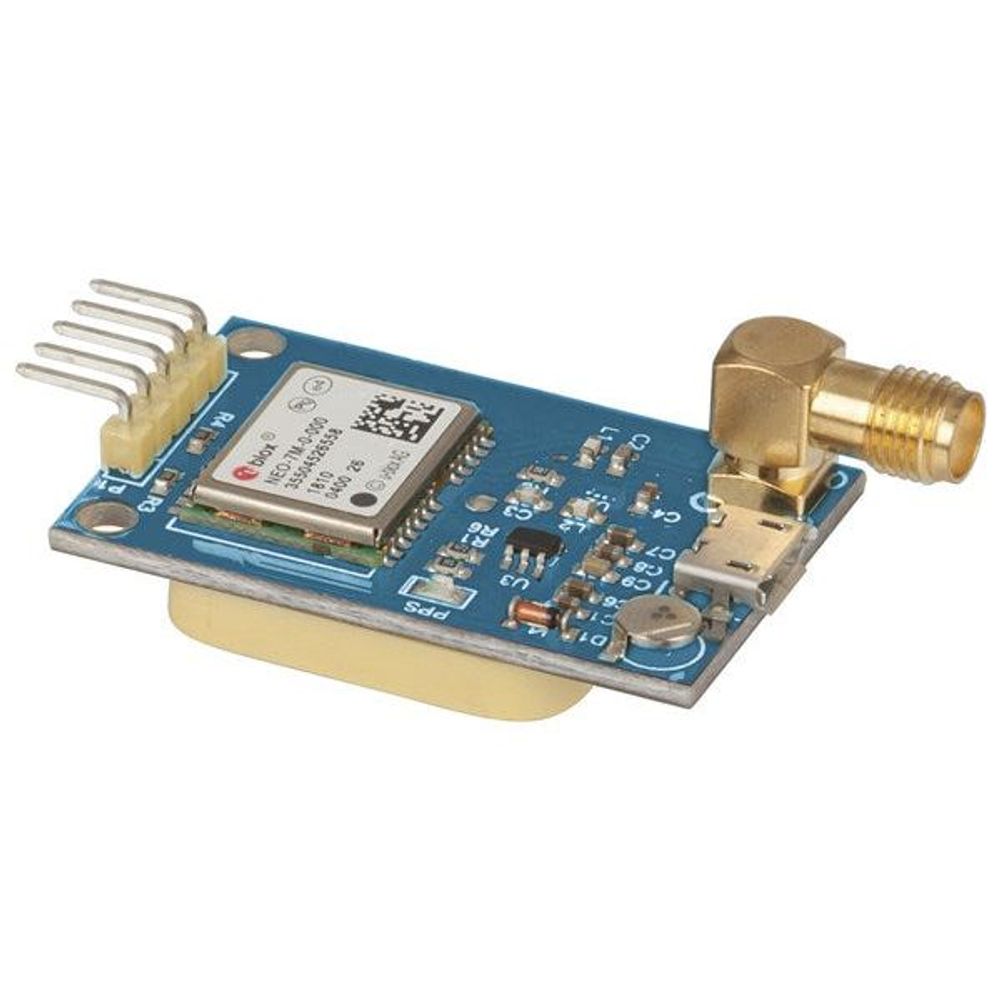

XC3710 - Arduino Compatible GPS Receiver Module

ArduinoSKU: XC3710

Price:
Sale price$41.90 NZD

Tax included

Stock:
Currently Sold Out

Description

XC3710

Arduino? Compatible


This module has an on-board ceramic antenna meaning you don’t need an external one, however, an SMA connector is also attached if you wish to attach your own antenna to improve reception. The micro USB interface enables you to debug the GPS module via a data cable, and a reserved serial port interface for USB-to-serial port modules or external MCU enables you to easily receive the GPS data.

Features:
  • On-board signal LED indicator
  • 3.3V or 5V operation
  • Onboard & external antenna options
  • 9600 Baud Rate
  • 1Hz Output Frequency
  • Uses TinyGPS++ Library

Note: When connecting an external antenna the C2 capacitor on the module needs to be removed. If the internal and external antennas are used together they will interfere with each other, affecting positioning.
The on-board battery needs to be charged for around about an hour before usage.







Specifications





Specifications

Dimension details : Including SMA Socket
Length : 53mm
Width : 26mm
Height : 15mm
Weight : 18g
Packaged Volume : 0.18l
Packaged Weight : 0.02kg
Packaged Length : 14.2cm
Packaged Width : 7.9cm
Packaged Height : 1.6cm
Required Supply Voltage : 3.3V, 5V
Availability : Stocked item
