Description

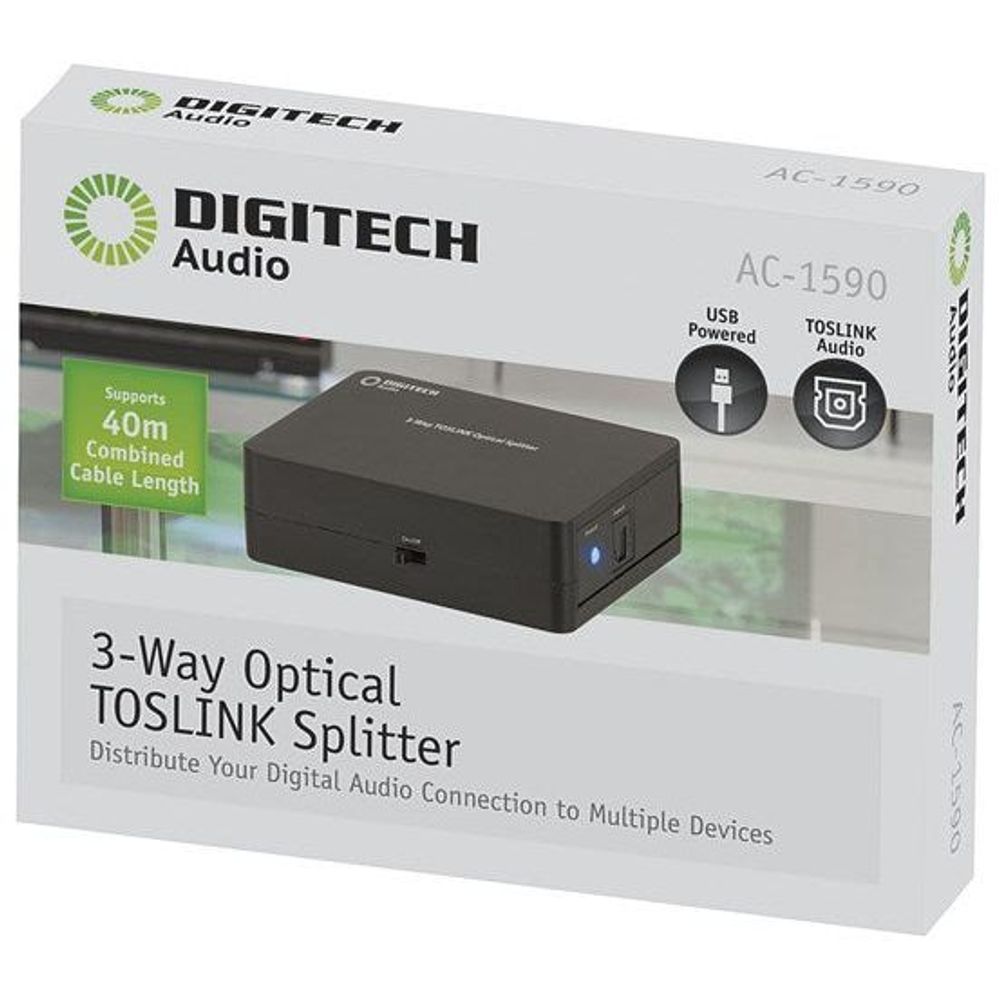

AC1590
- Inputs: 1 x TOSLINK (Optical)
- Outputs: 3 x TOSLINK (Optical)
- Frequency: 96KHz
- Baud Rate: 16Mbps
- Audio: LPCM 2.0, DTS, Dolby AC-3
- Supported Cable Length: 40m (Total)

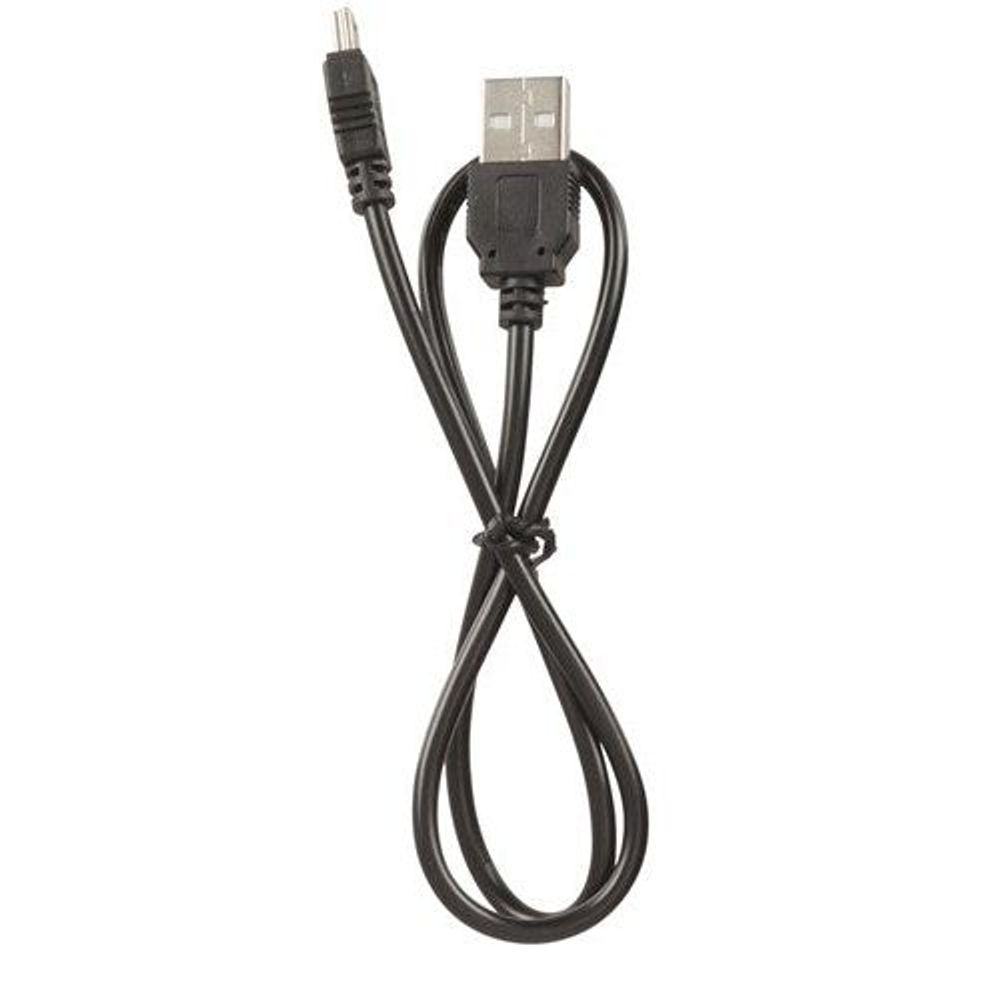

- Power: 5VDC, 500mA (USB Mini B)
- Power Consumption: 200mA (Maximum)
- Dimensions: 60(W) x 54(D) x 20(H)mm
Specifications
Specifications
Digital Audio Format : LPCM 2.0DTSDolby AC-3 |
Maximum Signal Frequency : 96kHz |
Baud Rate : 16Mb/s |
Width : 62mm |
Height : 21mm |
Depth : 58mm |
PSU Powers : Main Product |
DC Plugpack Voltage : 5V |
DC Current Draw : 500mA |
Packaged Volume : 0.35l |
Packaged Weight : 0.09kg |
Packaged Length : 13.5cm |
Packaged Width : 2.5cm |
Packaged Height : 10.5cm |
Switcher/Converter Type : Distribution Amplifier Splitter |
Input type : Digital Audio |
Input Connection : TOSLINK |
Number of inputs : 1pc |
Output Type : Digital Audio |
Output Connection : TOSLINK |
Number of Outputs : 3pc |
Power Requirement : External Power Required |
Maximum Total Cable Length (all in and out) : 40m |
Availability : Stocked item |
