AB3456 - Dual Sound Piezo Buzzer 1-13VDC
AB3456 - Dual Sound Piezo Buzzer 1-13VDC
AB3456 - Dual Sound Piezo Buzzer 1-13VDC
AB3456 - Dual Sound Piezo Buzzer 1-13VDC
AB3456 - Dual Sound Piezo Buzzer 1-13VDC
AB3456 - Dual Sound Piezo Buzzer 1-13VDC
AB3456 - Dual Sound Piezo Buzzer 1-13VDC
AB3456 - Dual Sound Piezo Buzzer 1-13VDC

AB3456 - Dual Sound Piezo Buzzer 1-13VDC

AB3456

$11.90

Tax included.

Select quantity
Description

AB3456

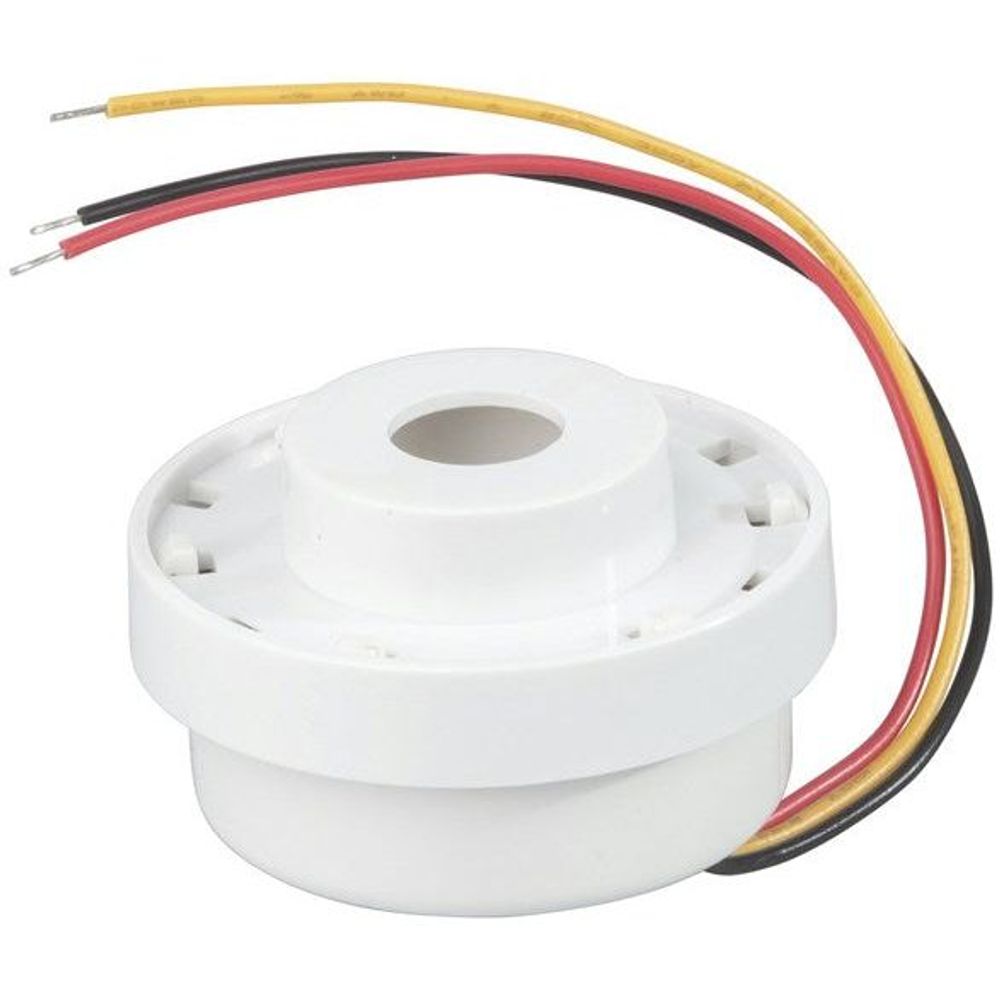

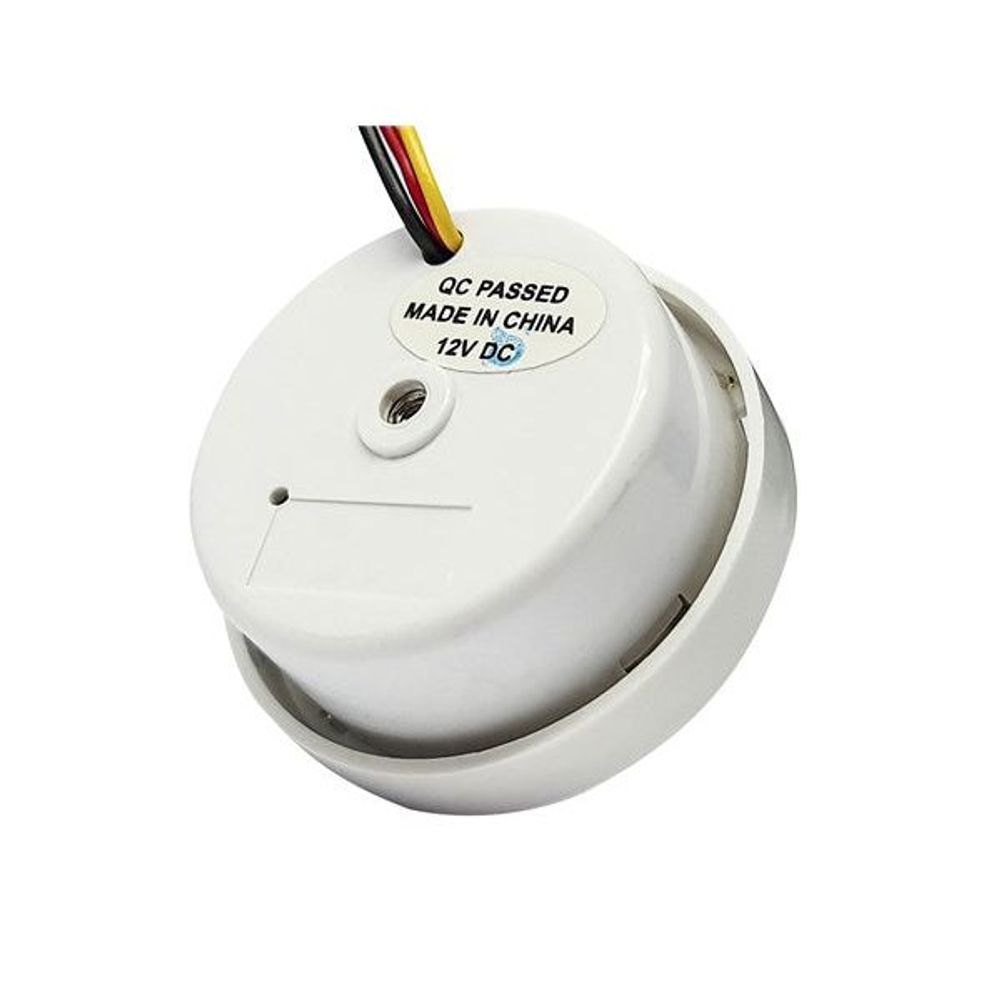

Similar to Sonalert earpiercing sound. Non inductive, operates from 1V - 13VDC. Now with both continuous tone and pulsed tone. Red and black for continuous, yellow and black for pulse tone. Ideal for almost all signalling applications.

Features:
  • Sound Pressure Level: 105dB/30cm single 100dB/ 30cm pulse
  • Pulse Rate: 2 - 7 pulses per second
  • Mounting: 1 x 3mm screw surface mount





Specifications





Specifications

Height : 26mm
Diameter : 45mm
Packaged Volume : 0.05l
Packaged Weight : 0.02kg
Packaged Length : 4.5cm
Packaged Width : 4.5cm
Packaged Height : 2.5cm
Buzzer Type : Piezo
Buzzer Operating Voltage : 1V, 13V
Rated Voltage : 12v
Buzzer Current : 35mA
Buzzer Frequency : 2.9kHz
Pulsing Buzzer : true
Availability : Stocked item
Warranty
Brand

Digitech

Restock ETA (if applicable)
AB3456 - Dual Sound Piezo Buzzer 1-13VDC
AB3456 - Dual Sound Piezo Buzzer 1-13VDC
AB3456 - Dual Sound Piezo Buzzer 1-13VDC
AB3456 - Dual Sound Piezo Buzzer 1-13VDC

Product Details

Specifications

  • Digitech

  • HeadingAB3456 - Dual Sound Piezo Buzzer 1-13VDC

Description

AB3456

Similar to Sonalert earpiercing sound. Non inductive, operates from 1V - 13VDC. Now with both continuous tone and pulsed tone. Red and black for continuous, yellow and black for pulse tone. Ideal for almost all signalling applications.

Features:
  • Sound Pressure Level: 105dB/30cm single 100dB/ 30cm pulse
  • Pulse Rate: 2 - 7 pulses per second
  • Mounting: 1 x 3mm screw surface mount





Specifications





Specifications

Height : 26mm
Diameter : 45mm
Packaged Volume : 0.05l
Packaged Weight : 0.02kg
Packaged Length : 4.5cm
Packaged Width : 4.5cm
Packaged Height : 2.5cm
Buzzer Type : Piezo
Buzzer Operating Voltage : 1V, 13V
Rated Voltage : 12v
Buzzer Current : 35mA
Buzzer Frequency : 2.9kHz
Pulsing Buzzer : true
Availability : Stocked item
Brand

Digitech

Warranty
