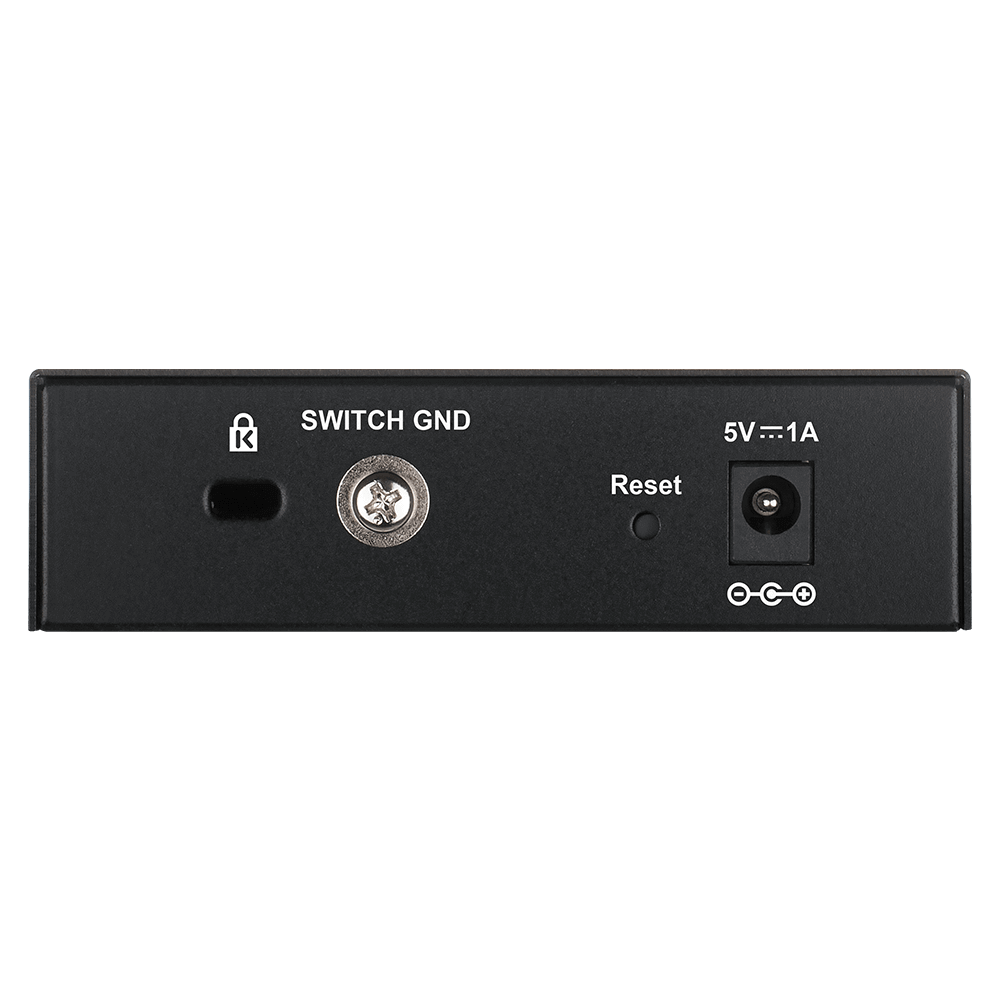

5-Port Gigabit Smart Managed Switch

DGS-1100-05V2

Powerful and ﬂexible networking solution for small, medium, and enterprise businesses.

5 x 10/100/1000BASE-T ports
Compact design for convenient placement
Fanless design for silent operation
Innovative D-Link Green energy sAVing features
Complete web interface for comprehensive Switch management

Specifications

Port-based Bandwidth Control	Yes
Class of Service (CoS)	Yes
802.3x Flow Control	Yes
Head-of-line (HOL) Blocking Prevention	Yes
Store-and-Forwarding	Yes
Comply with RoHS 6	Yes
Energy Efficiency Ethernet (EEE)	Yes
Auto MDI/MDIX	Yes
1000Base-T Interface	5
10/100/1000BASE-T ports	5
CPU Speed	62.5 MHz
DRAM Size	48K Bytes
Flash Memory Size	2 MB
Packet Buffer Size	1 Mbits
FAN	Fanless
Jumbo Frame	9216 bytes
Loopback Detection (LBD)	Yes
MAC Address Table Size	2112
IGMP Snooping	Yes
Max IGMP Snooping Groups	128
Max Port Per Link Aggregation Group	4 (static port trunk) Only port 1-4
Link Aggregation Group Per Device	1 (static port trunk)
Web-based GUI	Yes
SNMP	Yes
SNMP Trap	Yes
D-Link Discover Protocol (DDP)	Yes
DHCP/BootP Client	Yes
D-Link Network Assistant	Yes
Port Mirroring	Yes
Cable Diagnostics	Yes
Switch Capacity	10 Gbps
Max. Packet Forwarding Rate	7.44 Mpps
Rate Limiting	Yes
Power Input	AC：100 ~ 240 V (5V/1A power adapter)
Number of Queue	4
Queue Handling	Yes
Weighted Round Robin (WRR)	Yes
Strict Priority Queue (SPQ)	Yes
Port Security	Yes
Broadcast/Multicast/Unicast Storm Control	Yes
Traffic Segmentation	Yes
802.1w Rapid Spanning Tree (RSTP)	Yes
802.1D Spanning Tree (STP)	Yes
Surge/Lightning Protection (All Ethernet Ports)	1Kv
Surge/Lightning Protection (AC Power Inet)	2kV
802.1Q VLAN	Yes
VLAN Groups	32
Port-based VLAN	Yes
Surveillance VLAN	Yes
Voice VLAN	Static Voice VLAN only
Asymmetric VLAN	Yes
Maximum Heat Dissipation	11.67 BTU/hr
Acoustic	0 dB
Dimension	100.5 × 82 × 28 mm
Maximum Power Consumption	3.42 W
MTBF	1,562,055 hours
Operating Altitude	2000m
Operation Humidity	0% ~ 90% RH
Operation Temperature	0 ~ 40 °C
Standby Power Consumption	1.39 W
Storage Humidity	0% ~ 95% RH
Storage Temperature	- 40 ~ 70 °C
Weight	0.23 kg
