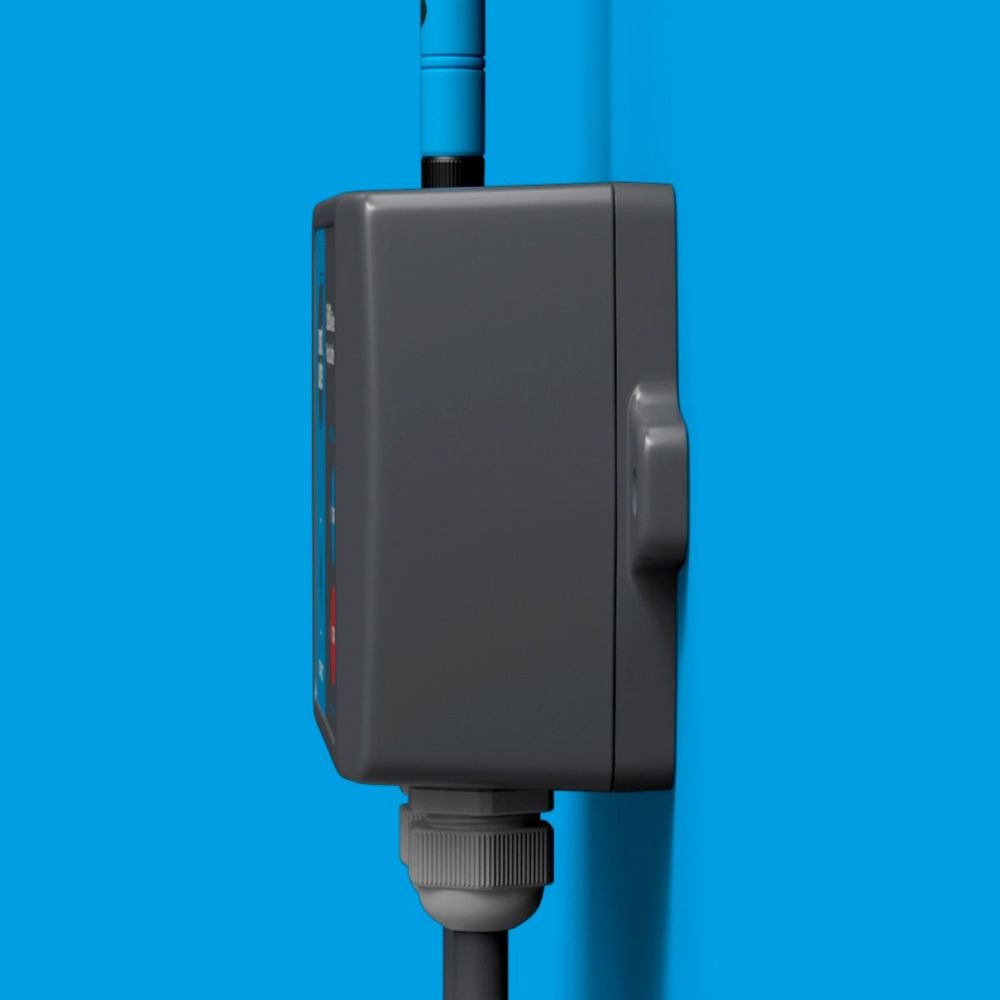

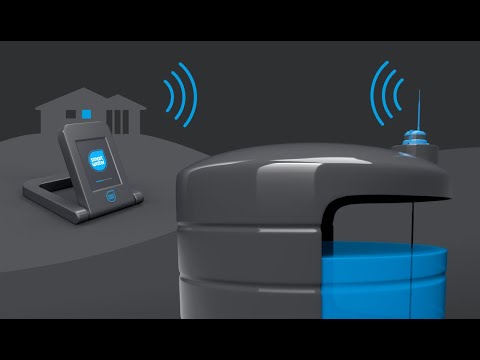

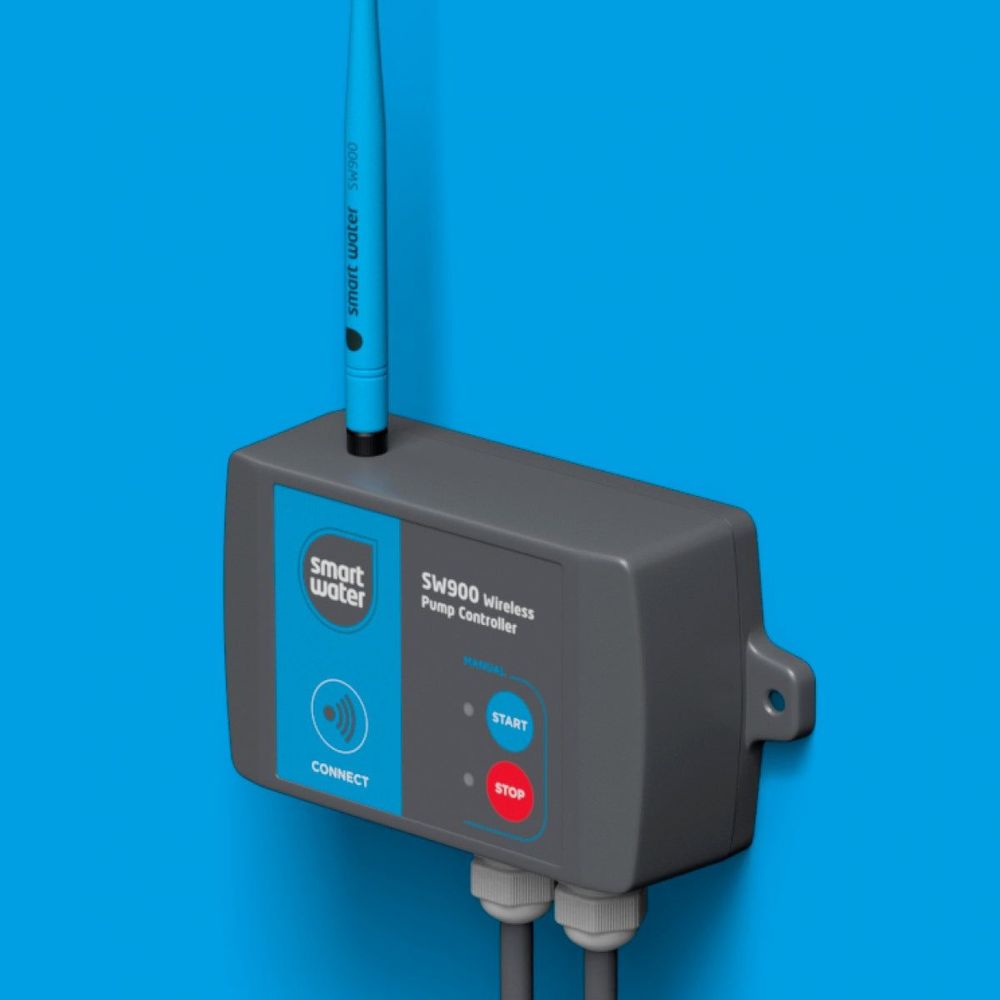

The Wireless Pump Controller is the perfect accessory if you want to control pumps remotely using your Smart Water system. Customised start/stop levels can be set directly via the WiFi LCD Keypad or WiFi Gateway, and also via the free iOS/Android app. Fully automatic "plug and play" pump operation is now possible with endless possibilities through the suite of options and settings that are offered. This is the change-over version rated at 12VDC.

Key Features

• 230VAC, 12VDC and Change-Over (C/O) versions available
• Convenient wall mounting enclosure
• Long range wireless performance, tested up to 10km
• Up to 12 pump controllers can be added to a single system
• Name your pump controllers for ease of identification
• Fully programmable automatic pump operation
• Pump from tank to tank, or from an infinite source such as a bore
• Real-time clock functionality
• Range can be extended using the Active Repeater
• Controllable with the free App available on iOS and Android devices
• Simple DIY installation (12VDC versions) and operation

Specifications

• Powerful LoRa wireless technology offering range of up to 10km
• Wall mounting enclosure with marine grade ABS construction
• Weather resistant and IP65 rated
• 12VDC Input/output relay version
• 12VDC 25A Resistive contact rating (6370VA switching power)
• 208mm Dipole antenna with SMA connector
• Gold plated SMA female antenna connector
• Mounting kit included

Data Sheets

Delivery

Expected delivery times:
- North Island 1-4 workings days
- South Island 2-5 working days
