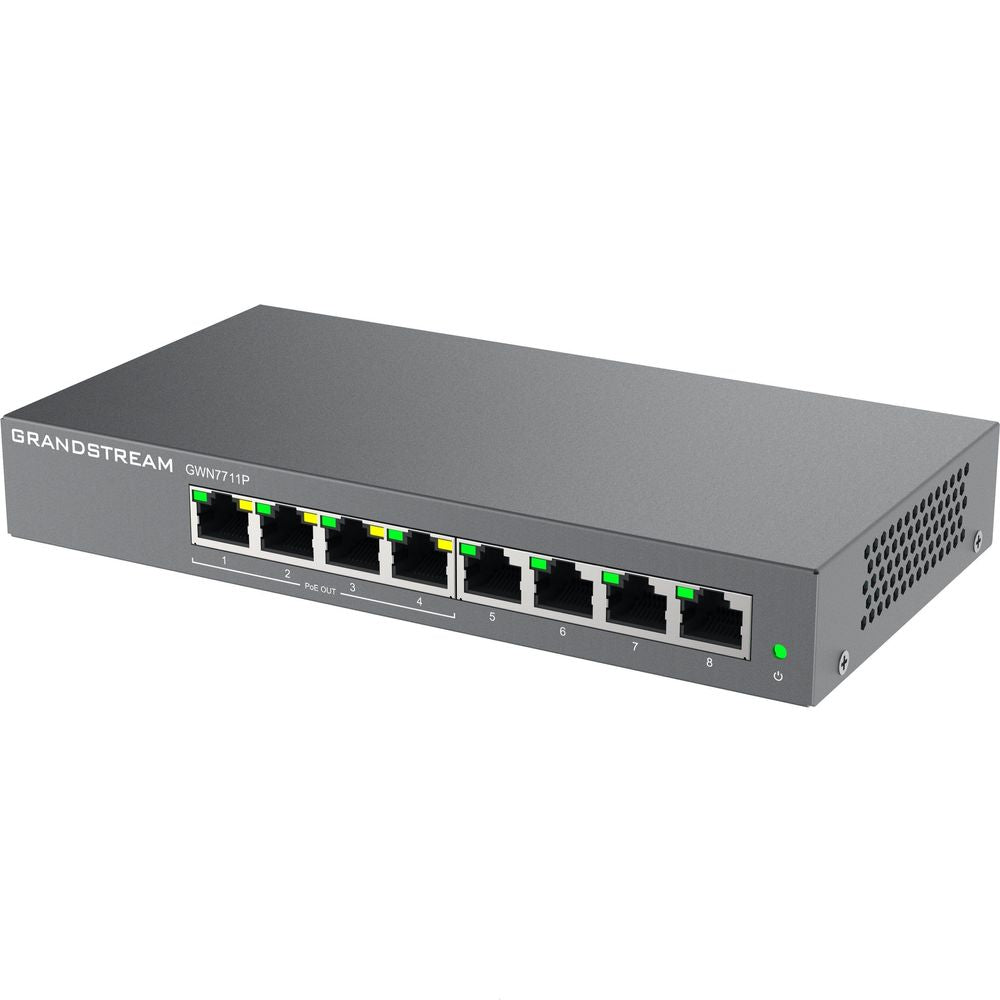

Name: GWN7711P - Grandstream GWN7711P Layer 2-Lite Managed Switch, 8 x GigE (4 x PoE/PoE+ or +24VDC Output
Brand: Grandstream Networks
SKU: GWN7711P
Price: 128.80 NZD
Availability: InStock

GWN7711P - Grandstream GWN7711P Layer 2-Lite Managed Switch, 8 x GigE (4 x PoE/PoE+ or +24VDC Output

GWN7711P

$128.80

Tax included.

In stock, ready to be shipped

Select quantity

Expected delivery date Friday, April 18 and Wednesday, April 23. if ordered today - (Wednesday, April 16).

Description

Grandstream GWN7711P Layer 2-Lite Managed Switch, 8 x GigE (4 x PoE/PoE+ or +24VDC Output. The GWN7711 series are Layer 2 Lite managed network switches that allow small-to-medium businesses to build scalable, secure, and smart business networks that are easy to use and cloud manageable.

They support VLAN for flexible and sophisticated traffic segmentation, QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

The GWN7711P provides 4 PoE ports for smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. This PoE-capable model also supports 24V DC passive PoE-out mode.

The GWN7711 Series are easy to manage through the local web user interface and the cloud using the Grandstream Device Management System (GDMS). By supporting both desktop and wall mount installation, these Layer 2 Lite switches are suitable for hotels, home offices, small-to-medium businesses, and more. Thanks to a comprehensive suite of customizable switching features, available 24V DC passive PoE mode, and easy cloud management, the GWN7711 series are the ideal managed network switches for small-to-medium sized deployments.

Features

8 Gigabit Ethernet ports
Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
supports Loop Detection, Cable Test and Port Mirror to quickly locate network faults
Whisper Quiet: fan-less
Convenient and intelligent management through the Web UI and the cloud (GDMS)
Broadcast/Multicast/Unicast Storm Control to monitor traffic levels
Built-in QoS allows for prioritization of network traffic

Details
Manufacturer's Code	GWN7711P
Network Protocol	IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Gigabit Ethernet Ports	8
PoE Out Ports	4
Power Supply	External 5VDC/0.6A External 48-53.5VDC/1.22A
PoE Output	Port 1-4 support 802.3af/at standard PoE out: Up to 30W per port PoE out, total 60W Power Budget, Port 1-4 support 24VDC Passive mode via UI, Port 1 (up to 30W): 24V 4 pair VH mode 1.3A, 4 pair VH mode Pins: 1,2,4,5 (+); 3,6,7,8 (-), Port 2-4 (up to 15W): 24V 2 pair mode, 0.65A, 2 pair normal mode Pins: 4,5 (+); 7,8 (-)
Max Total PoE Output Power	60W
Maximum Output Power per PoE Port	30W
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	Store-and-forward
Total non-blocking throughput	8Gbps
Switching Capability	16Gbps
Jumbo Frame	2K/3K/4K/5K/6K/7K/8//9K/12K/15K
Forwarding Mode	11.9Mpps
Packet Buffer	4Mb
MAC	8K MAC address capacity, support MAC address search
VLAN	4K VLANs, Port-based VLAN, 802.1Q VLAN
LAG	4
Multicast	IGMP Snooping, Report Message Suppression
QoS	Auto prioritization of the incoming port of the packet, Priority Mapping, Queue scheduling, including SP, WRR, WFQ, supports port priority, 802.1p priority and DSCP priority, Bandwidth control, Storm control, Rate limit
DHCP	DHCP client
Maintenance	Backup and restore, system reboot, factory reset, firmware upgrade, monitoring including port statistics, port mirroring, cable test and loop prevention, ping and pong watchdog
Security	Storm control, Port VLAN isolation, Filtering MAC adress, Kensington Security Slot (Kensington Lock) support
Mounting	Desktop/Wall-mount
LED Indicators	Per Port: Link/Activity - Green, GWN7711P Port 1-4: PoE power state - Yellow, Per Device: Power - Green
Environmental	Operating Temperature: 0 to 40 °C (32 to 104 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing
Dimensions	Unit: 190 x 100 x 28mm, Package: 230 x 210 x 51mm
Enclosure	Metal
Weight	Unit: 0.44kg, Entire Package: 0.92kg
Compliance	FCC, CE, RCM, IC

Details
Included	1x Switch, 1x QIG, 1x Power Adapter

Specifications

Details
Manufacturer's Code	GWN7711P
Network Protocol	IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Gigabit Ethernet Ports	8
PoE Out Ports	4
Power Supply	External 5VDC/0.6A External 48-53.5VDC/1.22A
PoE Output	Port 1-4 support 802.3af/at standard PoE out: Up to 30W per port PoE out, total 60W Power Budget, Port 1-4 support 24VDC Passive mode via UI, Port 1 (up to 30W): 24V 4 pair VH mode 1.3A, 4 pair VH mode Pins: 1,2,4,5 (+); 3,6,7,8 (-), Port 2-4 (up to 15W): 24V 2 pair mode, 0.65A, 2 pair normal mode Pins: 4,5 (+); 7,8 (-)
Max Total PoE Output Power	60W
Maximum Output Power per PoE Port	30W
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	Store-and-forward
Total non-blocking throughput	8Gbps
Switching Capability	16Gbps
Jumbo Frame	2K/3K/4K/5K/6K/7K/8//9K/12K/15K
Forwarding Mode	11.9Mpps
Packet Buffer	4Mb
MAC	8K MAC address capacity, support MAC address search
VLAN	4K VLANs, Port-based VLAN, 802.1Q VLAN
LAG	4
Multicast	IGMP Snooping, Report Message Suppression
QoS	Auto prioritization of the incoming port of the packet, Priority Mapping, Queue scheduling, including SP, WRR, WFQ, supports port priority, 802.1p priority and DSCP priority, Bandwidth control, Storm control, Rate limit
DHCP	DHCP client
Maintenance	Backup and restore, system reboot, factory reset, firmware upgrade, monitoring including port statistics, port mirroring, cable test and loop prevention, ping and pong watchdog
Security	Storm control, Port VLAN isolation, Filtering MAC adress, Kensington Security Slot (Kensington Lock) support
Mounting	Desktop/Wall-mount
LED Indicators	Per Port: Link/Activity - Green, GWN7711P Port 1-4: PoE power state - Yellow, Per Device: Power - Green
Environmental	Operating Temperature: 0 to 40 °C (32 to 104 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing
Dimensions	Unit: 190 x 100 x 28mm, Package: 230 x 210 x 51mm
Enclosure	Metal
Weight	Unit: 0.44kg, Entire Package: 0.92kg
Compliance	FCC, CE, RCM, IC
