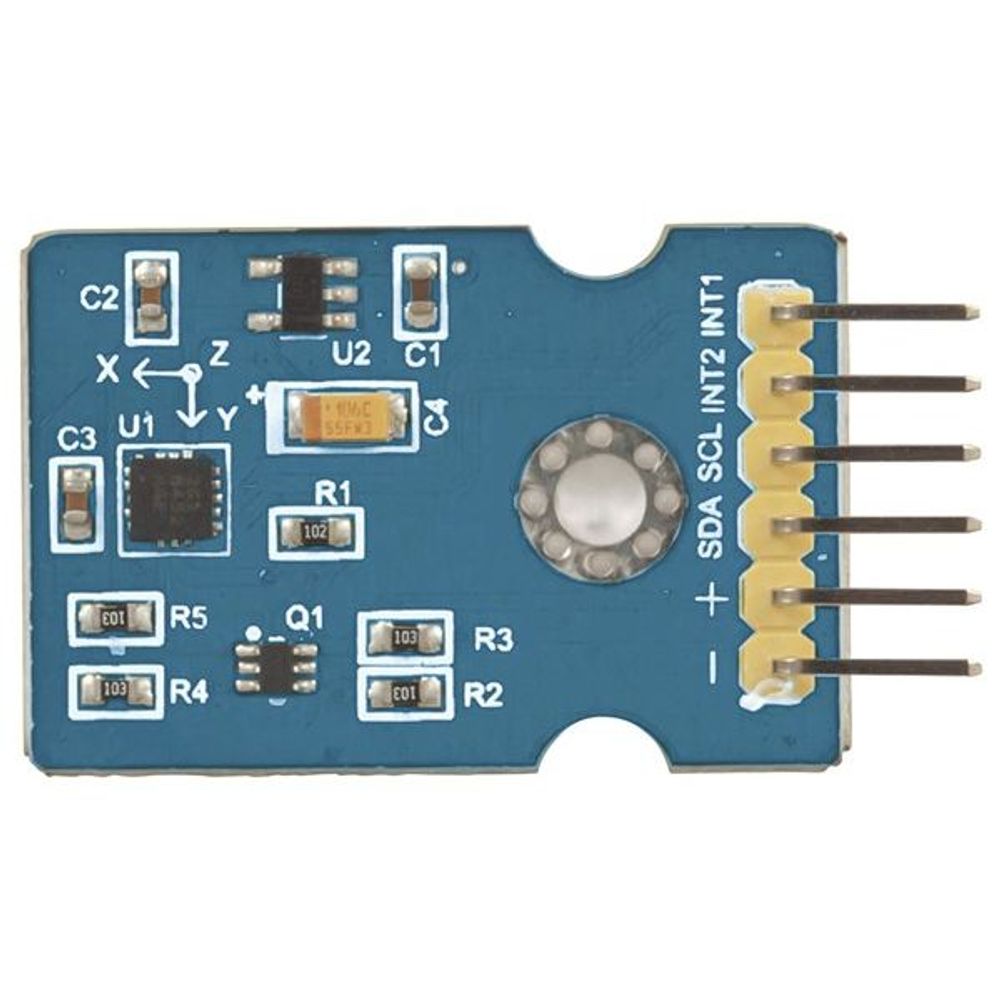

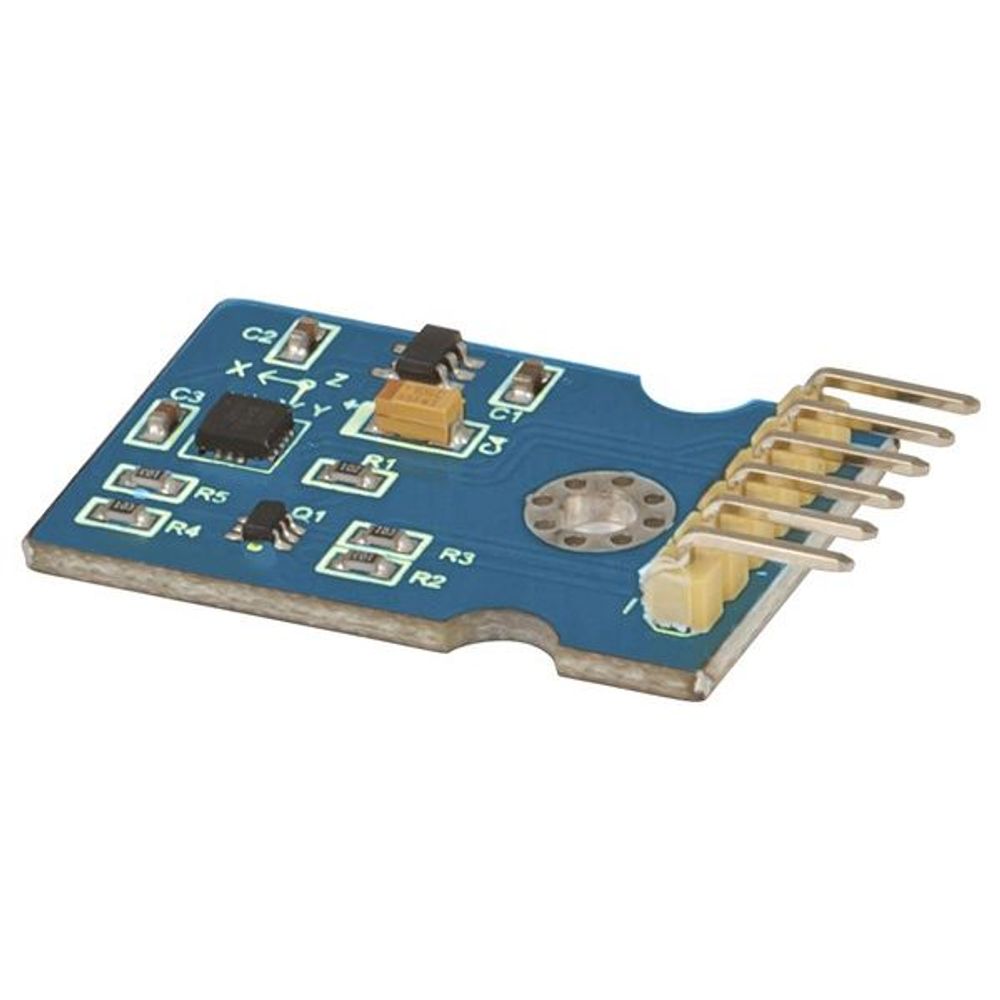

Use this high performance acceleration sensor module in your project to detect direction (transverse/longitudinal), as well as free fall, pulse, and shake detection. The on-board MMA8452Q is a smart low-power, three-axis, capacitive micromachine acceleration sensor with 12-bit resolution. Users are able to set a range of ±2g, ±4g, or ±8g, which can output high-pass filtering data and non-filtered data in real-time. An embedded function can also be used to generate an inertial wake-up interrupt signal, which enables MMA8452Q to maintain a low-power mode in the static state while monitoring the event.

Features:

Specifications:

• Interface Voltage: 1.6V to 3.6V
• Optional Dynamic Range: ±2g/±4g/±8g
• Output Data Rate (ODR) Range: 1.56Hz to 800Hz
• Noise: 99?g/?Hz
