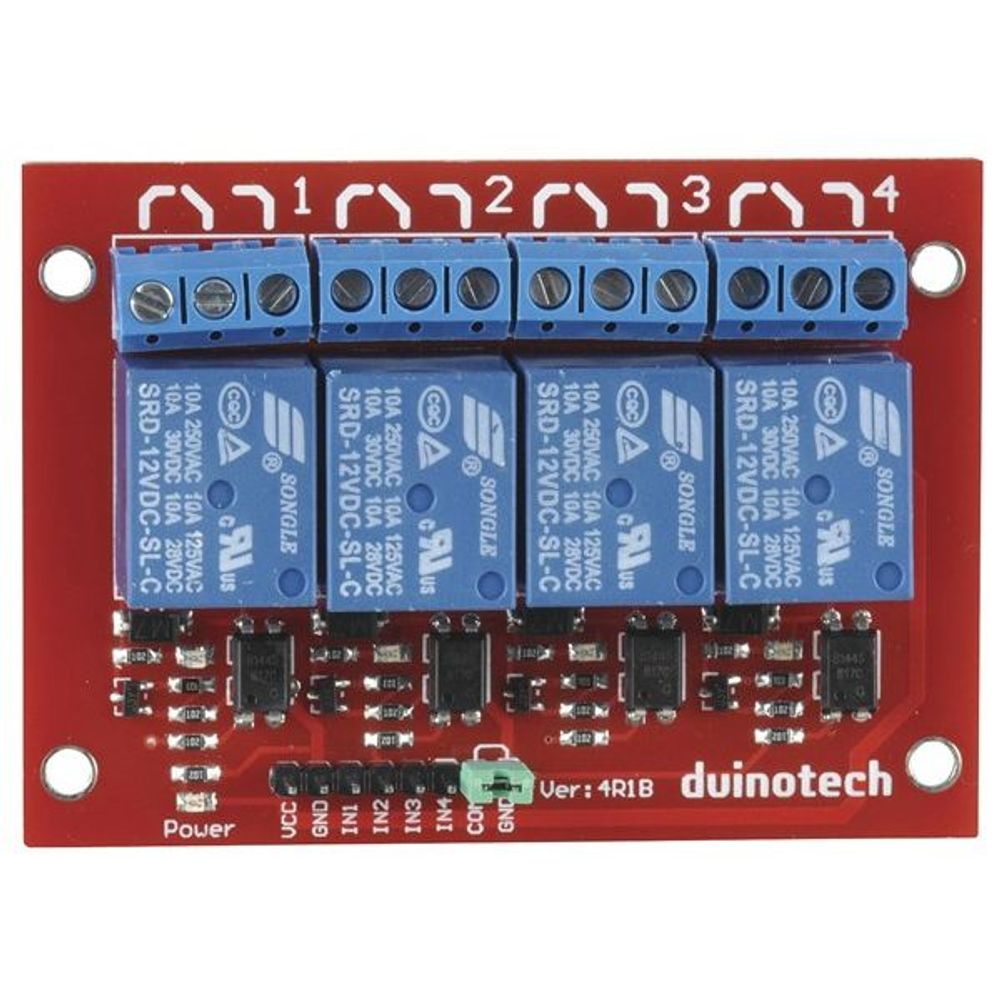

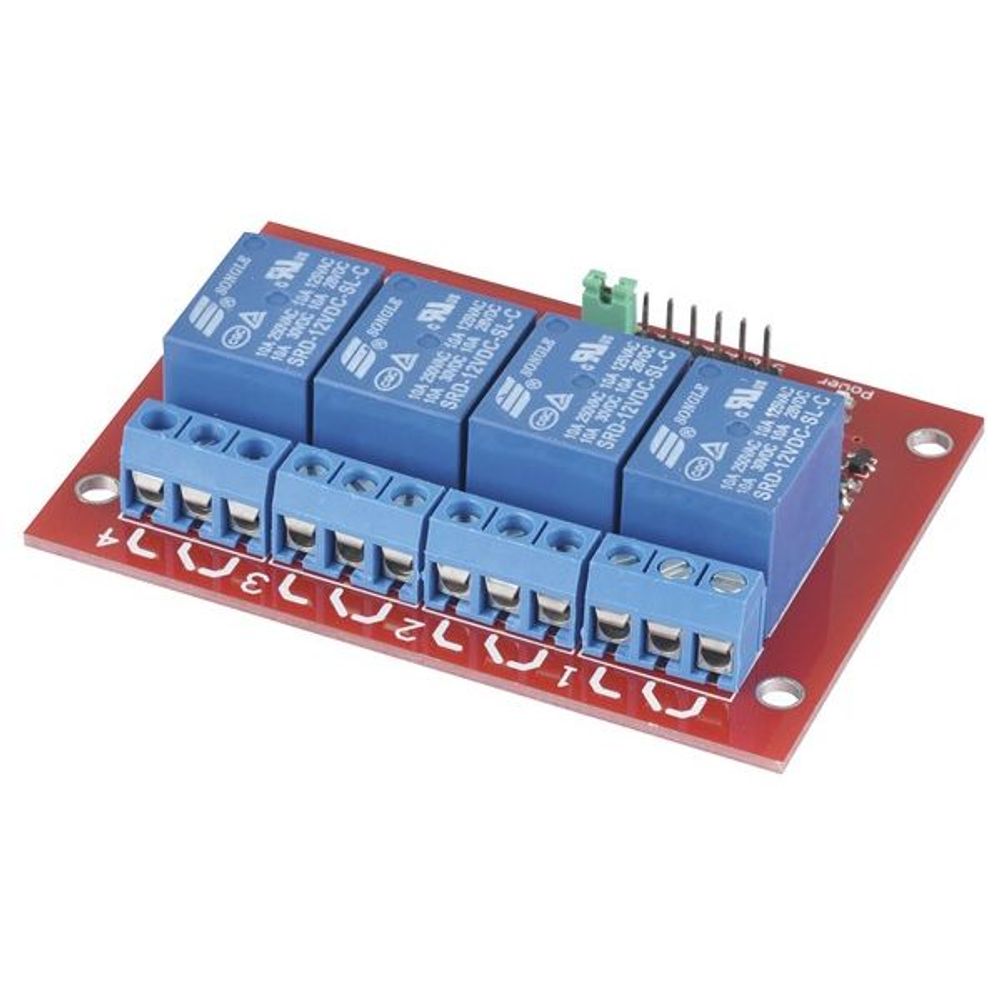

XC4440 - Arduino Compatible 4 Channel 12V Relay Module
XC4440 - Arduino Compatible 4 Channel 12V Relay Module
XC4440 - Arduino Compatible 4 Channel 12V Relay Module
XC4440 - Arduino Compatible 4 Channel 12V Relay Module
XC4440 - Arduino Compatible 4 Channel 12V Relay Module

XC4440 - Arduino Compatible 4 Channel 12V Relay Module

XC4440

$17.90

Tax included.

In stock, ready to be shipped
Select quantity
 More payment options
Add to Wishlist

Expected delivery date  Tuesday, April 22 and Friday, April 25. if ordered today - (Friday, April 18).
Description

XC4440

Arduino® Compatible


Available in one, four and eight channel versions, these modules can switch up to 10A per channel. Includes back-EMF (ElecroMagnetic Frequency) protection and LEDs so you can easily see the state of the outputs. The four and eight channel versions even have optical isolation to protect your main board. The one channel version operates directly from 5V.

Features:

•    Status LEDs show channel status
•    Active High logic
•    Screw terminals for easy connection to relay contact.
•    SPDT Relays
•    Current Ratings:
          10A @ 250VAC
          10A @ 30VDC
•    Four mounting holes on each module


Cat No. Channels Supply Voltage Optical Isolation Dimensions
XC4419 1 5VDC NO 40(W) x 27(D) x 18(H)mm
XC4440 4 12VDC YES 77(W) x 55(D) x 17(H)mm
XC4418 8 12VDC YES 135(W) x 50(D) x 19(H)mm





Specifications





Specifications

Width : 135mm
Height : 19mm
Depth : 50mm
Packaged Volume : 0.31l
Packaged Weight : 0.07kg
Packaged Length : 12.9cm
Packaged Width : 11cm
Packaged Height : 2.2cm
Required Supply Voltage : 5V, 12V
Availability : Stocked item
Warranty
Brand

Arduino
