Description

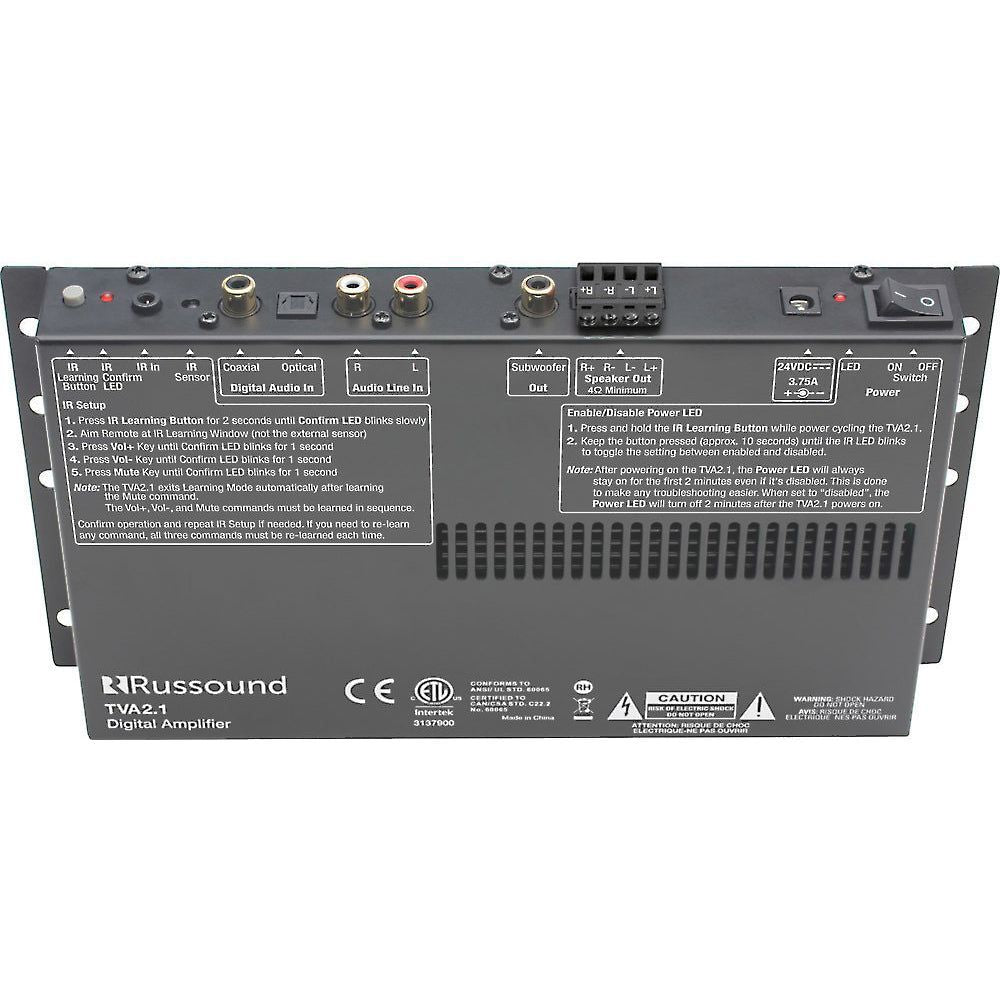

Digital Two-Channel Amplifier with IR learning and Sub Out

Russound Digital Two-Channel Amplifier is thin footprint means the TVA2.1 can be hidden behind the television or mounted in an in-wall panel behind a television for convenience. The built-in IR learning function eliminates the need for an external control system. This can dramatically reduce the cost of adding additional rooms of audio to a home and keeps the operation simple and intuitive for the homeowner by letting them use their current remote control device.

The TVA2.1 features three input options for flexibility. A traditional analog RCA line level input, and both Digital Coax and Optical S/PDIF. The TVA2.1 supports up to 24bit/96khz digital audio in a PCM stereo format.

Features
Class-D amplifier 2 x 30W RMS into 8ohm
24-bit/96kHz S-PDIF support
S-PDIF, Optical and Analog Line Level inputs
4-pole Speaker Detachable Screw connector and line level Subwoofer output
IR Learning for basic volume control. IR remote control support
Small Footprint with mounting options for discreet installation
External 24v Power Supply
Specifications
Shipping Dimensions: 11.6? (W) x 5.0? (H) x 7.5? (D) (29.5 x 12.7 x 19.1 cm)
Shipping Weight: 2.0 lbs (0.9 kg)
Amplified Channels: 2
Frequency Response: 40Hz to 20KHz +/- 1dB, 20Hz -3dB, Sub Out: -3dB at 170Hz
Input Impedance: 22K
Line Output: Subwoofer
Power Output: Continuous Stereo: 30 watts per channel at 8 ohms <1% THD+N
Power Requirement(s): 27 VDC 4.0A (External D235PS Power Supply)
Signal to Noise Ratio: >90dB 20Hz to 20KHz
Total Harmonic Distortion: 1% (1KHz @ 1W)
