Description

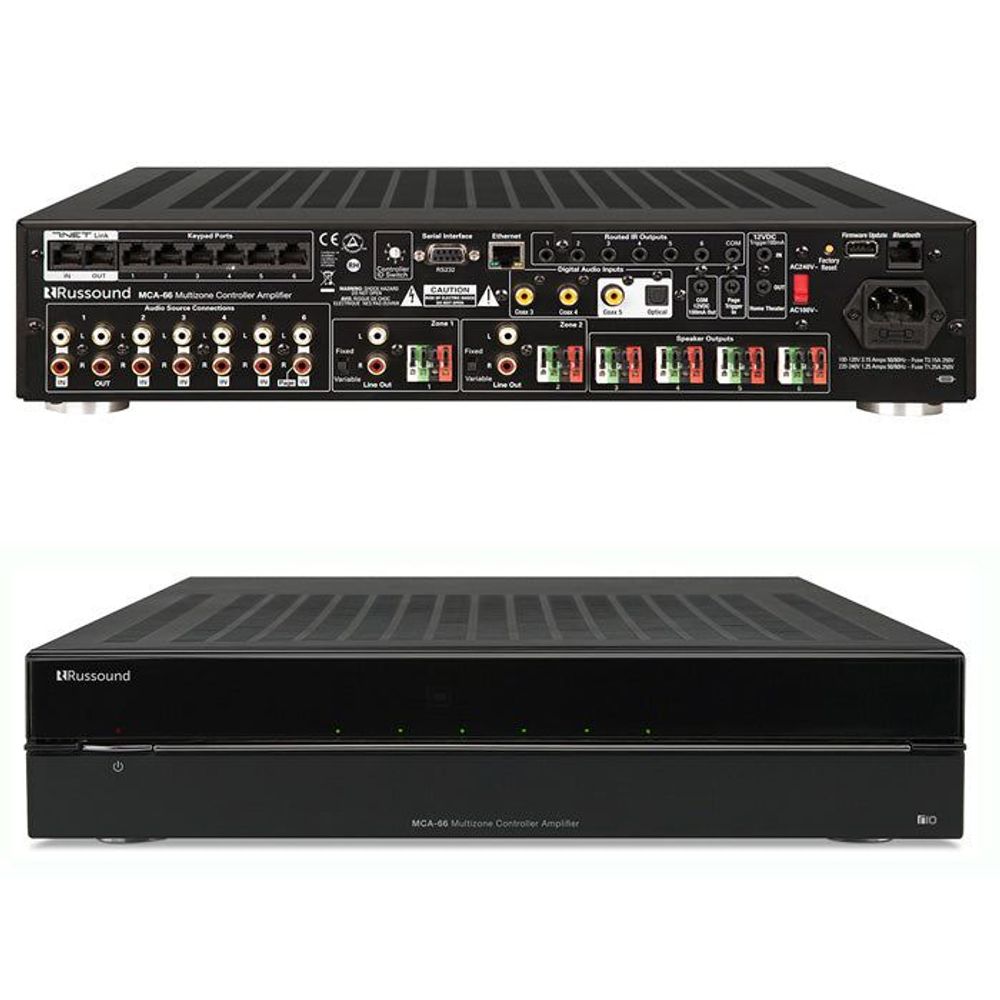

Multizone Controller Amplifier 6 Source, 6 Zone MCA-66

The MCA-66 Multizone Controller Amplifier features 6 zones of high quality amplification, providing 20 watts of power per channel. Zones 1 and 2 are equipped with fixed or variable line-level outputs for outboard amplification, wireless expansion or subzone use. Additionally, an RS-232 port for integration with serial-connected home automation systems is available for utilization on the rear panel of the MCA-66.

Note: The MCA-66 is part of the Russound Certified Installer Required Program and can only be installed and configured by a Russound Certified Installer.

Features
6 Amplified Zones @20W/ch
Fixed/Variable Line Out for Zones 1 and 2
Up to 6 Line-Level Stereo Inputs, 3 Digital Coaxial and 1 Optical
RS232 and IP Controllable
Voice Control is available using Amazon Alexa
6 Routed IR Outputs, plus 1 Global IR Output
Expandable to up to 36 Zones
Supports Bluetooth® with Optional BTC-1X
Supports KNX® with Optional KNX-RIO-1
Specifications
Audio Output(s): 6 Speaker Level 20W/ch (2 Line Level, fixed or variable selectable)
Audio Source Inputs: 6 stereo RCA Line-Level, 3 coax, 1 optical (maximum of 6 total inputs)
Communication Ports: USB (firmware update only) 1 Serial RS-232, 19.2 kHz baud rate 1 Ethernet RJ-45, 10/100 Base T 2 RJ-45 RNET Links In/Out
Frequency Response: 20Hz-20kHz +/- 1 dB at 1W output into 8 ohms
IR Outputs: 6 routed, 1 common
Keypad Ports: 6 detachable 4 pole connectors
Paging Trigger: In, 12VDC
Power Output: 20W RMS into 8 ohms
Signal to Noise Ratio: 93 dB unweighted, 96 dB A-weighted
Speaker Connection(s): 6 detachable 4 pole connectors
Total Harmonic Distortion: <0.10%
