Description
ARC-1451BT Bluetooth Amp & Speaker Kit

The ARC-1451BT-KIT Bluetooth Amp & Speaker Kit is the perfect solution for permanent audio installations in entertaining areas, and even bedrooms. The kit includes an ARC-1451BT Bluetooth Amp, power adapter, instruction/manual, mounting bracket, and a pair of R650 or R800 speakers.

The ARC-1451BT Bluetooth Amp features an audio amplifier with a built-in Bluetooth receiver, allowing you to power your R650 or R800 speakers with audio from any Bluetooth-enabled device, or other source devices such as computers, DVD players, and TVs. It also includes Toslink, Coaxial and 3.5mm phone jack inputs.

The R650 and R800 speakers feature an edge-less design for seamless blend, 1-inch silk dome swivel NEO tweeter, bumped back basket for high speaker excursion, wider surround for deeper bass and higher speaker excursion, 12 dB/Octave filter network crossover, thermal tweeter protection, custom compact spring loaded terminals, easy to use Turn ‘N’ Lock installation mechanism, and paintable rust-resistant grille.

Arc-1451BT Amp Key Features:
Audio Inputs: Bluetooth receiver or stereo audio line level
Bluetooth Version: Bluetooth v4.2 compliant with aptX
Bluetooth Receive Distance:50 Meters (open space)
Power Source: 24 VDC
Power Amplifier Type: Stereo Class-D
Output power:45W(RMS) per channel (@ RL=4 ohm)
THD+N :0.1 % (@ RL=4 ohm, f = 1 kHz)
Minimum Load Resistance: 4 ohm
Includes Speaker Protection circuit.
Sub out?Line Level(Max)
Bluetooth Blue LED Status: LED state Statement

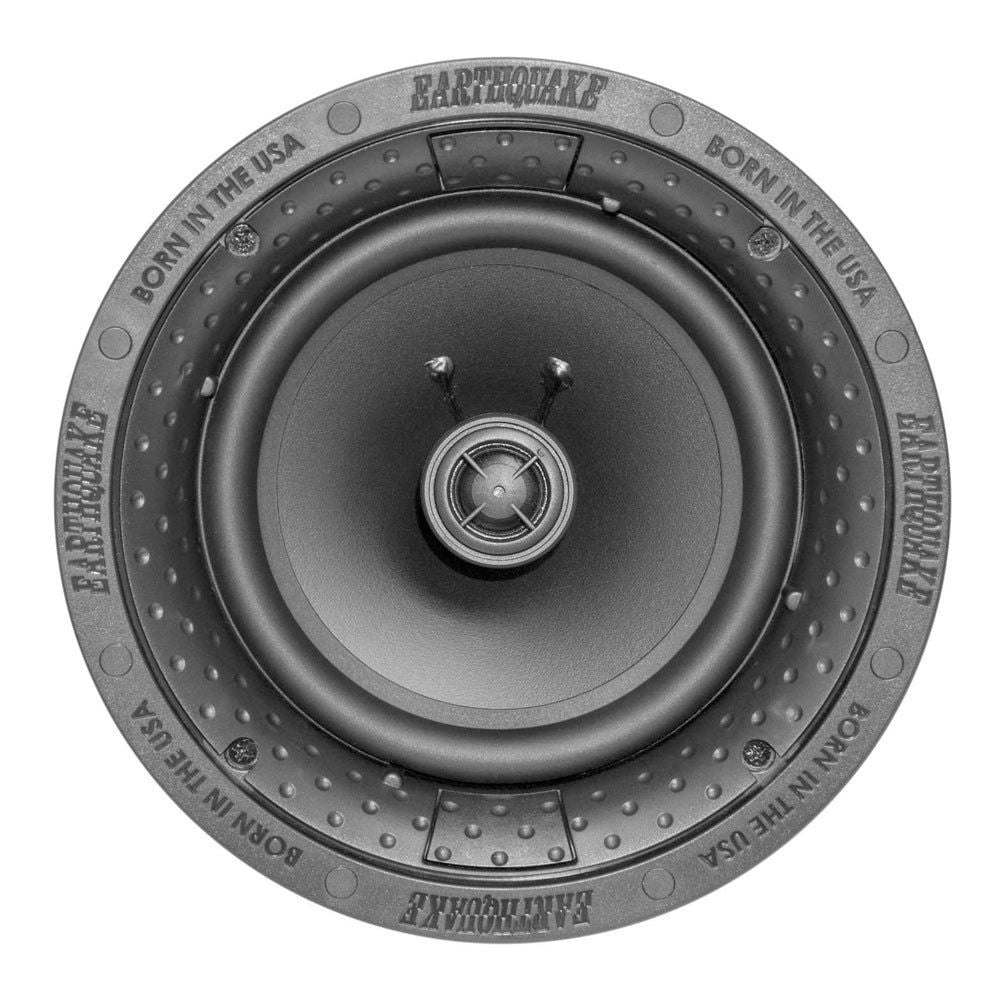

R650 Speakers Features:
Edge-less Design for seamless blend
1-inch silk dome swivel NEO tweeter
Bumped back basket for high speaker excursion
Wider surround for deeper bass and higher speaker excursion
12 dB/Octave filter network crossover
Thermal tweeter protection
Custom compact spring loaded terminals
Easy to use Turn ‘N’ Lock installation mechanism
Paintable rust-resistant grille
Rough-in ready with the RK-EC6
Also available in 6.5? stereo, 8? and 8? stereo models
Overall diameter (with grille): 9? (228mm)
Cut out diameter: 7-7/8? (200mm)
Mounting depth: 4? (101mm)

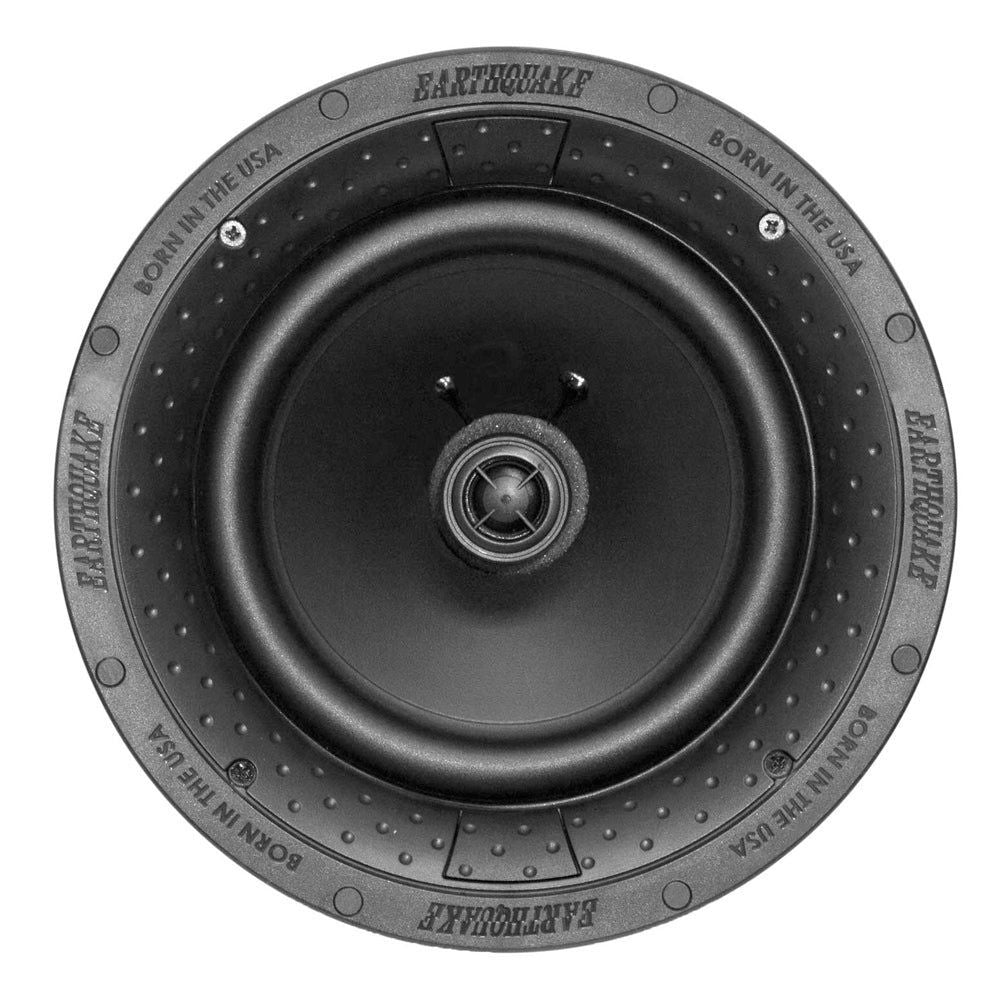

R800 Speakers Features:
Edge-less Design for seamless blend
1-inch silk dome swivel NEO tweeter
Bumped back basket for high speaker excursion
Wider surround for deeper bass and higher speaker excursion
12 dB/Octave filter network crossover
Thermal tweeter protection
Custom compact spring loaded terminals
Easy to use Turn ‘N’ Lock installation mechanism
Paintable rust-resistant grille
Rough-in ready with the RK-EC6
Also available in 6.5? stereo, 8? and 8? stereo models
Overall diameter (with grille): 10-5/8? (270mm)
Cut out diameter: 9-1/2? (240mm)
Mounting depth: 4-9/16? (116mm)
Includes:
1x ARC-1451BT Bluetooth Amp
1 x Power Adapter
1 x Instruction/Manual
1 x Mounting Bracket
1x Pair of R650 or R800 Speakers
