Description

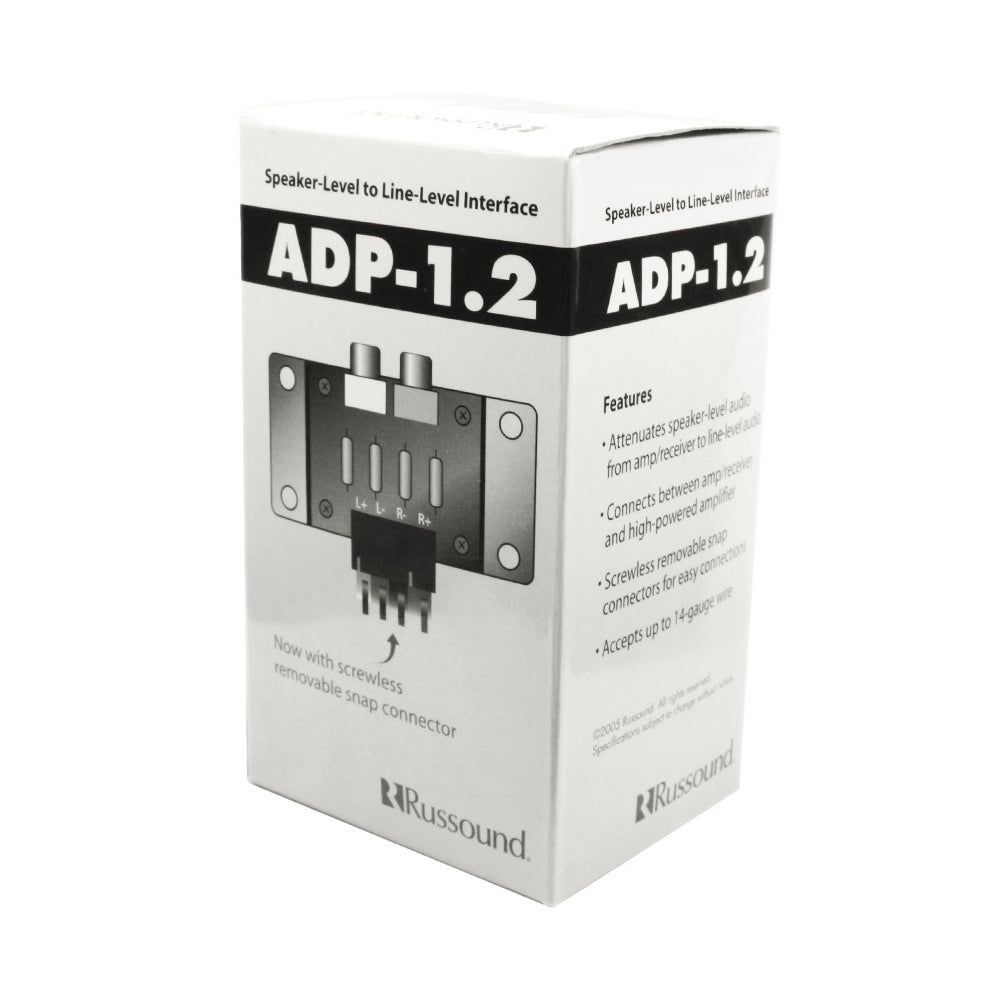

Speaker to line-level adapter

The ADP-1.2 Speaker to Line-Level Adapter from Russound is the perfect solution for connecting your amp/receiver to a high-powered amplifier. This adapter attenuates speaker-level audio to line-level audio, and features color-coded detachable 14-gauge snap connectors for easy connections. It is recommended for use with CAA66 and MCA-66 to obtain line level outputs for zones without pre-amp outputs.

The ADP-1.2 is capable of handling up to 250 W/ch RMS continuous and 500 W/ch peak, and accepts up to 14-gauge wire. It also features screwless removable snap connectors for easy connections, and RCA female output connectors.

Features
Attenuates speaker-level audio from amp/receiver to line-level audio
Connects between amp/receiver and high-powered amplifier
Screwless removable snap connectors for easy connections
Accepts up to 14-gauge wire
Specifications
Power: 250 W/ch RMS continuous, 500 W/ch peak
Attenuation: -30dB
Input Connector: Screwless removable snap connector
Wire Size: Up to 14-gauge wire
Output Connectors: RCA female
Dimensions: 2-1/2 x 3-3/4 inches

Russound
