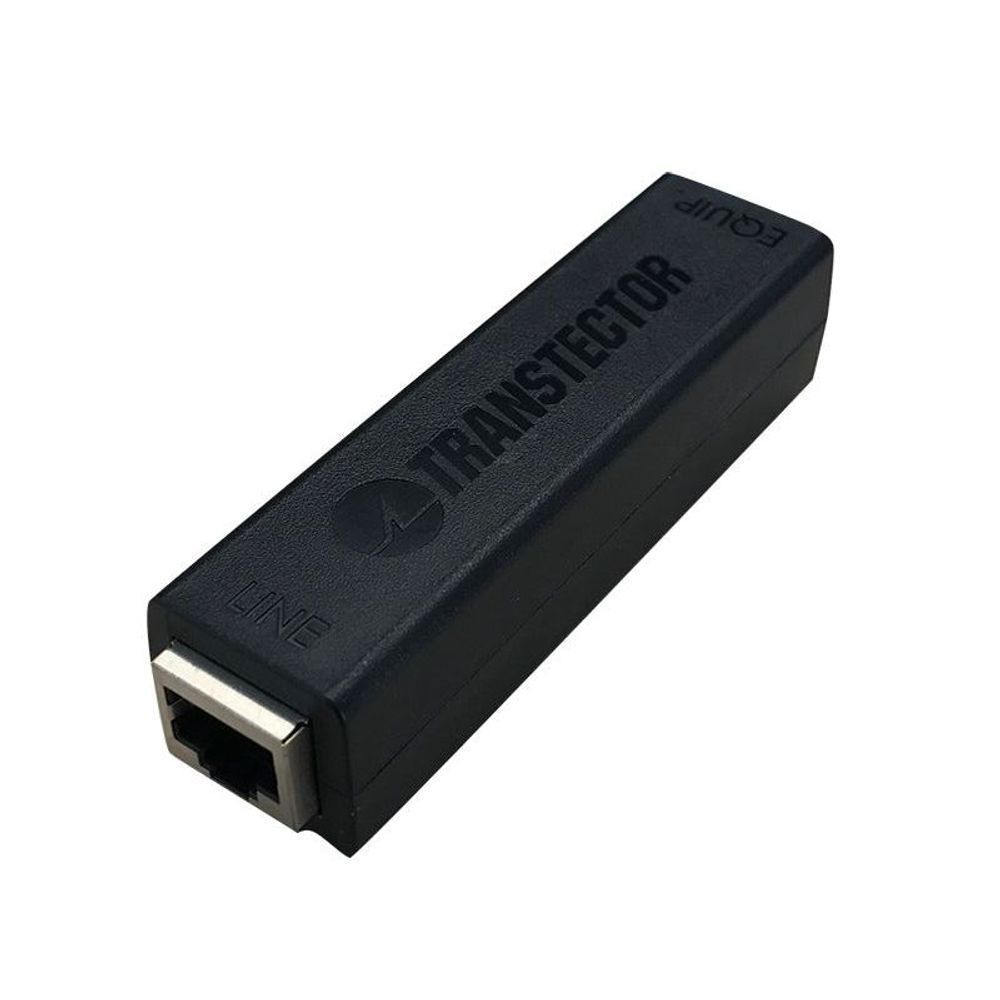

LP-40 - Transtector Gigabit PoE High Power Surge Protector Module DPR-F140

LP-40 - Transtector Gigabit PoE High Power Surge Protector Module DPR-F140

LP-40

$171.35

Tax included.

1 items available
Select quantity
Description
Transtector High Power Gigabit PoE Surge Protector Module DPR-F140. The Transtector DPR Series provides a full range of data line lightning surge protection for Point to Point, Wi-Fi, WISP, backhaul and PoE enabled terminal applications. The DPR product family offers gas tube, SASD and hybrid technology options providing superior cost effective commercial grade surge protection for data speeds up to 1 Gb/s.
Features
  • Multiple data rates and PoE passthrough applications – T1/E1, GbE, PoE, PoE+ and PoE++
  • Cost effective, light weight, easy to install and replace data line surge protection
  • Versatile mounting options – DIN rail, wall or rack mount
  • Snap, click and install/replace – installation takes under a minute
  • Secure ground point through DIN rail clip
  • Shielded RJ45 Jack
  • Mounting hardware included with each product
Details
Manufacturer's Product Code DPR-F140
Connectors RJ45 Cat5e Shielded
Pins Protected (1,2) (3,6) (4,5) (7,8)
Technology Hybrid GDT, SASD
Nominal Voltage 48 Vdc
MCOV 60 Vdc
Surge Suppression <75 Vpk @ 100 A 8/20µs
Dimensions (in) 0.94 x 0.97 x 3.67
Operating Temperature -40°C to +75°C
Standards UL 497B, RoHS, CE, IEC 60950-1
Details





Specifications





Details
Manufacturer's Product Code DPR-F140
Connectors RJ45 Cat5e Shielded
Pins Protected (1,2) (3,6) (4,5) (7,8)
Technology Hybrid GDT, SASD
Nominal Voltage 48 Vdc
MCOV 60 Vdc
Surge Suppression <75 Vpk @ 100 A 8/20µs
Dimensions (in) 0.94 x 0.97 x 3.67
Operating Temperature -40°C to +75°C
Standards UL 497B, RoHS, CE, IEC 60950-1
Warranty
Brand

Transtector

Restock ETA (if applicable)

Product Details

Specifications

  • Transtector

  • HeadingLP-40 - Transtector Gigabit PoE High Power Surge Protector Module DPR-F140

Description
Transtector High Power Gigabit PoE Surge Protector Module DPR-F140. The Transtector DPR Series provides a full range of data line lightning surge protection for Point to Point, Wi-Fi, WISP, backhaul and PoE enabled terminal applications. The DPR product family offers gas tube, SASD and hybrid technology options providing superior cost effective commercial grade surge protection for data speeds up to 1 Gb/s.
Features
  • Multiple data rates and PoE passthrough applications – T1/E1, GbE, PoE, PoE+ and PoE++
  • Cost effective, light weight, easy to install and replace data line surge protection
  • Versatile mounting options – DIN rail, wall or rack mount
  • Snap, click and install/replace – installation takes under a minute
  • Secure ground point through DIN rail clip
  • Shielded RJ45 Jack
  • Mounting hardware included with each product
Details
Manufacturer's Product Code DPR-F140
Connectors RJ45 Cat5e Shielded
Pins Protected (1,2) (3,6) (4,5) (7,8)
Technology Hybrid GDT, SASD
Nominal Voltage 48 Vdc
MCOV 60 Vdc
Surge Suppression <75 Vpk @ 100 A 8/20µs
Dimensions (in) 0.94 x 0.97 x 3.67
Operating Temperature -40°C to +75°C
Standards UL 497B, RoHS, CE, IEC 60950-1
Details





Specifications





Details
Manufacturer's Product Code DPR-F140
Connectors RJ45 Cat5e Shielded
Pins Protected (1,2) (3,6) (4,5) (7,8)
Technology Hybrid GDT, SASD
Nominal Voltage 48 Vdc
MCOV 60 Vdc
Surge Suppression <75 Vpk @ 100 A 8/20µs
Dimensions (in) 0.94 x 0.97 x 3.67
Operating Temperature -40°C to +75°C
Standards UL 497B, RoHS, CE, IEC 60950-1
Brand

Transtector

Warranty
